GitSwarm 2016.3-2 Documentation


Webhooks

Note: Starting from GitSwarm 2016.2:

Project webhooks allow you to trigger an URL if new code is pushed or a new issue is created.

You can configure webhooks to listen for specific events like pushes, issues or merge requests. GitSwarm will send a POST request with data to the webhook URL.

Webhooks can be used to update an external issue tracker, trigger CI builds, update a backup mirror, or even deploy to your production server.

Webhook endpoint tips

If you are writing your own endpoint (web server) that will receive GitSwarm webhooks keep in mind the following things:

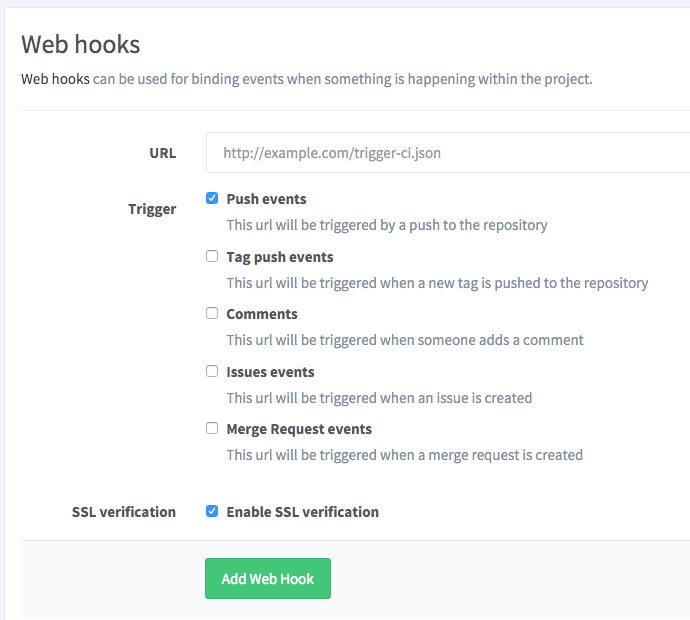

SSL Verification

By default, the SSL certificate of the webhook endpoint is verified based on an internal list of Certificate Authorities, which means the certificate cannot be self-signed.

You can turn this off in the webhook settings in your GitLab projects.

SSL Verification

Push events

Triggered when you push to the repository except when pushing tags.

Request header:

X-Gitlab-Event: Push Hook

Request body:

{
  "object_kind": "push",
  "before": "95790bf891e76fee5e1747ab589903a6a1f80f22",
  "after": "da1560886d4f094c3e6c9ef40349f7d38b5d27d7",
  "ref": "refs/heads/master",
  "checkout_sha": "da1560886d4f094c3e6c9ef40349f7d38b5d27d7",
  "user_id": 4,
  "user_name": "John Smith",
  "user_email": "[email protected]",
  "user_avatar": "https://s.gravatar.com/avatar/d4c74594d841139328695756648b6bd6?s=8://s.gravatar.com/avatar/d4c74594d841139328695756648b6bd6?s=80",
  "project_id": 15,
  "project":{
    "name":"Diaspora",
    "description":"",
    "web_url":"http://example.com/mike/diaspora",
    "avatar_url":null,
    "git_ssh_url":"[email protected]:mike/diaspora.git",
    "git_http_url":"http://example.com/mike/diaspora.git",
    "namespace":"Mike",
    "visibility_level":0,
    "path_with_namespace":"mike/diaspora",
    "default_branch":"master",
    "homepage":"http://example.com/mike/diaspora",
    "url":"[email protected]:mike/diaspora.git",
    "ssh_url":"[email protected]:mike/diaspora.git",
    "http_url":"http://example.com/mike/diaspora.git"
  },
  "repository":{
    "name": "Diaspora",
    "url": "[email protected]:mike/diaspora.git",
    "description": "",
    "homepage": "http://example.com/mike/diaspora",
    "git_http_url":"http://example.com/mike/diaspora.git",
    "git_ssh_url":"[email protected]:mike/diaspora.git",
    "visibility_level":0
  },
  "commits": [
    {
      "id": "b6568db1bc1dcd7f8b4d5a946b0b91f9dacd7327",
      "message": "Update Catalan translation to e38cb41.",
      "timestamp": "2011-12-12T14:27:31+02:00",
      "url": "http://example.com/mike/diaspora/commit/b6568db1bc1dcd7f8b4d5a946b0b91f9dacd7327",
      "author": {
        "name": "Jordi Mallach",
        "email": "[email protected]"
      },
      "added": ["CHANGELOG"],
      "modified": ["app/controller/application.rb"],
      "removed": []
    },
    {
      "id": "da1560886d4f094c3e6c9ef40349f7d38b5d27d7",
      "message": "fixed readme",
      "timestamp": "2012-01-03T23:36:29+02:00",
      "url": "http://example.com/mike/diaspora/commit/da1560886d4f094c3e6c9ef40349f7d38b5d27d7",
      "author": {
        "name": "GitSwarm dev user",
        "email": "[email protected](none)"
      },
      "added": ["CHANGELOG"],
      "modified": ["app/controller/application.rb"],
      "removed": []
    }
  ],
  "total_commits_count": 4
}

Tag events

Triggered when you create (or delete) tags to the repository.

Request header:

X-Gitlab-Event: Tag Push Hook

Request body:

{
  "object_kind": "tag_push",
  "before": "0000000000000000000000000000000000000000",
  "after": "82b3d5ae55f7080f1e6022629cdb57bfae7cccc7",
  "ref": "refs/tags/v1.0.0",
  "checkout_sha": "82b3d5ae55f7080f1e6022629cdb57bfae7cccc7",
  "user_id": 1,
  "user_name": "John Smith",
  "user_avatar": "https://s.gravatar.com/avatar/d4c74594d841139328695756648b6bd6?s=8://s.gravatar.com/avatar/d4c74594d841139328695756648b6bd6?s=80",
  "project_id": 1,
  "project":{
    "name":"Example",
    "description":"",
    "web_url":"http://example.com/jsmith/example",
    "avatar_url":null,
    "git_ssh_url":"[email protected]:jsmith/example.git",
    "git_http_url":"http://example.com/jsmith/example.git",
    "namespace":"Jsmith",
    "visibility_level":0,
    "path_with_namespace":"jsmith/example",
    "default_branch":"master",
    "homepage":"http://example.com/jsmith/example",
    "url":"[email protected]:jsmith/example.git",
    "ssh_url":"[email protected]:jsmith/example.git",
    "http_url":"http://example.com/jsmith/example.git"
  },
  "repository":{
    "name": "Example",
    "url": "ssh://[email protected]/jsmith/example.git",
    "description": "",
    "homepage": "http://example.com/jsmith/example",
    "git_http_url":"http://example.com/jsmith/example.git",
    "git_ssh_url":"[email protected]:jsmith/example.git",
    "visibility_level":0
  },
  "commits": [],
  "total_commits_count": 0
}

Issues events

Triggered when a new issue is created or an existing issue was updated/closed/reopened.

Request header:

X-Gitlab-Event: Issue Hook

Request body:

{
  "object_kind": "issue",
  "user": {
    "name": "Administrator",
    "username": "root",
    "avatar_url": "http://www.gravatar.com/avatar/e64c7d89f26bd1972efa854d13d7dd61?s=40\u0026d=identicon"
  },
  "project":{
    "name":"Gitlab Test",
    "description":"Aut reprehenderit ut est.",
    "web_url":"http://example.com/gitlabhq/gitlab-test",
    "avatar_url":null,
    "git_ssh_url":"[email protected]:gitlabhq/gitlab-test.git",
    "git_http_url":"http://example.com/gitlabhq/gitlab-test.git",
    "namespace":"GitlabHQ",
    "visibility_level":20,
    "path_with_namespace":"gitlabhq/gitlab-test",
    "default_branch":"master",
    "homepage":"http://example.com/gitlabhq/gitlab-test",
    "url":"http://example.com/gitlabhq/gitlab-test.git",
    "ssh_url":"[email protected]:gitlabhq/gitlab-test.git",
    "http_url":"http://example.com/gitlabhq/gitlab-test.git"
  },
  "repository":{
    "name": "Gitlab Test",
    "url": "http://example.com/gitlabhq/gitlab-test.git",
    "description": "Aut reprehenderit ut est.",
    "homepage": "http://example.com/gitlabhq/gitlab-test"
  },
  "object_attributes": {
    "id": 301,
    "title": "New API: create/update/delete file",
    "assignee_id": 51,
    "author_id": 51,
    "project_id": 14,
    "created_at": "2013-12-03T17:15:43Z",
    "updated_at": "2013-12-03T17:15:43Z",
    "position": 0,
    "branch_name": null,
    "description": "Create new API for manipulations with repository",
    "milestone_id": null,
    "state": "opened",
    "iid": 23,
    "url": "http://example.com/diaspora/issues/23",
    "action": "open"
  },
  "assignee": {
    "name": "User1",
    "username": "user1",
    "avatar_url": "http://www.gravatar.com/avatar/e64c7d89f26bd1972efa854d13d7dd61?s=40\u0026d=identicon"
  }
}

Comment events

Triggered when a new comment is made on commits, merge requests, issues, and code snippets. The note data will be stored in object_attributes (e.g. note, noteable_type). The payload will also include information about the target of the comment. For example, a comment on a issue will include the specific issue information under the issue key. Valid target types:

  1. commit
  2. merge_request
  3. issue
  4. snippet

Comment on commit

Request header:

X-Gitlab-Event: Note Hook

Request body:

{
  "object_kind": "note",
  "user": {
    "name": "Administrator",
    "username": "root",
    "avatar_url": "http://www.gravatar.com/avatar/e64c7d89f26bd1972efa854d13d7dd61?s=40\u0026d=identicon"
  },
  "project_id": 5,
  "project":{
    "name":"Gitlab Test",
    "description":"Aut reprehenderit ut est.",
    "web_url":"http://example.com/gitlabhq/gitlab-test",
    "avatar_url":null,
    "git_ssh_url":"[email protected]:gitlabhq/gitlab-test.git",
    "git_http_url":"http://example.com/gitlabhq/gitlab-test.git",
    "namespace":"GitlabHQ",
    "visibility_level":20,
    "path_with_namespace":"gitlabhq/gitlab-test",
    "default_branch":"master",
    "homepage":"http://example.com/gitlabhq/gitlab-test",
    "url":"http://example.com/gitlabhq/gitlab-test.git",
    "ssh_url":"[email protected]:gitlabhq/gitlab-test.git",
    "http_url":"http://example.com/gitlabhq/gitlab-test.git"
  },
  "repository":{
    "name": "Gitlab Test",
    "url": "http://example.com/gitlab-org/gitlab-test.git",
    "description": "Aut reprehenderit ut est.",
    "homepage": "http://example.com/gitlab-org/gitlab-test"
  },
  "object_attributes": {
    "id": 1243,
    "note": "This is a commit comment. How does this work?",
    "noteable_type": "Commit",
    "author_id": 1,
    "created_at": "2015-05-17 18:08:09 UTC",
    "updated_at": "2015-05-17 18:08:09 UTC",
    "project_id": 5,
    "attachment":null,
    "line_code": "bec9703f7a456cd2b4ab5fb3220ae016e3e394e3_0_1",
    "commit_id": "cfe32cf61b73a0d5e9f13e774abde7ff789b1660",
    "noteable_id": null,
    "system": false,
    "st_diff": {
      "diff": "--- /dev/null\n+++ b/six\n@@ -0,0 +1 @@\n+Subproject commit 409f37c4f05865e4fb208c771485f211a22c4c2d\n",
      "new_path": "six",
      "old_path": "six",
      "a_mode": "0",
      "b_mode": "160000",
      "new_file": true,
      "renamed_file": false,
      "deleted_file": false
    },
    "url": "http://example.com/gitlab-org/gitlab-test/commit/cfe32cf61b73a0d5e9f13e774abde7ff789b1660#note_1243"
  },
  "commit": {
    "id": "cfe32cf61b73a0d5e9f13e774abde7ff789b1660",
    "message": "Add submodule\n\nSigned-off-by: Dmitriy Zaporozhets \u003c[email protected]\u003e\n",
    "timestamp": "2014-02-27T10:06:20+02:00",
    "url": "http://example.com/gitlab-org/gitlab-test/commit/cfe32cf61b73a0d5e9f13e774abde7ff789b1660",
    "author": {
      "name": "Dmitriy Zaporozhets",
      "email": "[email protected]"
    }
  }
}

Comment on merge request

Request header:

X-Gitlab-Event: Note Hook

Request body:

{
  "object_kind": "note",
  "user": {
    "name": "Administrator",
    "username": "root",
    "avatar_url": "http://www.gravatar.com/avatar/e64c7d89f26bd1972efa854d13d7dd61?s=40\u0026d=identicon"
  },
  "project_id": 5,
  "project":{
    "name":"Gitlab Test",
    "description":"Aut reprehenderit ut est.",
    "web_url":"http://example.com/gitlab-org/gitlab-test",
    "avatar_url":null,
    "git_ssh_url":"[email protected]:gitlab-org/gitlab-test.git",
    "git_http_url":"http://example.com/gitlab-org/gitlab-test.git",
    "namespace":"Gitlab Org",
    "visibility_level":10,
    "path_with_namespace":"gitlab-org/gitlab-test",
    "default_branch":"master",
    "homepage":"http://example.com/gitlab-org/gitlab-test",
    "url":"http://example.com/gitlab-org/gitlab-test.git",
    "ssh_url":"[email protected]:gitlab-org/gitlab-test.git",
    "http_url":"http://example.com/gitlab-org/gitlab-test.git"
  },
  "repository":{
    "name": "Gitlab Test",
    "url": "http://localhost/gitlab-org/gitlab-test.git",
    "description": "Aut reprehenderit ut est.",
    "homepage": "http://example.com/gitlab-org/gitlab-test"
  },
  "object_attributes": {
    "id": 1244,
    "note": "This MR needs work.",
    "noteable_type": "MergeRequest",
    "author_id": 1,
    "created_at": "2015-05-17 18:21:36 UTC",
    "updated_at": "2015-05-17 18:21:36 UTC",
    "project_id": 5,
    "attachment": null,
    "line_code": null,
    "commit_id": "",
    "noteable_id": 7,
    "system": false,
    "st_diff": null,
    "url": "http://example.com/gitlab-org/gitlab-test/merge_requests/1#note_1244"
  },
  "merge_request": {
    "id": 7,
    "target_branch": "markdown",
    "source_branch": "master",
    "source_project_id": 5,
    "author_id": 8,
    "assignee_id": 28,
    "title": "Tempora et eos debitis quae laborum et.",
    "created_at": "2015-03-01 20:12:53 UTC",
    "updated_at": "2015-03-21 18:27:27 UTC",
    "milestone_id": 11,
    "state": "opened",
    "merge_status": "cannot_be_merged",
    "target_project_id": 5,
    "iid": 1,
    "description": "Et voluptas corrupti assumenda temporibus. Architecto cum animi eveniet amet asperiores. Vitae numquam voluptate est natus sit et ad id.",
    "position": 0,
    "locked_at": null,
    "source":{
      "name":"Gitlab Test",
      "description":"Aut reprehenderit ut est.",
      "web_url":"http://example.com/gitlab-org/gitlab-test",
      "avatar_url":null,
      "git_ssh_url":"[email protected]:gitlab-org/gitlab-test.git",
      "git_http_url":"http://example.com/gitlab-org/gitlab-test.git",
      "namespace":"Gitlab Org",
      "visibility_level":10,
      "path_with_namespace":"gitlab-org/gitlab-test",
      "default_branch":"master",
      "homepage":"http://example.com/gitlab-org/gitlab-test",
      "url":"http://example.com/gitlab-org/gitlab-test.git",
      "ssh_url":"[email protected]:gitlab-org/gitlab-test.git",
      "http_url":"http://example.com/gitlab-org/gitlab-test.git"
    },
    "target": {
      "name":"Gitlab Test",
      "description":"Aut reprehenderit ut est.",
      "web_url":"http://example.com/gitlab-org/gitlab-test",
      "avatar_url":null,
      "git_ssh_url":"[email protected]:gitlab-org/gitlab-test.git",
      "git_http_url":"http://example.com/gitlab-org/gitlab-test.git",
      "namespace":"Gitlab Org",
      "visibility_level":10,
      "path_with_namespace":"gitlab-org/gitlab-test",
      "default_branch":"master",
      "homepage":"http://example.com/gitlab-org/gitlab-test",
      "url":"http://example.com/gitlab-org/gitlab-test.git",
      "ssh_url":"[email protected]:gitlab-org/gitlab-test.git",
      "http_url":"http://example.com/gitlab-org/gitlab-test.git"
    },
    "last_commit": {
      "id": "562e173be03b8ff2efb05345d12df18815438a4b",
      "message": "Merge branch 'another-branch' into 'master'\n\nCheck in this test\n",
      "timestamp": "2015-04-08T21: 00:25-07:00",
      "url": "http://example.com/gitlab-org/gitlab-test/commit/562e173be03b8ff2efb05345d12df18815438a4b",
      "author": {
        "name": "John Smith",
        "email": "[email protected]"
      }
    },
    "work_in_progress": false,
    "assignee": {
      "name": "User1",
      "username": "user1",
      "avatar_url": "http://www.gravatar.com/avatar/e64c7d89f26bd1972efa854d13d7dd61?s=40\u0026d=identicon"
    }
  }
}

Comment on issue

Request header:

X-Gitlab-Event: Note Hook

Request body:

{
  "object_kind": "note",
  "user": {
    "name": "Administrator",
    "username": "root",
    "avatar_url": "http://www.gravatar.com/avatar/e64c7d89f26bd1972efa854d13d7dd61?s=40\u0026d=identicon"
  },
  "project_id": 5,
  "project":{
    "name":"Gitlab Test",
    "description":"Aut reprehenderit ut est.",
    "web_url":"http://example.com/gitlab-org/gitlab-test",
    "avatar_url":null,
    "git_ssh_url":"[email protected]:gitlab-org/gitlab-test.git",
    "git_http_url":"http://example.com/gitlab-org/gitlab-test.git",
    "namespace":"Gitlab Org",
    "visibility_level":10,
    "path_with_namespace":"gitlab-org/gitlab-test",
    "default_branch":"master",
    "homepage":"http://example.com/gitlab-org/gitlab-test",
    "url":"http://example.com/gitlab-org/gitlab-test.git",
    "ssh_url":"[email protected]:gitlab-org/gitlab-test.git",
    "http_url":"http://example.com/gitlab-org/gitlab-test.git"
  },
  "repository":{
    "name":"diaspora",
    "url":"[email protected]:mike/diaspora.git",
    "description":"",
    "homepage":"http://example.com/mike/diaspora"
  },
  "object_attributes": {
    "id": 1241,
    "note": "Hello world",
    "noteable_type": "Issue",
    "author_id": 1,
    "created_at": "2015-05-17 17:06:40 UTC",
    "updated_at": "2015-05-17 17:06:40 UTC",
    "project_id": 5,
    "attachment": null,
    "line_code": null,
    "commit_id": "",
    "noteable_id": 92,
    "system": false,
    "st_diff": null,
    "url": "http://example.com/gitlab-org/gitlab-test/issues/17#note_1241"
  },
  "issue": {
    "id": 92,
    "title": "test",
    "assignee_id": null,
    "author_id": 1,
    "project_id": 5,
    "created_at": "2015-04-12 14:53:17 UTC",
    "updated_at": "2015-04-26 08:28:42 UTC",
    "position": 0,
    "branch_name": null,
    "description": "test",
    "milestone_id": null,
    "state": "closed",
    "iid": 17
  }
}

Comment on code snippet

Request header:

X-Gitlab-Event: Note Hook

Request body:

{
  "object_kind": "note",
  "user": {
    "name": "Administrator",
    "username": "root",
    "avatar_url": "http://www.gravatar.com/avatar/e64c7d89f26bd1972efa854d13d7dd61?s=40\u0026d=identicon"
  },
  "project_id": 5,
  "project":{
    "name":"Gitlab Test",
    "description":"Aut reprehenderit ut est.",
    "web_url":"http://example.com/gitlab-org/gitlab-test",
    "avatar_url":null,
    "git_ssh_url":"[email protected]:gitlab-org/gitlab-test.git",
    "git_http_url":"http://example.com/gitlab-org/gitlab-test.git",
    "namespace":"Gitlab Org",
    "visibility_level":10,
    "path_with_namespace":"gitlab-org/gitlab-test",
    "default_branch":"master",
    "homepage":"http://example.com/gitlab-org/gitlab-test",
    "url":"http://example.com/gitlab-org/gitlab-test.git",
    "ssh_url":"[email protected]:gitlab-org/gitlab-test.git",
    "http_url":"http://example.com/gitlab-org/gitlab-test.git"
  },
  "repository":{
    "name":"Gitlab Test",
    "url":"http://example.com/gitlab-org/gitlab-test.git",
    "description":"Aut reprehenderit ut est.",
    "homepage":"http://example.com/gitlab-org/gitlab-test"
  },
  "object_attributes": {
    "id": 1245,
    "note": "Is this snippet doing what it's supposed to be doing?",
    "noteable_type": "Snippet",
    "author_id": 1,
    "created_at": "2015-05-17 18:35:50 UTC",
    "updated_at": "2015-05-17 18:35:50 UTC",
    "project_id": 5,
    "attachment": null,
    "line_code": null,
    "commit_id": "",
    "noteable_id": 53,
    "system": false,
    "st_diff": null,
    "url": "http://example.com/gitlab-org/gitlab-test/snippets/53#note_1245"
  },
  "snippet": {
    "id": 53,
    "title": "test",
    "content": "puts 'Hello world'",
    "author_id": 1,
    "project_id": 5,
    "created_at": "2015-04-09 02:40:38 UTC",
    "updated_at": "2015-04-09 02:40:38 UTC",
    "file_name": "test.rb",
    "expires_at": null,
    "type": "ProjectSnippet",
    "visibility_level": 0
  }
}

Merge request events

Triggered when a new merge request is created, an existing merge request was updated/merged/closed or a commit is added in the source branch.

Request header:

X-Gitlab-Event: Merge Request Hook

Request body:

{
  "object_kind": "merge_request",
  "user": {
    "name": "Administrator",
    "username": "root",
    "avatar_url": "http://www.gravatar.com/avatar/e64c7d89f26bd1972efa854d13d7dd61?s=40\u0026d=identicon"
  },
  "object_attributes": {
    "id": 99,
    "target_branch": "master",
    "source_branch": "ms-viewport",
    "source_project_id": 14,
    "author_id": 51,
    "assignee_id": 6,
    "title": "MS-Viewport",
    "created_at": "2013-12-03T17:23:34Z",
    "updated_at": "2013-12-03T17:23:34Z",
    "st_commits": null,
    "st_diffs": null,
    "milestone_id": null,
    "state": "opened",
    "merge_status": "unchecked",
    "target_project_id": 14,
    "iid": 1,
    "description": "",
    "source":{
      "name":"Awesome Project",
      "description":"Aut reprehenderit ut est.",
      "web_url":"http://example.com/awesome_space/awesome_project",
      "avatar_url":null,
      "git_ssh_url":"[email protected]:awesome_space/awesome_project.git",
      "git_http_url":"http://example.com/awesome_space/awesome_project.git",
      "namespace":"Awesome Space",
      "visibility_level":20,
      "path_with_namespace":"awesome_space/awesome_project",
      "default_branch":"master",
      "homepage":"http://example.com/awesome_space/awesome_project",
      "url":"http://example.com/awesome_space/awesome_project.git",
      "ssh_url":"[email protected]:awesome_space/awesome_project.git",
      "http_url":"http://example.com/awesome_space/awesome_project.git"
    },
    "target": {
      "name":"Awesome Project",
      "description":"Aut reprehenderit ut est.",
      "web_url":"http://example.com/awesome_space/awesome_project",
      "avatar_url":null,
      "git_ssh_url":"[email protected]:awesome_space/awesome_project.git",
      "git_http_url":"http://example.com/awesome_space/awesome_project.git",
      "namespace":"Awesome Space",
      "visibility_level":20,
      "path_with_namespace":"awesome_space/awesome_project",
      "default_branch":"master",
      "homepage":"http://example.com/awesome_space/awesome_project",
      "url":"http://example.com/awesome_space/awesome_project.git",
      "ssh_url":"[email protected]:awesome_space/awesome_project.git",
      "http_url":"http://example.com/awesome_space/awesome_project.git"
    },
    "last_commit": {
      "id": "da1560886d4f094c3e6c9ef40349f7d38b5d27d7",
      "message": "fixed readme",
      "timestamp": "2012-01-03T23:36:29+02:00",
      "url": "http://example.com/awesome_space/awesome_project/commits/da1560886d4f094c3e6c9ef40349f7d38b5d27d7",
      "author": {
        "name": "GitSwarm dev user",
        "email": "[email protected](none)"
      }
    },
    "work_in_progress": false,
    "url": "http://example.com/diaspora/merge_requests/1",
    "action": "open",
    "assignee": {
      "name": "User1",
      "username": "user1",
      "avatar_url": "http://www.gravatar.com/avatar/e64c7d89f26bd1972efa854d13d7dd61?s=40\u0026d=identicon"
    }
  }
}

Wiki Page events

Triggered when a wiki page is created or edited.

Request Header:

X-Gitlab-Event: Wiki Page Hook

Request Body:

{
  "object_kind": "wiki_page",
  "user": {
    "name": "Administrator",
    "username": "root",
    "avatar_url": "http://www.gravatar.com/avatar/e64c7d89f26bd1972efa854d13d7dd61?s=80\u0026d=identicon"
  },
  "project": {
    "name": "awesome-project",
    "description": "This is awesome",
    "web_url": "http://example.com/root/awesome-project",
    "avatar_url": null,
    "git_ssh_url": "[email protected]:root/awesome-project.git",
    "git_http_url": "http://example.com/root/awesome-project.git",
    "namespace": "root",
    "visibility_level": 0,
    "path_with_namespace": "root/awesome-project",
    "default_branch": "master",
    "homepage": "http://example.com/root/awesome-project",
    "url": "[email protected]:root/awesome-project.git",
    "ssh_url": "[email protected]:root/awesome-project.git",
    "http_url": "http://example.com/root/awesome-project.git"
  },
  "wiki": {
    "web_url": "http://example.com/root/awesome-project/wikis/home",
    "git_ssh_url": "[email protected]:root/awesome-project.wiki.git",
    "git_http_url": "http://example.com/root/awesome-project.wiki.git",
    "path_with_namespace": "root/awesome-project.wiki",
    "default_branch": "master"
  },
  "object_attributes": {
    "title": "Awesome",
    "content": "awesome content goes here",
    "format": "markdown",
    "message": "adding an awesome page to the wiki",
    "slug": "awesome",
    "url": "http://example.com/root/awesome-project/wikis/awesome",
    "action": "create"
  }
}

Example webhook receiver

If you want to see GitSwarm's webhooks in action for testing purposes you can use a simple echo script running in a console session.

Save the following file as print_http_body.rb.

require 'webrick'

server = WEBrick::HTTPServer.new(:Port => ARGV.first)
server.mount_proc '/' do |req, res|
  puts req.body
end

trap 'INT' do
  server.shutdown
end
server.start

Pick an unused port (e.g. 8000) and start the script: ruby print_http_body.rb 8000. Then add your server as a webhook receiver in GitSwarm as http://my.host:8000/.

When you press 'Test Hook' in GitSwarm, you should see something like this in the console.

{"before":"077a85dd266e6f3573ef7e9ef8ce3343ad659c4e","after":"95cd4a99e93bc4bbabacfa2cd10e6725b1403c60",<SNIP>}
example.com - - [14/May/2014:07:45:26 EDT] "POST / HTTP/1.1" 200 0
- -> /
