Quick Start

Note: Starting from 2015.4, GitLab Continuous Integration (CI) is fully integrated into GitSwarm itself and is enabled by default on all projects.

GitSwarm offers a continuous integration service. If you add a .gitlab-ci.yml file to the root directory of your repository, and configure your GitSwarm project to use a Runner, then each merge request or push triggers your CI pipeline.

The .gitlab-ci.yml file tells the GitLab runner what to do. By default it runs a pipeline with three stages: build, test, and deploy. You don't need to use all three stages; stages with no jobs are simply ignored.

If everything runs OK (no non-zero return values), you'll get a nice green checkmark associated with the pushed commit or merge request. This makes it easy to see whether a merge request caused any of the tests to fail before you even look at the code.

Most projects use GitLab's CI service to run the test suite so that developers get immediate feedback if they broke something.

There's a growing trend to use continuous delivery and continuous deployment to automatically deploy tested code to staging and production environments.

So in brief, the steps needed to have a working CI can be summed up to:

  1. Add .gitlab-ci.yml to the root directory of your repository
  2. Configure a Runner

From there on, on every push to your Git repository, the Runner automagically starts the pipeline and the pipeline appears under the project's /pipelines page.


This guide assumes that you:

Let's break it down to pieces and work on solving the GitLab CI puzzle.

Creating a .gitlab-ci.yml file

Before you create .gitlab-ci.yml let's first explain in brief what this is all about.

What is .gitlab-ci.yml

The .gitlab-ci.yml file is where you configure what CI does with your project. It lives in the root of your repository.

On any push to your repository, GitSwarm looks for the .gitlab-ci.yml file and start builds on Runners according to the contents of the file, for that commit.

Because .gitlab-ci.yml is in the repository and is version controlled, old versions still build successfully, forks can easily make use of CI, branches can have different pipelines and jobs, and you have a single source of truth for CI. You can read more about the reasons why we are using .gitlab-ci.yml in our blog about it.

Note: .gitlab-ci.yml is a YAML file so you have to pay extra attention to indentation. Always use spaces, not tabs.

Creating a simple .gitlab-ci.yml file

You need to create a file named .gitlab-ci.yml in the root directory of your repository. Below is an example for a Ruby on Rails project.

before_script:
  - apt-get update -qq && apt-get install -y -qq sqlite3 libsqlite3-dev nodejs
  - ruby -v
  - which ruby
  - gem install bundler --no-ri --no-rdoc
  - bundle install --jobs $(nproc)  "${FLAGS[@]}"

rspec:
  script:
    - bundle exec rspec

rubocop:
  script:
    - bundle exec rubocop

This is the simplest possible build configuration that will work for most Ruby applications:

  1. Define two jobs rspec and rubocop (the names are arbitrary) with different commands to be executed.
  2. Before every job, the commands defined by before_script are executed.

The .gitlab-ci.yml file defines sets of jobs with constraints of how and when they should be run. The jobs are defined as top-level elements with a name (in our case rspec and rubocop) and always have to contain the script keyword. Jobs are used to create builds, which are then picked by Runners and executed within the environment of the Runner.

What is important is that each job is run independently from each other.

If you want to check whether your .gitlab-ci.yml file is valid, there is a Lint tool under the page /ci/lint of your GitSwarm instance. You can also find the link under Settings > CI settings in your project.

For more information and a complete .gitlab-ci.yml syntax, please read the documentation on .gitlab-ci.yml.

Push .gitlab-ci.yml to GitSwarm

Once you've created .gitlab-ci.yml, you should add it to your git repository and push it to GitSwarm.

git add .gitlab-ci.yml
git commit -m "Add .gitlab-ci.yml"
git push origin master

Now if you go to the Pipelines page you can see that the pipeline is pending.

You can also go to the Commits page and notice the little clock icon next to the commit SHA.

New commit pending

Clicking on the clock icon you will be directed to the builds page for that specific commit.

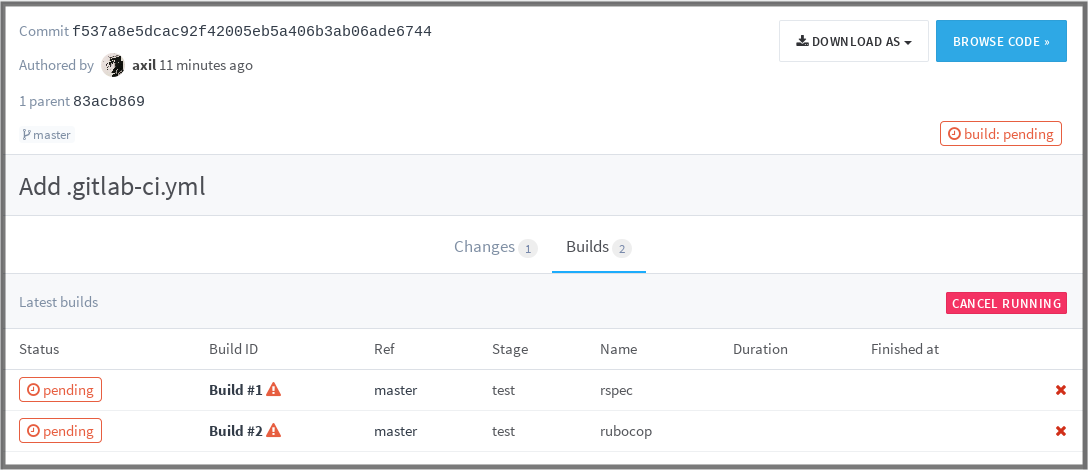

Single commit builds page

Notice that there are two jobs pending which are named after what we wrote in .gitlab-ci.yml. The red triangle indicates that there is no Runner configured yet for these builds.

The next step is to configure a Runner so that it picks the pending builds.

Configuring a Runner

In GitSwarm, Runners run the builds that you define in .gitlab-ci.yml. A Runner can be a virtual machine, a VPS, a bare-metal machine, a docker container or even a cluster of containers. GitSwarm and the Runners communicate through an API, so the only requirement is that the Runner's machine has Internet access.

A Runner can be specific to a certain project or serve multiple projects in GitSwarm. If it serves all projects it's called a Shared Runner.

Find more information about different Runners in the Runners documentation.

You can find whether any Runners are assigned to your project by going to Settings > Runners. Setting up a Runner is easy and straightforward. The official Runner supported by GitSwarm is written in Go and can be found at https://gitlab.com/gitlab-org/gitlab-ci-multi-runner.

In order to have a functional Runner you need to follow two steps:

  1. Install it
  2. Configure it

Follow the links above to set up your own Runner or use a Shared Runner as described in the next section.

For other types of unofficial Runners written in other languages, see the instructions for the various GitLab Runners.

Once the Runner has been set up, you should see it on the Runners page of your project, following Settings > Runners.

Activated runners

Shared Runners

If you use GitLab.com you can use Shared Runners provided by GitLab Inc.

These are special virtual machines that run on GitLab's infrastructure and can build any project.

To enable Shared Runners you have to go to your project's Settings > Runners and click Enable shared runners.

Read more on Shared Runners.

Seeing the status of your pipeline and builds

After configuring the Runner successfully, you should see the status of your last commit change from pending to either running, success or failed.

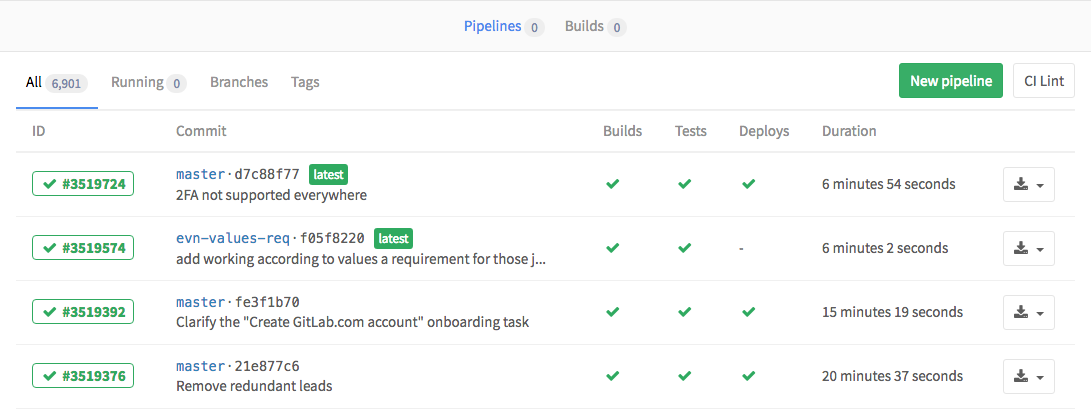

You can view all pipelines by going to the Pipelines page in your project.

Commit status

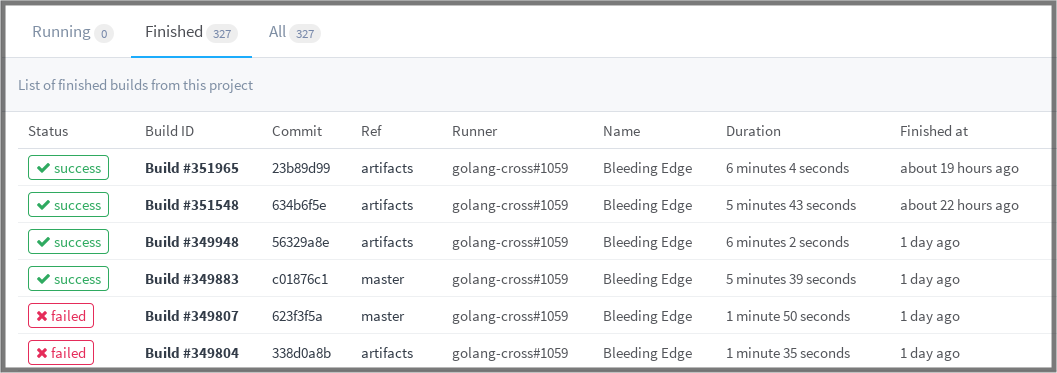

Or you can view all builds, by going to the Pipelines > Builds page.

Commit status

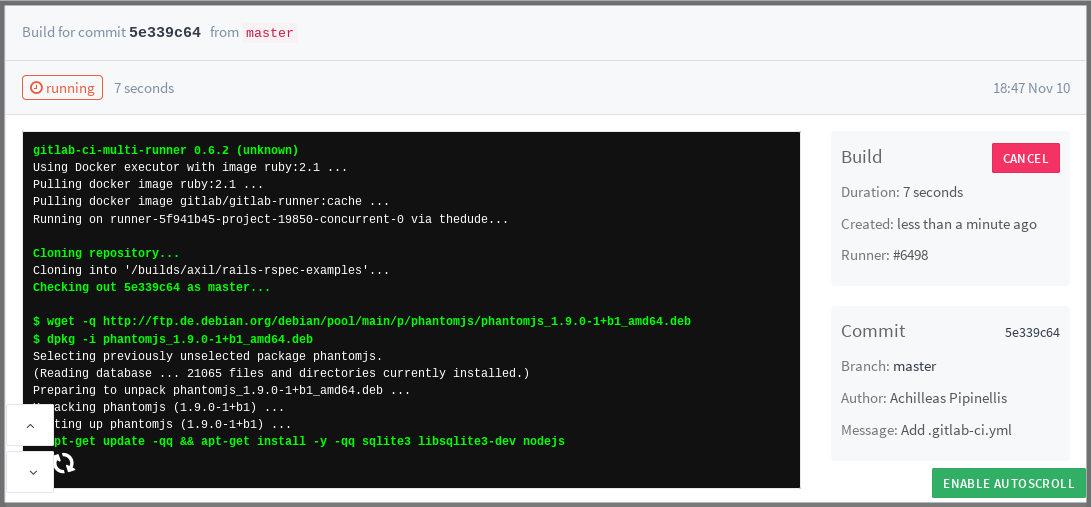

By clicking on a Build ID, you will be able to see the log of that build. This is important to diagnose why a build failed or acted differently than you expected.

Build log

You are also able to view the status of any commit in the various pages in GitSwarm, such as Commits and Merge Requests.

Enabling build emails

If you want to receive e-mail notifications about the result status of the builds, you should explicitly enable the Builds Emails service under your project's settings.

For more information read the Builds emails service documentation.

Builds badge

You can access a builds badge image using following link:

http://example.gitlab.com/namespace/project/badges/branch/build.svg

Awesome! You started using CI in GitSwarm!

Examples

Visit the examples README to see a list of examples using GitLab CI with various languages.
