GitSwarm-EE 2017.2-1 Documentation


CI/CD pipelines settings

To reach the pipelines settings:

  1. Navigate to your project and click the cog icon in the upper right corner.

    Project settings menu

  2. Select CI/CD Pipelines from the menu.

The following settings can be configured per project.

Git strategy

With Git strategy, you can choose the default way your repository is fetched from GitLab in a job.

There are two options:

The default Git strategy can be overridden by the GIT_STRATEGY variable in .gitlab-ci.yml.

Timeout

Timeout defines the maximum amount of time in minutes that a job is able run. The default value is 60 minutes. Decrease the time limit if you want to impose a hard limit on your jobs' running time or increase it otherwise. In any case, if the job surpasses the threshold, it is marked as failed.

Test coverage parsing

If you use test coverage in your code, GitLab can capture its output in the job log using a regular expression. In the pipelines settings, search for the "Test coverage parsing" section.

Pipelines settings test coverage

Leave blank if you want to disable it or enter a ruby regular expression. You can use http://rubular.com to test your regex.

If the pipeline succeeds, the coverage is shown in the merge request widget and in the jobs table.

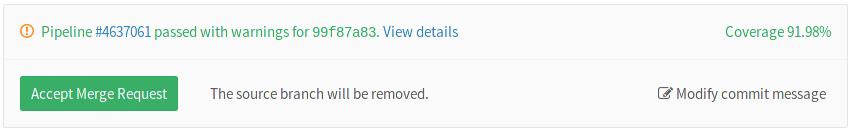

MR widget coverage

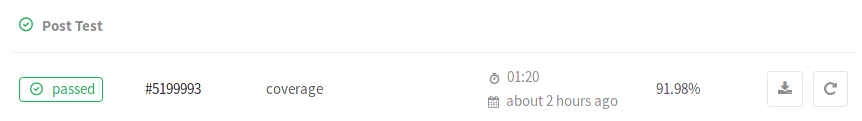

Build status coverage

A few examples of known coverage tools for a variety of languages can be found in the pipelines settings page.

Visibility of pipelines

For public and internal projects, the pipelines page can be accessed by anyone and those logged in respectively. If you wish to hide it so that only the members of the project or group have access to it, uncheck the Public pipelines checkbox and save the changes.

Badges

In the pipelines settings page you can find job status and test coverage badges for your project. The latest successful pipeline will be used to read the job status and test coverage values.

Visit the pipelines settings page in your project to see the exact link to your badges, as well as ways to embed the badge image in your HTML or Markdown pages.

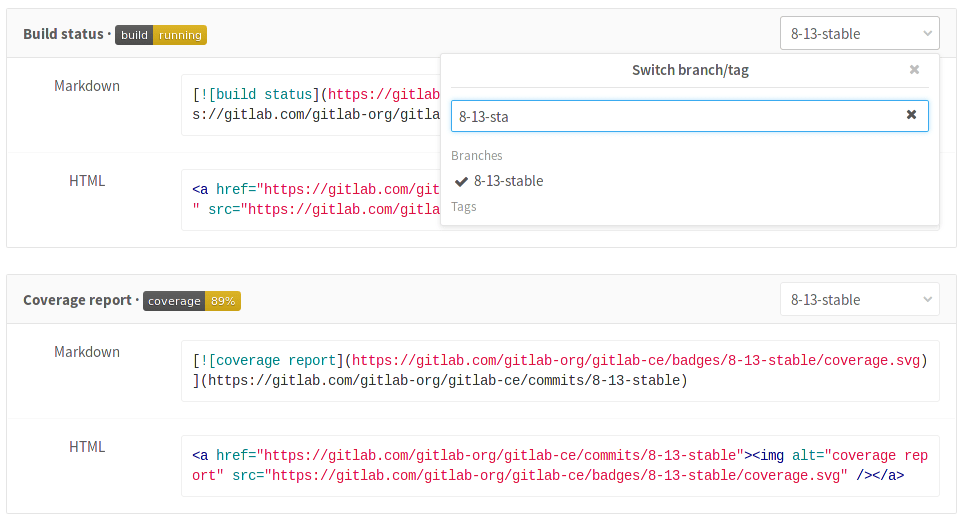

Pipelines badges

Job status badge

Depending on the status of your job, a badge can have the following values:

You can access a job status badge image using the following link:

https://example.gitlab.com/<namespace>/<project>/badges/<branch>/build.svg

Test coverage report badge

GitLab makes it possible to define the regular expression for coverage report, that each job log will be matched against. This means that each job in the pipeline can have the test coverage percentage value defined.

The test coverage badge can be accessed using following link:

https://example.gitlab.com/<namespace>/<project>/badges/<branch>/coverage.svg

If you would like to get the coverage report from a specific job, you can add the job=coverage_job_name parameter to the URL. For example, the following Markdown code will embed the test coverage report badge of the coverage job into your README.md:

![coverage](https://gitlab.com/gitlab-org/gitlab-ce/badges/master/coverage.svg?job=coverage)
