Administering Perforce: Superuser Tasks

This chapter describes basic tasks associated with day-to-day Perforce administration and advanced Perforce configuration issues related to cross-platform development issues, migration of Perforce servers from one machine to another, and working with remote and local depots.

Most of the tasks described in this chapter requires that you have Perforce superuser (access level super) or administrator (access level admin) privileges as defined in the Perforce protections table. For more about controlling Perforce superuser access, and protections in general, see “Administering Perforce: Protections”.

Basic Perforce Administration

Tasks commonly performed by Perforce administrators and superusers include:

  • User maintenance tasks, including resetting passwords, creating users, disabling the automatic creation of users, and cleaning up files left open by former users

  • Administrative operations, including setting the server security level, obliterating files to reclaim disk space, editing submitted changelists, verifying server integrity, defining file types to control Perforce's file type detection mechanism, and the use of the -f flag to force operations

User authentication: passwords and tickets

Perforce supports two methods of authentication: password-based and ticket-based.


Although ticket-based authentication provides a more secure authentication mechanism than password-based authentication, it does not encrypt network traffic between client workstations and the Perforce server.

To encrypt network traffic between client workstations and the Perforce server, configure your installation to use SSL. See Encrypting connections to a Perforce server.

How password-based authentication works

Password-based authentication is stateless; after a password is correctly set, access is granted for indefinite time periods. Passwords may be up to 1024 characters in length. To enforce password strength and existence requirements, set the server security level. See Server security levels for details. Password based authentication is supported at security levels 0, 1, and 2.

Minimum password length is configurable by setting the dm.password.minlength configurable. For example, to require passwords to be at least 16 characters in length, a superuser can run:

p4 configure set dm.password.minlength=16

The default minimum password length is eight characters.

In order to require users to change their passwords after a specified interval, assign your users to at least one group and set the PasswordTimeout: value for that group. For users in multiple groups, the largest defined PasswordTimeout (including unlimited, but ignoring unset) value applies.

How ticket-based authentication works

Ticket-based authentication is based on time-limited tickets that enable users to connect to Perforce servers. Peforce creates a ticket for a user when they log in to Perforce using the p4 login -a command. Perforce applications store tickets in the file specified by the P4TICKETS environment variable. If this variable is not set, tickets are stored in %USERPROFILE%\p4tickets.txt on Windows, and in $HOME/.p4tickets on UNIX and other operating systems.

Tickets have a finite lifespan, after which they cease to be valid. By default, tickets are valid for 12 hours (43200 seconds). To set different ticket lifespans for groups of users, edit the Timeout: field in the p4 group form for each group. The timeout value for a user in multiple groups is the largest timeout value (including unlimited, but ignoring unset) for all groups of which a user is a member. To create a ticket that does not expire, set the Timeout: field to unlimited.

Although tickets are not passwords, Perforce servers accept valid tickets wherever users can specify Perforce passwords (except when logging in with the p4 login command). This behavior provides the security advantages of ticket-based authentication with the ease of scripting afforded by password authentication. Ticket-based authentication is supported at all server security levels, and is required at security level 3 and 4.

If password aging is in effect, tickets expire when their passwords expire.

Logging in to Perforce

To log in to Perforce, get a ticket from the server by using the p4 login command:

p4 login

You are prompted for your password, and a ticket is created for you in your ticket file. You can extend your ticket's lifespan by calling p4 login while already logged in. If you run p4 login while logged in, your ticket's lifespan is extended by 1/3 of its initial timeout setting, subject to a maximum of your initial timeout setting.

The Perforce service rate-limits the user's ability to run p4 login after multiple failed login attempts. To alter this behavior, set dm.user.loginattempts to the maximum number of failed login attempts to permit before the service imposes a 10-second delay on subsequent login attempts by that user.

By default, Perforce tickets are valid for your IP address only. If you have a shared home directory that is used on more than one machine, you can log in to Perforce from both machines by using p4 login -a to create a ticket in your home directory that is valid from all IP addresses.

Tickets can be used by multiple clients on the same machine so long as they use the same user and port.

Logging out of Perforce

To log out of Perforce from one machine by removing your ticket, use the command:

p4 logout

The entry in your ticket file is removed. If you have valid tickets for the same Perforce server, but those tickets exist on other machines, those tickets remain present (and you remain logged in) on those other machines.

If you are logged in to Perforce from more than one machine, you can log out of Perforce from all machines from which you were logged in by using the command:

p4 logout -a

All of your Perforce tickets are invalidated and you are logged out.

Determining ticket status

To see if your current ticket (that is, for your IP address, user name, and P4PORT setting) is still valid, use the command:

p4 login -s

If your ticket is valid, the length of time for which it will remain valid is displayed.

To display all tickets you currently have, use the command:

p4 tickets

The contents of your ticket file are displayed.

Invalidating a user's ticket

As a super user, you can use the -a flag of the p4 logout command to invalidate a user's ticket. The following command invalidates Joe's ticket.

p4 logout -a joe

Server security levels

Perforce superusers can configure server-wide password usage requirements, password strength enforcement, and supported methods of user/server authentication by setting the security configurable. To change the security configurable, issue the command:

p4 configure set security=seclevel

where seclevel is 0, 1, 2, 3, or 4.


If you are using an external authentication manager such as LDAP or Active Directory (see Triggering to use external authentication), the security configurable is moot; the server either behaves as though security=3 was set, or is placed completely under the control of the external authentication system implemented by the associated auth-check and auth-set triggers.

Choosing a server security level

The default security level is 0: passwords are not required, and password strength is not enforced.

To ensure that all users have passwords, use security level 1. Users of old Perforce applications can still enter weak passwords.

To ensure that all users have strong passwords, use security level 2. Very old Perforce applications continue to work, but users must change their password to a strong password and upgrade to 2003.2 or later.

To require that all users have strong passwords, and to require the use of session-based authentication, use security level 3 and current Perforce applications.

In multiserver and replicated environments, use security level 4 to ensure that only authenticated service users (subject to all of the restrictions of level 3) can connect to this server.

Level 0 corresponds to pre-2003.2 server operation. Levels 1 and 2 were designed for support of legacy applications. Levels 3 and 4 afford the highest degree of security.

The Perforce server security levels and their effects on the behavior of Perforce applications are defined below.

Security level

Server behavior

0 (or unset)

Legacy support: passwords are not required. If passwords are used, password strength is not enforced.

Users with passwords can use either their P4PASSWD setting or the p4 login command for ticket-based authentication.

Users of old Perforce applications are unaffected.


Legacy support: Strong passwords are required for users of post-2003.2 Perforce applications, but existing passwords are not reset.

Pre-2003.2 Perforce applications can set passwords with p4 passwd or in the p4 user form, but password strength is not enforced.

Users with passwords can use either their P4PASSWD setting or the p4 login command for ticket-based authentication.

The dm.password.minlength configurable can be set to enforce a minimum password length.


Legacy support: All unverified strength passwords must be changed.

Users of pre-2003.2 Perforce applications cannot set passwords. Users at release 2003.2 or higher must use p4 passwd and enter their passwords at the prompt. Setting passwords with the p4 user form or the p4 passwd -O oldpass -P newpass command is prohibited.

On Windows, passwords are no longer stored in (or read from) the registry. (Storing P4PASSWD as an environment variable is supported, but passwords set with p4 set P4PASSWD are ignored.)

Users who have set strong passwords with a 2003.2 or higher Perforce application can use either their P4PASSWD setting for password-based authentication, or the p4 login command for ticket-based authentication.

The dm.password.minlength configurable can be set to enforce a minimum password length.


All password-based authentication is rejected.

Users must use ticket-based authentication (p4 login).

If you have scripts that rely on passwords, use p4 login to create a ticket valid for the user running the script, or use p4 login -p to display the value of a ticket that can be passed to Perforce commands as though it were a password (that is, either from the command line, or by setting P4PASSWD to the value of the valid ticket).

The dm.password.minlength configurable can be set to enforce a minimum password length.


Authenticated service users must be used for all replica server and remote depot connections to this server.

Requiring minimum revisions of Perforce application software

The Perforce versioning service offers a mechanism to control which revisions of client applications are able to connect to Perforce.

To require a minimum revision, set the configurables minClient to the appropriate revision, and (optionally) set minClientMessage to the error message displayed when users of older applications connect to the server.

For example:

p4 configure set minClient=2010.2
p4 configure set minClientMessage="Please upgrade to 2010.2 or higher"

Password strength requirements

Certain combinations of server security level and Perforce applications require users to set "strong" passwords. A password is considered strong if it is at least dm.password.minlength characters long (by default, eight characters), and at least two of the following are true:

  • The password contains uppercase letters.

  • The password contains lowercase letters.

  • The password contains nonalphabetic characters.

For example, the passwords a1b2c3d4, A1B2C3D4, aBcDeFgH are considered strong in an environment in which dm.password.minlength is 8, and the security is configurable to at least 1.

You can configure a minimum password length requirement on a sitewide basis by setting the dm.password.minlength configurable. For example, to require passwords to be at least 16 characters in length, a superuser can run:

p4 configure set dm.password.minlength=16

Passwords may be up to 1024 characters in length. The default minimum password length is eight characters.

Managing and resetting user passwords

Perforce superusers can manually set a Perforce user's password with:

p4 passwd username

When prompted, enter a new password the user.

To force a user with an existing password to reset his or her own password the next time they use Perforce, use the following command:

p4 admin resetpassword -u username

You can force all users with passwords (including the superuser that invokes this command) to reset their passwords by using the command:

p4 admin resetpassword -a

Running p4 admin resetpassword -a resets only the passwords of users who already exist (and who have passwords). If you create new user accounts with default passwords, you can further configure your installation to require that all newly-created reset their passwords before issuing their first command. To do this, set the dm.user.resetpassword configurable as follows:

p4 configure set dm.user.resetpassword=1

Creating users

By default, Perforce creates a new user record in its database whenever a command is issued by a user that does not exist. Perforce superusers can also use the -f (force) flag to create a new user as follows:

p4 user -f username

Fill in the form fields with the information for the user you want to create.

The p4 user command also has an option (-i) to take its input from the standard input instead of the forms editor. To quickly create a large number of users, write a script that reads user data, generates output in the format used by the p4 user form, and then pipes each generated form to p4 user -i -f.

Preventing automatic creation of users

By default, Perforce creates a new user record in its database whenever a user invokes any command that can update the depot or its metadata. You can control this behavior by setting the dm.user.noautocreate configurable with the p4 configure command:




A user record is created whenever any new user invokes a command that updates the depot or its metadata (default).


New users must create their own user records by explicitly running p4 user.


Only the Perforce superuser can create a new user with p4 user.

For example:

p4 configure set dm.user.noautocreate=1

changes the server's behavior to require that new users first create their own accounts before attempting to modify data on the server.

Renaming users

You can use the p4 renameuser command to rename users. The command renames the user and modifies associated artifacts to reflect the change: the user record, groups that include the user, properties that apply to the user, and so on. For detailed information see the description of the p4 renameuser command in the P4 Command Reference. In general, the user name is not changed in descriptive text fields such as change descriptions. It is only changed where the name appears as the owner or user field of the database record.

For best results, follow these guidelines:

  • Before you use this command, check to see that the new user name does not already exist. Using an existing name might result in the merging of data for the existing and the renamed user despite the best efforts of the system to prevent such merges.

  • The user issuing this command should not be the user being renamed.

  • The user being renamed should not be using the server when this command executes. After the command completes, the user should log out and then log back in.

  • The p4 renameuser command does not process unloaded workspaces: all the user's workspaces should be reloaded (or deleted) first.

    A distributed installation might contain local workspaces or local labels owned by the user; these workspaces and labels, which are bound to Edge Servers, should be deleted or moved to the Commit Server first.

  • Files of type +k which contain the $Author$ tag that were submitted by the user will have incorrect digests following this command. Use p4 verify -v to recompute the digest value after the rename.

Deleting obsolete users

Each standard user on the system consumes one Perforce license. A Perforce administrator can free up licenses by deleting users with the following command:

p4 user -d -f username

Before you delete a user, you must first revert (or submit) any files a user has open in a changelist. If you attempt to delete a user with open files, Perforce displays an error message to that effect.

Deleting a user frees a Perforce license but does not automatically update the group and protections tables. Use p4 group and p4 protect to delete the user from these tables.

Adding new licensed users

Perforce licenses are controlled by a text file called license. This file resides in the server root directory.

To add or update a license file, stop the Perforce Server, copy the license file into the server root directory, and restart the Perforce Server.

You can update an existing license without shutting down the Perforce Server, use p4 license -i to read the new license file from the standard input.

Most new license files obtained from Perforce can be installed with p4 license, except for when the server IP address has changed. If the server IP address has changed, or if no license file currently exists, restart the Server with p4 admin restart.

Operator users consume no licenses

Organizations whose system administrators do not use Perforce's versioning capabilities may be able to economize on licensing costs by using the operator user type.

The operator user type is intended for system administrators who, even though they have super or admin privileges, are responsible for the maintenance of the Perforce Server, rather than the development of software or other assets on the server.

There are three types of Perforce users: standard users, operator users, and service users. Standard users are the default, and each standard user consumes one Perforce license. Service users do not require licenses, but are restricted to automated inter-server communication processes in replicated and multiserver environments (see Service users). An operator user does not require a Perforce license, and can run only the following commands:

  • p4 admin stop

  • p4 admin restart

  • p4 admin checkpoint

  • p4 admin journal

  • p4 dbstat

  • p4 dbverify

  • p4 diskspace

  • p4 configure

  • p4 counter (including -f)

  • p4 counters

  • p4 journaldbchecksums

  • p4 jobs (including -R)

  • p4 login

  • p4 logout

  • p4 logappend

  • p4 logparse

  • p4 logrotate

  • p4 logschema

  • p4 logstat

  • p4 logtail

  • p4 lockstat

  • p4 monitor

  • p4 passwd

  • p4 ping

  • p4 serverid

  • p4 verify

  • p4 user

Service users

There are three types of Perforce users: standard users, operator users, and service users. A standard user is a traditional user of Perforce, an operator user is intended for human or automated system administrators, and a service user is used for server-to-server authentication, whether in the context of remote depots (see Remote depots and distributed development) or in distributed environments (see Perforce Server Administrator's Guide: Multi-site Deployment.)

Creating a service user for each Perforce service you install can simplify the task of interpreting your server logs, and also improve security by requiring that any remote Perforce services with which yours is configured to communicate have valid login tickets for your installation. Service users do not consume Perforce licenses.

A service user can run only the following commands:

  • p4 dbschema

  • p4 export

  • p4 login

  • p4 logout

  • p4 passwd

  • p4 info

  • p4 user

To create a service user, run the command:

p4 user -f service1

The standard user form is displayed. Enter a new line to set the new user's Type: to be service; for example::

User:      service1
Email:     [email protected]
FullName:  Service User for remote depots
Type:      service

By default, the output of p4 users omits service users. To include service users, run p4 users -a.

Tickets and timeouts for service users

A newly-created service user that is not a member of any groups is subject to the default ticket timeout of 12 hours. To avoid issues that arise when a service user's ticket ceases to be valid, create a group for your service users that features an extremely long timeout, or set the value to unlimited. On the master server, issue the following command:

p4 group service_users

Add service1 to the list of Users: in the group, and set the Timeout: and PasswordTimeout: values to a large value or to unlimited.

Group:            service_users
Timeout:          unlimited
PasswordTimeout:  unlimited

Permissions for service users

On your server, use p4 protect to grant the service user super permission. Service users are tightly restricted in the commands they can run, so granting them super permission is safe. If you are only using the service user for remote depots and code drops, you may further reduce this user's permissions as described in Restricting access to remote depots.

Reverting files left open by obsolete users

If files have been left open by a nonexistent or obsolete user (for instance, a departing employee), a Perforce administrator can revert the files by deleting the client workspace specification in which the files were opened.

As an example, if the output of p4 opened includes:

//depot/main/code/file.c#8 - edit default change (txt) by jim@stlouis

you can delete the stlouis client workspace specification with:

p4 client -d -f stlouis

Deleting a client workspace specification automatically reverts all files opened in that workspace, deletes pending changelists associated with the workspace, and any pending fix records associated with the workspace. Deleting a client workspace specification does not affect any files in the workspace actually used by the workspace's owner; the files can still be accessed by other employees.

Reclaiming disk space by archiving files

Over time, a Perforce server accumulates many revisions of files from old projects that are no longer in active use. Because p4 delete merely marks files as deleted in their head revisions, it cannot be used to free up disk space on the server.

Archive depots are a solution to this problem. You use archive depots to move infrequently-accessed files to bulk storage. To create one, mount a suitable filesystem, and use the p4 archive (and related p4 restore) commands to populate an archive depot located on this storage.


Archive depots are not a backup mechanism.

Archive depots are merely a means by which you can free up diskspace by reallocating infrequently-accessed files to bulk storage, as opposed to p4 obliterate, which removes file data and history.

Archiving is restricted to files that meet all of the following criteria:

  • By default, files must be stored in full (+F) or compressed (+C) format. To archive text files (or other files stored as deltas), use p4 archive -t, but be aware that the archiving of RCS deltas is computationally expensive.

  • Files must not be copied or branched from other revisions

  • Files must not be copied or branched to other revisions

  • Files must already exist in a local depot.

To create an archive depot and archive files to it:

  1. Create a new depot with p4 depot and set the depot's Type: to archive. Set the archive depot's Map: to point to a filesystem for near-line or detachable storage.

  2. Mount the volume to which the archive depot is to store its files.

  3. Use p4 archive to transfer the files from a local depot to the archive depot.

  4. (Optionally), unmount the volume to which the archive files were written.

Disk space is freed up on the (presumably high-performance) storage used for your local depot, and users can no longer access the contents of the archived files, but all file history is preserved.

To restore files from an archive depot:

  1. Mount the volume on which the archive depot's files are stored.

  2. Use p4 restore to transfer the files from the archive depot to a local depot.

  3. (Optionally), unmount the volume to which the archive files were restored.

To purge data from an archive depot

  1. Mount the volume on which the archive depot's files are stored.

  2. Use p4 archive -p to purge the archives of the specified files in the archive depot.

    On completion, the action for affected revisions is set to purge, and the purged revisions can no longer be restored. The data is permanently lost.

  3. (Optionally), unmount the volume from which the archive files were purged.

Reclaiming disk space by obliterating files


Use p4 obliterate with caution. This is the one of only two commands in Perforce that actually remove file data. (The other command that removes file data is the archive-purging option for p4 archive)

Occasionally, users accidentally add files (or entire directory trees) to the wrong areas of the depot by means of an inadvertent branch or submit. There may also be situations that require that projects not only be removed from a depot, but the history of development work be removed with it. These are the situations in which p4 obliterate can be useful.

Perforce administrators can use p4 obliterate filename to remove all traces of a file from a depot, making the file indistinguishable from one that never existed.


The purpose of a version management system is to enable your organization to maintain a history of what operations were performed on which files. The p4 obliterate command defeats this purpose; as such, it is intended only to be used to remove files that never belonged in the depot in the first place, and not as part of a normal software development process. Consider using p4 archive and p4 restore instead.

Note also that p4 obliterate is computationally expensive; obliterating files requires that the entire body of metadata be scanned per file argument. Avoid using p4 obliterate during peak usage periods.


Do not use operating system commands (erase, rm, and their equivalents) to remove files from the Perforce server root by hand.

By default, p4 obliterate filename does nothing; it merely reports on what it would do. To actually destroy the files, use p4 obliterate -y filename.

To destroy only one revision of a file, specify only the desired revision number on the command line. For instance, to destroy revision 5 of a file, use:

p4 obliterate -y file#5

Revision ranges are also acceptable. To destroy revisions 5 through 7 of a file, use:

p4 obliterate -y file#5,7


If you intend to obliterate a revision range, be certain you've specified it properly. If you fail to specify a revision range, all revisions of the file are obliterated.

The safest way to use p4 obliterate is to use it without the -y flag until you are certain the files and revisions are correctly specified.

Backing up a workspace

You can use the -o flag to the p4 unload command to unload a client, label, or task stream to a flat file on the client rather than to a file in the unload depot. This can be useful for seeding a client into another database or for creating a private backup of the client. The flat file uses standard journal format. The client, label, or task stream remains fully loaded after the command is run.

Deleting changelists and editing changelist descriptions

Perforce administrators can use the -f (force) flag with p4 change to change the description, date, or user name of a submitted changelist. The syntax is p4 change -f changenumber. This command presents the standard changelist form, but also enables superusers to edit the changelist's time, description, date, and associated user name.

You can also use the -f flag to delete any submitted changelists that have been emptied of files with p4 obliterate. The full syntax is p4 change -d -f changenumber.

Example 3. Updating changelist 123 and deleting changelist 124

Use p4 change with the -f (force) flag:

p4 change -f 123
p4 change -d -f 124

The User: and Description: fields for change 123 are edited, and change 124 is deleted.

Verifying files by signature

Perforce administrators can use the p4 verify filenames command to validate stored MD5 digests of each revision of the named files. The signatures created when users store files in the depot can later be used to confirm proper recovery in case of a crash: if the signatures of the recovered files match the previously saved signatures, the files were recovered accurately. If a new signature does not match the signature in the Perforce database for that file revision, Perforce displays the characters BAD! after the signature.

It is good practice to run p4 verify before performing your nightly system backups, and to proceed with the backup only if p4 verify reports no corruption.

For large installations, p4 verify can take some time to run. The server is also under heavy load while files are being verified, which can impact the performance of other Perforce commands. Administrators of large sites might want to perform p4 verify on a weekly basis, rather than a nightly basis.

If you ever see a BAD! signature during a p4 verify command, your database or versioned files might be corrupt, and you should contact Perforce Technical Support.

Verifying files during server upgrades

It is good practice to use p4 verify as follows before and after server upgrades:

  1. Before the upgrade, run:

    p4 verify -q //...

    to verify the integrity of your server before the upgrade.

  2. Take a checkpoint and copy the checkpoint and your versioned files to a safe place.

  3. Perform the server upgrade.

  4. After the upgrade, run:

    p4 verify -q //...

    to verify the integrity of your new system.

Defining filetypes with p4 typemap

Perforce uses the filesys.binaryscan configurable to determine how many bytes to examine when determining if a file is of type text or binary. By default, filesys.binaryscan is 65536; if the high bit is clear in the first 65536 bytes, Perforce assumes it to be text; otherwise, it is assumed to be binary. Files compressed in the .zip format (including .jar files) are also automatically detected and assigned the type ubinary.

Although this default behavior can be overridden by the use of the -t filetype flag, it's easy for users to overlook this consideration, particularly in cases where files' types are usually (but not always) detected correctly. Certain file formats, such as RTF (Rich Text Format) and Adobe PDF (Portable Document Format), can start with a series of comment fields or other textual data. If these comments are sufficiently long, such files can be erroneously detected by Perforce as being of type text.

The p4 typemap command solves this problem by enabling system administrators to set up a table that links Perforce file types with filename specifications. If an entry in the typemap table matches a file being added, it overrides the file type that would otherwise be assigned by the Perforce application. For example, to treat all PDF and RTF files as binary, use p4 typemap to modify the typemap table as follows:

        binary //....pdf
        binary //....rtf

The first three periods ("...") in the specification are a Perforce wildcard specifying that all files beneath the root directory are to be included in the mapping. The fourth period and the file extension specify that the specification applies to files ending in .pdf (or .rtf).

The following table lists recommended Perforce file types and modifiers for common file extensions.

File type

Perforce file type




Active server page file



Video for Windows file



Windows bitmap file



Btrieve database file



Conference link file



Cascading style sheet file



Microsoft Word document



Microsoft Word template



Export file (Microsoft Visual C++)



GIF graphic file



Gzip compressed file



HTML file



HTML file



Icon file



Active Server include file



Initial application settings file



JPEG graphic file



JavaScript language source code file



Library file (several programming languages)



Log file



MPEG video file



Adobe PDF file



Sybase Power Designer file



Microsoft PowerPoint file



Unity3D file



Microsoft Excel file

Use the following p4 typemap table to map all of the file extensions to the Perforce file types recommended in the preceding table.

# Perforce File Type Mapping Specifications.
#  TypeMap:     a list of filetype mappings; one per line.
#               Each line has two elements:
#               Filetype: The filetype to use on 'p4 add'.
#               Path:     File pattern which will use this filetype.
# See 'p4 help typemap' for more information.

        text //....asp
        binary+F //....avi
        binary //....bmp
        binary //....btr
        text //....cnf
        text //....css
        binary //....doc
        binary //
        binary+w //....exp
        binary+F //....gif
        binary+F //....gz
        text //....htm
        text //....html
        binary //....ico
        text //
        text+w //....ini
        binary //....jpg
        text //....js
        binary+w //....lib
        text+w //....log
        binary+F //....mpg
        binary //....pdf
        text+w //....pdm
        binary //....ppt
        binary //....xls

If a file type requires the use of more than one file type modifier, specify the modifiers consecutively. For example, binary+lFS10 refers to a binary file with exclusive-open (l), stored in full (F) rather than compressed, and for which only the most recent ten revisions are stored (S10).

For more information, see the p4 typemap page in the P4 Command Reference.

Implementing sitewide pessimistic locking with p4 typemap

By default, Perforce supports concurrent development, but environments in which only one person is expected to have a file open for edit at a time can implement pessimistic locking by using the +l (exclusive open) modifier as a partial filetype. If you use the following typemap, the +l modifier is automatically applied to all newly added files in the depot:

        +l //depot/...

If you use this typemap, any files your users add to the depot after you update your typemap automatically have the +l modifier applied, and may only be opened for edit by one user at a time. The typemap table applies only to new additions to the depot; after you update the typemap table for sitewide exclusive open, files previously submitted without +l must be opened for edit with p4 edit -t+l filename and resubmitted. Similarly, users with files already open for edit must update their filetypes with p4 reopen -t+l filename.

Forcing operations with the -f flag

Certain commands support the -f flag, which enables Perforce administrators and superusers to force certain operations unavailable to ordinary users. Perforce administrators can use this flag with p4 branch, p4 change, p4 client, p4 job, p4 label, and p4 unlock. Perforce superusers can also use it to override the p4 user command. The usages and meanings of this flag are as follows.




p4 branch

p4 branch -f branchname

Allows the modification date to be changed while editing the branch mapping

p4 branch -f -d branchname

Deletes the branch, ignoring ownership

p4 change

p4 change -f [changelist#]

Allows the modification date to be changed while editing the changelist specification

p4 change -f changelist#

Allows the description field and username in a committed changelist to be edited

p4 change -f -d changelist#

Deletes empty, committed changelists

p4 client

p4 client -f clientname

Allows the modification date to be changed while editing the client specification

p4 client -f -d clientname

Deletes the client, ignoring ownership, even if the client has opened files

p4 job

p4 job -f [jobname]

Allows the manual update of read-only fields

p4 label

p4 label -f labelname

Allows the modification date to be changed while editing the label specification

p4 label -f -d labelname

Deletes the label, ignoring ownership

p4 unlock

p4 unlock -c changelist -f file

Releases a lock (set with p4 lock) on an open file in a pending numbered changelist, ignoring ownership

p4 user

p4 user -f username

Allows the update of all fields, ignoring ownership

This command requires super access.

p4 user -f -d username

Deletes the user, ignoring ownership

This command requires super access.

Advanced Perforce administration

Encrypting connections to a Perforce server

With the addition of SSL support in 2012.1, there is no longer a need to manually configure an ssh or other VPN tunnel in order to run Perforce securely over an untrusted communication channel.

Server and client setup

For any given Perforce server, proxy, or broker, SSL encryption is an all-or-nothing option: If a Perforce server is configured to use SSL (presumably for security reasons), all Perforce applications must be configured to use SSL. Conversely, if a Perforce server is configured to accept plaintext connections (either for performance reasons or for backwards compatibility), all applications must connect in plaintext.

By default, a P4PORT setting that does not specify a protocol is assumed to be in plaintext. It is good practice to configure Perforce applications to explicitly specify the protocol, either tcp:host:port for plaintext, or ssl:host:port for encrypted connections.

The first time a user connects to an SSL-enabled server, their Perforce applications will inform them of the fingerprint of the server's key.

If the user can independently verify that the fingerprint is accurate, they should add the server to their P4TRUST file (either by using the p4 trust command, by following the prompts in P4V or other Perforce applications, or by manually adding the fingerprint to the file).

Key and certificate management

When configured to accept SSL connections, all server processes (p4d, p4p, p4broker), require a valid certificate and key pair on startup. These files are stored in the directory specified by the P4SSLDIR environment variable. In order for an SSL-enabled server process to start, the following additional conditions must be met:

  • P4SSLDIR must be set to a valid directory.

  • The P4SSLDIR directory must be owned by the same userid as the one running the Perforce server, proxy, or broker process. The P4SSLDIR directory must not be readable by any other user. On UNIX, for example, the directory's permissions must be set to 0700 (drwx------) or 0500 (dr-x------).

  • Two files, named privatekey.txt and certificate.txt, must exist in P4SSLDIR.

    These files correspond to the PEM-encoded private key and certificate used for the SSL connection. They must be owned by the userid that runs the Perforce server, proxy, and broker process, and must also have their permissions set such as to make them unreadable by other users. On UNIX, for example, the files' permissions must be set to 0600 (-rw-------) or 0400 (-r--------).

    You can supply your own private key and certificate, or you can use p4d -Gc to generate a self-signed key and certificate pair.

  • To generate a fingerprint from your server's private key and certificate, run p4d -Gf . (P4SSLDIR must be configured with the correct file names and permissions, and the current date must be valid for the certificate.)

    After you have communicated this fingerprint to your end users, your end users can then compare the fingerprint the server offers with the fingerprint you have provided. If the two fingerprints match, users can use p4 trust to add the fingerprint to their P4TRUST files.

Key and certificate generation

To generate a certificate and private key for your server:

  1. Set P4SSLDIR to a valid directory in a secure location. The directory specified by P4SSLDIR must be secure: owned by the same userid as the one generating the keypair, and it must not be readable by any other user.

  2. Optionally, create a file named config.txt in your P4SSLDIR directory before running p4d -Gc, and format the file as follows:

    # C: Country Name - 2 letter code (default: US)
    C =
    # ST: State or Province Name - full name (default: CA)
    ST =
    # L: Locality or City Name (default: Alameda)
    L =
    # O: Organization or Company Name (default: Perforce Autogen Cert)
    O =
    # OU = Organization Unit - division or unit
    OU =
    # CN: Common Name (usually the DNS name of the server)
    # (default: the current server's DNS name)
    CN =
    # EX: number of days from today for certificate expiration
    # (default: 730, e.g. 2 years)
    EX =
    # UNITS: unit multiplier for expiration (defaults to "days")
    # Valid values: "secs", "mins", "hours"UNITS =
  3. Generate the certificate and key pair with the following command:

    p4d -Gc

    If P4SSLDIR (and optionally, config.txt) has been correctly configured, and if no existing private key or certificate is found, two files, named privatekey.txt and certificate.txt, are created in P4SSLDIR.

    If a config.txt file is not present, the following default values are assumed, and a certificate is created that expires in 730 days (two years, excluding leap years).

    O=Perforce Autogen Cert
  4. Generate a fingerprint for your server's key and certificate pair.

    p4d -Gf

    This command displays the fingerprint of the server's public key, and then exits.

    Fingerprint: CA:BE:5B:77:14:1B:2E:97:F0:5F:31:6E:33:6F:0E:1A:E9:DA:EF:E2

    Record your server's fingerprint for your own records and communicate it to your users via an out-of-band communications channel.

    If a Perforce application reports a a different fingerprint (and you have not recently installed a new certificate and key pair), your users should consider such changes as evidence of a potential man-in-the-middle threat.


Because Perforce Servers can use self-signed certificates, you may also use third-party tools such as OpenSSL or PuTTY to generate the key pairs, or supply your own key pair. The p4d -Gf command accepts user-supplied credentials. The private key should be a PEM-encoded 2048-bit RSA key, stripped of any passphrase protection.

If you are supplying your own key, your privatekey.txt and certificate.txt files in P4SSLDIR must be PEM-encoded, with the private key file stripped of passphrase protection.

Whether you supply your own key and certificate pair or generate one with p4d -Gc, it is imperative that these files are stored in a secure location that is readable only by the p4d binary.

Migrating to an SSL environment

In a mixed environment, each link between Perforce servers, proxies, or brokers may be configured to be in either plaintext or SSL, independent of the encryption choice for any other link.

For example, during a migration from cleartext to SSL, a Perforce Broker may be configured to accept plaintext connections from older Perforce applications, and to forward those requests (encrypted by SSL) to a Perforce Server that requires SSL connections.

For example, a Perforce Broker could be configured to listen on tcp:old-server:1666, and redirect all requests to a target of ssl:new-server:1667. Users of new Perforce applications could use SSL to connect directly to the upgraded Perforce Server (by setting P4PORT to ssl:new-server:1667), while users of older Perforce applications could continue to use plaintext when connecting to a Perforce Broker (by setting P4PORT to old-server:1666). After migration is complete, the broker at old-server:1666 could be deactivated (or reconfigured to require SSL connections), and any remaining legacy processes or scripts still still attempting to connect via plaintext could be upgraded manually.

The Perforce Proxy and the Perforce Broker support the -Gc and -Gf flags, and use the P4SSLDIR environment variable. You generate certificate and key pairs for these processes (and confirm fingerprints) as you would with a single Perforce Server. In order for two servers to communicate over SSL, the administrator of the downstream server (typically a replica server, Proxy, or Broker process) must also use the p4 trust command to generate a P4TRUST file for the service user associated with the downstream server.

When migrating from a non-SSL environment to an SSL-based environment, it is your responsibility to securely communicate the new server's fingerprint to your users.

Secondary cipher suite

By default, Perforce's SSL support is based on the AES256-SHA cipher suite. To use CAMELLIA256-SHA, set the ssl.secondary.suite tunable to 1.

Specifying IP addresses in P4PORT

Under most circumstances, your Perforce server's P4PORT setting consists of a protocol and a port number. Users must know the IP address (or be able to resolve it from a hostname) of the Perforce server in order to connect to it.

If you specify a protocol, an IP address and a port number in P4PORT to the p4d process, the Perforce server ignores requests from any IP addresses other than the one specified in P4PORT. This configuration is useful if you need to configure p4d to listen only to a specific network interface or IP address; you can force your Perforce server to ignore all non-local connection requests by setting P4PORT==protocol:localhost:port.

Running from inetd on UNIX

Under a normal installation, the Perforce service runs on UNIX as a background process that waits for connections from users. To have p4d start up only when connections are made to it, using inetd and p4d -i, add the following line to /etc/inetd.conf:

p4dservice stream tcp nowait username /usr/local/bin/p4d p4d -i -r p4droot

and then add the following line to /etc/services:

p4dservice nnnn /tcp


  • p4dservice is the service name you choose for this Perforce server

  • /usr/local/bin is the directory holding your p4d binary

  • p4droot is the root directory (P4DROOT) to use for this Perforce server (for example, /usr/local/p4d)

  • username is the UNIX user name to use for running this Perforce server

  • nnnn is the port number for this Perforce server to use

The "extra" p4d on the /etc/inetd.conf line must be present; inetd passes this to the OS as argv[0]. The first argument, then, is the -i flag, which causes p4d not to run in the background as a daemon, but rather to serve the single client connected to it on stdin/stdout. (This is the convention used for services started by inetd.)

This method is an alternative to running p4d from a startup script. It can also be useful for providing special services; for example, at Perforce, we have a number of test servers running on UNIX, each defined as an inetd service with its own port number.

There are caveats with this method:

  • inetd may disallow excessive connections, so a script that invokes several thousand p4 commands, each of which spawns an instance of p4d via inetd can cause inetd to temporarily disable the service. Depending on your system, you might need to configure inetd to ignore or raise this limit.

  • There is no easy way to disable the server, since the p4d executable is run each time; disabling the server requires modifying /etc/inetd.conf and restarting inetd.

Case sensitivity and multiplatform development

Very early (pre-97.2) releases of the Perforce server treated all filenames, pathnames, and database entity names with case significance, whether the server was running on UNIX or Windows.

For example, //depot/main/file.c and //depot/MAIN/FILE.C were treated as two completely different files. This caused problems where users on UNIX were connecting to a Perforce server running on Windows because the filesystem underlying the server could not store files with the case-variant names submitted by UNIX users.

In release 97.3, the behavior was changed, and only the UNIX server supports case-sensitive names. However, there are still some case-sensitivity problems that users can encounter when sharing development projects across UNIX and Windows.

If you are running a pre-97.2 server on Windows, please contact to discuss upgrading your server and database.

For current releases of the server:

  • The Perforce server on UNIX supports case-sensitive names.

  • The Perforce server on Windows ignores case differences.

  • Case is always ignored in keyword-based job searches, regardless of platform.

The following table summarizes these rules.


UNIX server

Windows server

Pathnames and filenames



Database entities (workspaces, labels, and so on.)



Job search keywords



To find out what platform your Perforce server runs on, use p4 info.

Perforce server on UNIX

If your Perforce server is on UNIX, and you have users on both UNIX and Windows, your UNIX users must be very careful not to submit files whose names differ only by case. Although the UNIX server can support these files, when Windows users sync their workspaces, they'll find files overwriting each other.

Conversely, Windows users will have to be careful to use case consistently in filenames and pathnames when adding new files. They might not realize that files added as //depot/main/one.c and //depot/MAIN/two.c will appear in two different directories when synced to a UNIX user's workspace.

The UNIX Perforce server always respects case in client names, label names, branch view names, and so on. Windows users connecting to a UNIX server should be aware that the lowercased workstation names are used as the default names for new client workspaces. For example, if a new user creates a client workspace on a Windows machine named ROCKET, his client workspace is named rocket by default. If he later sets P4CLIENT to ROCKET (or Rocket, Perforce will tell him his workspace is undefined. He must set P4CLIENT to rocket (or unset it) to use the client workspace he defined.

Perforce server on Windows

If your Perforce server is running on Windows, your UNIX users must be aware that their Perforce server will store case-variant files in the same namespace.

For example, users who try something like this:

p4 add dir/file1
p4 add dir/file2
p4 add DIR/file3

should be aware that all three files will be stored in the same depot directory. The depot pathnames and filenames assigned to the Windows server will be those first referenced. (In this case, the depot pathname would be dir, and not DIR.)

Monitoring server activity

Use the p4 monitor command to observe and control Perforce-related processes running on your Perforce server machine.

Enabling process monitoring

Server process monitoring requires minimal system resources, but you must enable process monitoring for p4 monitor to work. To monitor all active commands, set the monitor configurable as follows:

p4 configure set monitor=1

Additional settings offer more options:

  • 0: Server process monitoring off. (Default)

  • 2: monitor both active commands and idle connections.

  • 5: monitor both active commands and idle connections, including a list of the files locked by the command for more than one second.

  • 10: monitor both active commands and idle connections, including a list of the files locked by the command for more than one second, with lock wait times included in the lock information.

  • 25: monitor both active commands and idle connections, including a list of the files locked by the command for any duration, with lock wait times included in the lock information.

How you set up monitoring levels 5, 10, and 25, depends on the platform where the server is running. See the description of the p4 monitor command in P4 Command Reference for more information.

Enabling idle processes monitoring

By default, IDLE processes (often associated with custom applications based on the Perforce API) are not included in the output of p4 monitor. To include idle processes in the default output of p4 monitor, use monitoring level 2.

p4 configure set monitor=2

To display idle processes, use the command:

p4 monitor show -s I

Showing information about locked files

You can use the -L option of the p4 monitor to show information about locked files. The information is collected only for the duration of the p4 monitor command and is not persisted. See the description of the p4 monitor command for more information about how to set up this kind of monitoring.

The following sample output to the p4 monitor show -L command, shows the information displayed about locked files:

8764 R user 00:00:00 edit
8766 R user 00:00:00 edit
8768 R user 00:00:00 monitor

Following pid, status, owner, and time information, output shows two edit commands that have various files locked, including the client workspace lock in exclusive mode for the workspaces ws4 and ws5, and db.locks and db.rev tables in read-only mode.

Listing running processes

To list the processes monitored by the Perforce server, use the command:

p4 monitor show

To restrict the display to processes currently in the running state, use the command:

p4 monitor show -s R

By default, each line of p4 monitor output looks like this:

pid status owner hh:mm:ss command [args]

where pid is the UNIX process ID (or Windows thread ID), status is R or T depending on whether the process is running or marked for termination, owner is the Perforce user name of the user who invoked the command, hh:mm:ss is the time elapsed since the command was called, and command and args are the command and arguments as received by the Perforce server. For example:

$ p4 monitor show
74612 R qatool     00:00:47 job
78143 R edk        00:00:01 filelog
78207 R p4admin    00:00:00 monitor

To show the arguments with which the command was called, use the -a (arguments) flag:

$ p4 monitor show -a
74612 R qatool     00:00:48 job job004836
78143 R edk        00:00:02 filelog //depot/main/src/proj/file1.c //dep
78208 R p4admin    00:00:00 monitor show -a

To obtain more information about user environment, use the -e flag. The -e flag produces output of the form:

pid client IP-address status owner workspace hh:mm:ss command [args]

where client is the Perforce application (and version string or API protocol level), IP-address is the IP address of the user's Perforce application, and workspace is the name of the calling user's current client workspace setting. For example:

$ p4 monitor show -e
74612 p4/2011.1   R qatool    buildenvir 00:00:47 job
78143    R edk       eds_elm    00:00:01 filelog
78207 p4/2011.1  R p4admin   p4server   00:00:00 monitor

By default, all user names and (if applicable) client workspace names are truncated at 10 characters, and lines are truncated at 80 characters. To disable truncation, use the -l (long-form) option:

$ p4 monitor show -a -l
74612 R qatool     00:00:50 job job004836
78143 R edk        00:00:04 filelog //depot/main/src/proj/file1.c //dep
78209 R p4admin    00:00:00 monitor show -a -l

Only Perforce administrators and superusers can use the -a, -l, and -e options.

Pausing, resuming, and terminating processes

To pause and resume long-running processes (such as p4 verify or p4 pull), a Perforce superuser can use the commands p4 monitor pause and p4 monitor resume. If a process on a Perforce Server consumes excessive resources, it can also be marked for termination with p4 monitor terminate.

Once marked for termination, the process is terminated by the Perforce server within 50000 scan rows or lines of output. Only processes that have been running for at least ten seconds can be marked for termination.

Users of terminated processes are notified with the following message:

Command has been canceled, terminating request

Processes that involve the use of interactive forms (such as p4 job or p4 user) can also be marked for termination, but data entered by the user into the form is preserved. Some commands, such as p4 obliterate, cannot be terminated.

Clearing entries in the process table

Under some circumstances (for example, a Windows machine is rebooted while certain Perforce commands are running), entries may remain in the process table even after the process has terminated.

Perforce superusers can remove these erroneous entries from the process table altogether with p4 monitor clear pid, where pid is the erroneous process ID. To clear all processes from the table (running or not), use p4 monitor clear all.

Running processes removed from the process table with p4 monitor clear continue to run to completion.

Perforce server trace and tracking flags

To modify the behavior of command tracing or performance tracking, specify the appropriate -v subsystem=value flag to the p4d startup command. Use P4LOG or the -L logfile flag to specify the log file. For example:

p4d -r /usr/perforce -v server=2 -p 1666 -L /usr/perforce/logfile

Before you activate logging, make sure that you have adequate disk space.


When running Perforce as a Windows service, use the p4 set command to set P4DEBUG as a registry variable. You can also set these trace flags when running p4d.exe as a server process from the command line.

Setting server debug levels on a Perforce server (p4d) has no effect on the debug level of a Perforce Proxy (p4p) process, and vice versa.

Higher levels of the Perforce server command tracing and tracking flags are typically recommended only for system administrators working with Perforce Technical Support to diagnose or investigate problems.

Command tracing

The server command trace flags and their meanings are as follows.

Trace flag



Disable server command logging.


Logs server commands to the server log file.

(As of release 2011.1, this is the default setting)


In addition to data logged at level 1, logs server command completion and basic information on CPU time used. Time elapsed is reported in seconds. On UNIX, CPU usage (system and user time) is reported in milliseconds, as per getrusage().


In addition to data logged at level 2, adds usage information for compute phases of p4 sync and p4 flush (p4 sync -k) commands.

For command tracing, output appears in the specified log file, showing the date, time, username, IP address, and command for each request processed by the server.

Performance tracking

The Perforce Server produces diagnostic output in the server log whenever user commands exceed certain predetermined thresholds of resource usage. Performance tracking is enabled by default, and if P4DEBUG is unset (or the tracking flag is not specified on the command line), the tracking level is computed based on the number of users in the license file.

Tracking flag



Turn off tracking.


Track all commands.


Track excess usage for a server with less than 10 users.


Track excess usage for a server with less than 100 users.


Track excess usage for a server with less than 1000 users.


Track excess usage for a server with more than 1000 users.

The precise format of the tracking output is undocumented and subject to change.

Auditing user file access

The Perforce Server is capable of logging individual file accesses to an audit logfile. Auditing is disabled by default, and is only enabled if P4AUDIT is set to point to the location of the audit log file, or if the server is started with the -A auditlog flag.

When auditing is enabled, the server adds a line to the audit log file every time file content is transferred from the server to the client. On an active server, the audit log file will grow very quickly.

Lines in the audit log appear in the form:

date time user@client clientIP command file#rev

For example:

$ tail -2 auditlog
2011/05/09 09:52:45 karl@nail diff //depot/src/x.c#1
2011/05/09 09:54:13 jim@stone sync //depot/inc/file.h#1

If a command is run on the machine that runs the Perforce Server, the clientIP is shown as

If you are auditing server activity in a replicated environment, each of your build farm or forwarding replica servers must have its own P4AUDIT log set.

Logging and structured log files

The Perforce Server can be configured to write log files in a structured (.csv) format. Structured log files contain more detail than conventional log files, are easier to parse, and the Perforce Server offers additional commands to help customize your site's logging configuration. This section summarizes the commands you use to manage logging, describes the use of structured logs, and explains how log files are rotated.


All p4d error and info logs are in UTF8 for a server in unicode mode. You need an UTF8 console or editor to properly render this log information.

Logging commands

You can use the following commands to work with logs.



p4 logappend

If the user log is enabled, write an entry to user.csv

p4 logparse

Parse a structured log file and return the logged data in tagged format

p4 logrotate

Rotate a named logfile, or, if no name is specified, all server logs. This command applies only to structured logs; it does not rotate the unstructured P4LOG or P4AUDIT logs.

p4 logstat

Report the file size of the journal (P4JOURNAL, error log (P4LOG), audit log (P4AUDIT), or the named structured log file.

p4 logtail

Output the last block of the error log (P4LOG)

p4 logschema

Return a description of the specified log record type.

Enabling structured logging

To enable structured logging, set the serverlog.file.N configurable(s) to the name of the file. Valid names for structured log files and the commands used to set them are shown in the following table.

Note that enabling all structured logging files can consume considerable diskspace. See Structured logfile rotation for information on how to manage the size of the log file and the number of log rotations.




All loggable events (commands, errors, audit, etc...)

p4 configure set serverlog.file.1=all.csv


Command events (command start, compute, and end)

p4 configure set serverlog.file.2=commands.csv


Error events (errors-failed, errors-fatal)

p4 configure set serverlog.file.3=errors.csv


Audit events (audit, purge)

p4 configure set serverlog.file.4=audit.csv


Command tracking (track-usage, track-rpc, track-db)

p4 configure set serverlog.file.5=track.csv


User events; one record every time a user runs p4 logappend.

p4 configure set serverlog.file.6=user.csv


Server events (startup, shutdown, checkpoint, journal rotation, etc.)

p4 configure set serverlog.file.7=events.csv


Major events that occur during replica integrity checking.

p4 configure set serverlog.file.8=integrity.csv

Structured logfile rotation

Each of the configured serverlog.file.N files has its own corresponding serverlog.maxmb.N and serverlog.retain.N configurables. For each configured server log type, these configurables control the maximum size (in megabytes) of the logfile before rotation, and the number of rotated server logs retained by the server.

Structured log files are automatically rotated on checkpoint, journal creation, overflow of associated serverlog.maxmb.N limit (if configured), and the p4 logrotate command. You can disable rog rotation after journal rotation by setting the configurable dmrotatewithinjnl to 0. Disabling this behavior can help when you're doing frequent journal rotations and you want the log rotated on a different schedule.

You can use the serverlog.counter.N configurable to create a counter that tracks the number of times a structured log file has been rotated. For example, the following command creates a rotation counter called myErrors:

p4 configure set serverlog.counter.3=myErrors

Each time the errors.csv log file is rotated, the counter is increased by one. In addition, the name of the log file is changed to specify the pre-incremented counter value. That is, if the counter myErrors is 7, the errors.csv file is named errors-6.csv.

You can create a counter for each file described in the preceding table. Do not use system reserved counter names for your counter: change, maxCommitChange, job, journal, traits, upgrade.

The p4 logtail command returns the current value of the counter when you logtail that log. It also returns the current size of the log at the end of the output (along with the ending offset in the log). The size and offset are identical if p4 logtail reads to the end of the log. Security monitoring tools can use counters and the p4 logtail command in the process of scanning log files to monitor suspicious activity.

Authentication options

This section introduces the options you have in authenticating users who log in to Perforce. It focuses on authenticating against Active Directory and LDAP servers without using authentication triggers.


User authentication can take place using one of three options:

  • Against an Active Directory or LDAP server that is accessed according to an LDAP specification. Enabling this option disables trigger-based authentication.

    This section focuses on this option. It notes the advantages of using this option, it explains how you create an LDAP configuration, it gives instructions on how you activate and test this configuration, and it provides reference information on the commands and configurables you use to implement this option.

  • Against Perforce's internal user database, db.user.

    This option allows password-based or ticket-based authentication. It is described in User authentication: passwords and tickets.

  • Against an LDAP server, using an authentication trigger.

    These types of triggers are used to authenticate users against an LDAP or Active Directory server. Authentication triggers fire when the p4 login or p4 password commands execute. This option is described in the section Triggering to use external authentication.

Authentication is user-based: for each user, you can specify what method should be used for authentication. Some options are mutually exclusive: enabling configuration-based LDAP authentication turns off trigger-based LDAP authentication. However, you can have some users authenticate using LDAP, while others authenticate against Perforce's internal user database. For more information, see Defining authentication for users.

Authenticating against Active Directory and LDAP servers

LDAP, Lightweight Directory Access Protocol, is supported by many directory services; chief among these is Active Directory and OpenLDAP. Perforce offers two ways of authenticating against Active Directory or LDAP servers: using an authentication trigger or using an LDAP specification. The latter method offers a number of advantages: it is easier to use, no external scripts are required, it provides greater flexibility in defining bind methods, it allows users who are not in the LDAP directory to be authenticated against Perforce's internal user database, and it is more secure.

The steps required to set up configuration-based LDAP authentication are described in the following sections. Throughout this section, information relating to LDAP authentication applies equally to using Active Directory. In broad strokes, the configuration process include the following steps:

  • Use the p4 ldap command to create an LDAP configuration specification for each LDAP or Active Directory server that you want to use for authentication.

  • Define authentication-related configurables to enable authentication, to specify the order in which multiple LDAP servers are to be searched, and to provide additional information about how LDAP authentication is to be implemented.

  • Set the AuthMethod field of the user specification for existing users to specify how they are to be authenticated.

  • Test the LDAP configurations you have defined to make sure searches are conducted as you expect.

  • If this is the first time you have enabled LDAP authentication, restart the server.


You must restart the Perforce server whenever you enable or disable LDAP authentication:

  • You enable LDAP authentication the first time you enable an LDAP configuration by setting the auth.ldap.order.N configurable.

  • You disable LDAP authentication by removing or disabling all existing LDAP configurations. You remove an LDAP configuration by using the -d option to the p4 ldap command. You disable all LDAP configurations by having no auth.ldap.order.N configurables set.

Creating an LDAP configuration

An LDAP configuration specifies an Active Directory or other LDAP server against which the Perforce server can authenticate users. You use the p4 ldap command to create configurations.

To define an LDAP configuration specification, you provide values that specify the host and port of the Active Directory or LDAP service, bind method information, and security parameters. Here is a sample LDAP configuration using the search bind method:

Name:              sleepy
Port:              389
Encryption:        tls
BindMethod:        search
SearchBaseDN:      ou=employees,dc=example,dc=com
SearchFilter:      (cn=%user%)
SearchScope:       subtree
GroupSearchScope:  subtree

You can choose among the following bind methods: SASL, simple, and search.

  • SASL: One complication of the non-SASL bind methods is that the administrator needs to know about the structure of the directory. Most LDAP and Active Directory servers have the option of binding using SASL, which only requires a username and password to authenticate a user.

    If the LDAP server supports SASL DIGEST-MD5 (Active Directory does), this method defers the user search to the LDAP server and does not require a distinguished name to be discovered before the bind is attempted. You provide a realm using the SaslRealm field of the LDAP configuration if the LDAP server has multiple realms (or domains for Active Directory). This method is recommended for Active Directory. Look how simple this is:

    BindMethod: sasl

    If your LDAP server has multiple realms (or domains in Active Directory), you might need to specify which one the LDAP configuration should be using. In this case, you'll need to set the SaslRealm field too; for example:

    BindMethod:  sasl
    SaslRealm:   example

    Active Directory supports SASL out of the box, and most LDAP servers support SASL.

  • Simple: This method is suitable for simplel directory layouts. It creates a template based on the user's name to produce a distinguished name that the Perforce server attempts to bind against, validating the user's password. The name given is set on the Simple Pattern field. For example:

    BindMethod: simple
    SimplePattern: uid=%user%,ou=users,dc=example,dc=com

    This pattern is expanded when a user is logged in. For example, if the user is jsmith, the Perforce server would attempt to bind against the DN shown below, using the password the user provided.


    This bind method only works in environments where the user's name is part of their DN and all of the users you want to authenticate are in the same organizational unit (OU).

  • Search: This method perofrms a search for the user's record in the directory, overcoming the restrictions of the simple bind method Instead of a DN pattern, an LDAP search query is provided to identify the user's record. The %user% placeholder is also used with this method. A starting point and scope for the search are provided, allowing control over how much of the directory is searched. The search relies on a known base DN and an LDAP search query; you provide these using the SearchBaseDN, SearchFilter, and SearchScope fields of the LDAP configuration specification. This method might also require the full distinguished name and password of a known read-only entity in the directory. You supply these using the SearchBindDN and SearchPasswd fields of the LDAP configuration. Here is a sample search query:

    BindMethod:    search
    SearchBaseDN:  ou=users,dc=example,dc=com
    SearchFilter:  (&(objectClass=inetOrgPerson) (uid=%user%))
    SearchScope:   subtree
    SearchBindDN:  uid=read-only, dc=example, dc=com
    SearchPasswd:  ******

See the P4 Command Reference for information about the p4 ldap command and the LDAP specification.

After you create the configuration, you must enable it using the auth.ldap.order.N configurable. For example:

p4 configure set auth.ldap.order.1=sleepy

The configuration is now active and can be used for authentication. You might also have to define additional configurables to define the authentication process. These are described in Defining LDAP-related configurables.

You might need to create multiple LDAP configurations in the following cases:

  • If you are replicating your Perforce server, you must create the LDAP configuration on each replica; you do not have to re-define the LDAP-related configurables for each replica.

  • If you are using multiple directory servers for failover or user management, you will need to create an LDAP configuration for each LDAP server; you must also use the auth.ldap.order.N configurable to specify the order in which they should be searched. Configurables are keyed on their name, therefore you may not have two LDAP configurations using the same order number for the same Perforce server.

Defining LDAP-related configurables

To use LDAP authentication, you must set a number of authentication-related configurables:

  • auth.ldap.order.N - enables an LDAP server and specifies the order in which it should be searched.

  • auth.default.method - the authentication method to be applied to new users.

  • auth.ldap.timeout - time to wait before giving up on a connection attempt.

  • auth.ldap.cafile - the path to a file used for certification when the LDAP server uses SSL or TLS.

  • auth.ldap.ssllevel - level of SSL certificate validation.

For example, the following commands define the define the search order for active directories and the default authentication method for new users to be perforce:

p4 configure set auth.ldap.order.1=sleepy
p4 configure set auth.ldap.order.2=dopey
p4 configure set auth.ldap.order.5=sneezy
p4 configure set auth.default.method=perforce

For additional information about authentication-related configurables, see the "Configurables" appendix in the P4 Command Reference.

Defining authentication for users

You use the AuthMethod field of the user specification, created with the p4 user command, to specify the authentication method to be used. You can specify one of the following values.

  • ldap indicates that the user is to be authenticated against the LDAP directory defined by an active LDAP configuration. User access can be further restricted to those users who belong to a particular LDAP group.

  • perforce indicates that the user is to be authenticated by way of an authentication trigger script if such a script exists, or by way of Perforce's db.user table if a script does not exit. This is the default setting. If LDAP authentication is enabled, trigger-based authentication is disabled.

Use the auth.method.default configurable to specify how new users are authenticated. Possible values are perforce or ldap. Setting this configurable to ldap causes any new user specifications to have the AuthMethod field set to ldap. This configurable does not change the authentication method applied to existing users.

If you have auth.method.default set to ldap, existing LDAP users trying to authenticate are allowed to be auto-created as Perforce users. This happens regardless of the value of the dm.user.noautocrate configurable. To prevent this from happening, you can use the group-related fields of the LDAP configuration to implement a simple authorization layer to filter out non-Perforce users. For example, specifying a filter like the following limits access to LDAP users who belong to the LDAP group with the common name perforce.

Base DN: ou=groups,dc=example,dc=org
LDAP query: (&(cn=perforce)(memberUid=%user%))

In this case, only users who provide the proper credentials and who are members of the specified group are authenticated. For more information about the auth.method.default configurable, see the description of the p4 configure command in the P4 Command Reference.


If a user is set to use LDAP-configuration based authentication, the user may not update their password with the p4 password command.

Authorization using LDAP groups

You use bind methods to configure user authentication, but you don't want to give everyone in your organization the ability to log in to your Perforce server, especially if everyone is in the same directory. Rather, you should create a group object in the directory that contains only authorized users. The new LDAP integration provides support for group membership.

LDAP groups work just like the search bind method, where an LDAP search query determines whether a user is a member of an allowed group and a search base and scope are also provided. For example, if there is a group in the LDAP directory named perforce, whose users are allowed to access Perforce servers, you might have a configuration like this:

GroupBaseDN:    ou=groups, dc=example, dc=com
SearchFilter:   (&(objectClass=posixGroup) (cn=perforce) (memberUid=%user%))
SearchScope:    subtree

Testing and enabling LDAP configurations

Having created an LDAP configuration, you must test and enable the configuration. The ability to test your LDAP configurations allows you to make sure everything is working properly without impacting existing users, even if they are already using an authentication trigger to authenticate against LDAP. Once the LDAP configuration proves successful, you can switch users to the new mechanism without having to recreate them. The following steps illustrate the process of testing and activating a configuration.

  1. Test the configuration using the -t flag on the p4 ldap command; for example:

    p4 ldap -t Cleopatra sleepy

    You will be prompted for the user's password. If the password is correct, the command completes successfully.

    The amount of information returned by testing depends on the search method used:

    • A simple bind returns only pass/fail feedback.

    • A search-based bind returns information about whether the user's credentials are bad and whether the user could be found.

    • SASL binds usually provide more diagnostics than simple binds, but results can vary.

  2. Define the auth.ldap.order.N to tell Perforce to in what order to use this configuration; for example:

    p4 configure set auth.ldap.order.1=sleepy

    You must set this configurable even if you are only using one configuration.

  3. Check active configurations by running the following command:

    p4 ldaps -A
  4. Restart the server:

    p4 admin restart
  5. Check that the server is running in LDAP authentication mode by running the following command:

    p4 -ztag info

    Then check to see that ldapAuth is enabled.

  6. Create additional LDAP servers if needed, and repeat steps 1, 2, 3, and 5 for each. Of course, if you add more configurations, you will need to assign a different priority to each.

  7. Migrate users to LDAP authentication by setting the authMethod to ldap for each user to be authenticated by LDAP. You might want to contact Perforce support for help in automating this process.

In addition to testing authentication against a single LDAP server, you can test against multiple servers using the p4 ldaps -t command. For more information, see the description of the see the description of the p4 ldaps -t command in the P4 Command Reference.

Getting information about LDAP servers

You can use two commands to get information about LDAP servers:

  • The p4 ldap -o command displays information about a single server.

  • The p4 ldaps command lists all defined servers or, using the -A option, lists only enabled servers in order of priority.

For more information, see the description of the two commands in P4 Command Reference.

Moving a Perforce server to a new machine

The procedure for moving an existing Perforce server from one machine to another depends on whether or not you're moving between machines

  • that use the same byte order,

  • that use different byte ordering, but the same text file (CR/LF) format, or

  • that use different byte order and a different text file format.

Additional considerations apply if the new machine has a different IP address/hostname.

The Perforce server stores two types of data under the Perforce root directory: versioned files and a database containing metadata describing those files. Your versioned files are the ones created and maintained by your users, and your database is a set of Perforce-maintained binary files holding the history and present state of the versioned files. In order to move a Perforce server to a new machine, both the versioned files and the database must be successfully migrated from the old machine to the new machine.

For more about the distinction between versioned files and database, as well as for an overview of backup and restore procedures in general, see Backup and recovery concepts.

For more information, see "Moving a Perforce Server" in the Perforce knowledge base:

Moving between machines of the same byte order

If the architecture of the two machines uses the same byte order (for example, SPARC/SPARC, x86/x86, or even 32-bit Windows to 64-bit Windows), the versioned files and database can be copied directly between the machines, and you only need to move the server root directory tree to the new machine. You can use tar, cp, xcopy.exe, or any other method. Copy everything in and under the P4ROOT directory - the db.* files (your database) as well as the depot subdirectories (your versioned files).

  1. Back up your server (including a p4 verify before the backup) and take a checkpoint.

  2. On the old machine, stop p4d.

  3. Copy the contents of your old server root (P4ROOT) and all its subdirectories on the old machine into the new server root directory on the new machine.

  4. Start p4d on the new machine with the desired flags.

  5. Run p4 verify on the new machine to ensure that the database and your versioned files were transferred correctly to the new machine.

(Although the backup, checkpoint, and subsequent p4 verify are not strictly necessary, it's always good practice to verify, checkpoint, and back up your system before any migration and to perform a subsequent verification after the migration.)

Moving between different byte orders that use the same text format

If the internal data representation (big-endian vs. little-endian) convention differs between the two machines (for example, Linux-on-x86/SPARC), but their operating systems use the same CR/LF text file conventions, you can still simply move the server root directory tree to the new machine.

Although the versioned files are portable across architectures, the database, as stored in the db.* files, is not. To transfer the database, you will need to create a checkpoint of your Perforce server on the old machine and use that checkpoint to re-create the database on the new machine. The checkpoint is a text file that can be read by a Perforce server on any architecture. For more details, see Creating a checkpoint.

After you create the checkpoint, you can use tar, cp, xcopy.exe, or any other method to copy the checkpoint file and the depot directories to the new machine. (You don't need to copy the db.* files, because they will be re-created from the checkpoint you took.)

  1. On the old machine, use p4 verify to ensure that the database is in a consistent state.

  2. On the old machine, stop p4d.

  3. On the old machine, create a checkpoint:

    p4d -jc checkpointfile

  4. Copy the contents of your old server root (P4ROOT) and all its subdirectories on the old machine into the new server root directory on the new machine.

    (To be precise, you don't need to copy the db.* files, just the checkpoint and the depot subdirectories. The db.* files will be re-created from the checkpoint. If it's more convenient to copy everything, then copy everything.)

  5. On the new machine, if you copied the db.* files, be sure to remove them from the new P4ROOT before continuing.

  6. Re-create a new set of db.* files suitable for your new machine's architecture from the checkpoint you created:

    p4d -jr checkpointfile

  7. Start p4d on the new machine with the desired flags.

  8. Run p4 verify on the new machine to ensure that the database and your versioned files were transferred correctly to the new machine.

Moving between Windows and UNIX

In this case, both the architecture of the system and the CR/LF text file convention may be different. You still have to create a checkpoint, copy it, and re-create the database on the new platform, but when you move the depot subdirectories containing your versioned files, you also have to address the issue of the differing linefeed convention between the two platforms.

Depot subdirectories can contain both text and binary files. The text files (in RCS format, ending with ",v ") and binary files (directories of individual binary files, each directory ending with ",d ") need to be transferred in different ways in order to translate the line endings on the text files while leaving the binary files unchanged.

As with all other migrations, be sure to run p4 verify after your migration.


Windows is a case-insensitive operating system. Files that differ by case only on a UNIX server will occupy the same namespace when transferred to a Windows machine. For instance, files Makefile and file makefile on a UNIX server will appear to be the same file on a Windows machine.

Due to the risk of data loss due to case collision, migrations from UNIX servers to Windows are not supported.

Contact Perforce Technical Support for assistance when migrating a Perforce server from Windows to UNIX.

Changing the IP address of your server

If the IP address of the new machine is not the same as that of the old machine, you will need to update any IP-address-based protections in your protections table. See “Administering Perforce: Protections” for information on setting protections for your Perforce server.

If you are a licensed Perforce customer, you will also need a new license file to reflect the server's new IP address. Contact Perforce Technical Support to obtain an updated license.

Changing the hostname of your server

If the hostname of the new machine serving Perforce is different from that of its predecessor, your users must change their P4PORT settings. If the old machine is being retired or renamed, consider setting an alias for the new machine to match that of the old machine, so that your users won't have to change their P4PORT settings.

Using multiple depots

New depots are defined with the command p4 depot depotname. Depots can be defined as local, stream, remote, unload, archive, or spec depots.

Just as Perforce servers can host multiple depots, Perforce applications can access files from multiple depots. These other depots can exist on the Perforce server normally accessed by the Perforce client, or they can reside within other, remote, Perforce servers.

Local depots reside on the Perforce server normally accessed by the user's Perforce application. When using local depots, a Perforce application communicates with the Perforce server specified by the user's P4PORT environment variable or equivalent setting.

Stream depots contain streams, a type of branch that includes hierarchy and policy. Like local depots, stream depots reside on the Perforce server.

When using remote depots, the user's Perforce application uses the Perforce server specified by the user's P4PORT environment variable or equivalent setting as a means to access a second, remote, Perforce server. The local Perforce server communicates with the remote Perforce server in order to access a subset of its files. Remote depots are primarily used to facilitate the sharing of code (that is, "code drops") between separate organizations, and are discussed in Remote depots and distributed development.

Remote depots are not a generalized solution for load-balancing or network access problems. To support shared development or to deal with load-balancing or network access problems, see the material in Perforce Server Administrator's Guide: Multi-site Deployment.

Archive depots are used for near-line or offline storage of infrequently-accessed content. For details, see Reclaiming disk space by archiving files.

The unload depot is analogous to the archive depot, but provides a place to store infrequently-accessed metadata (specifically, metadata concerning client workspaces and labels) rather than old versioned files. There can be only one unload depot per server. For details, see Unloading infrequently-used metadata.

The spec depot is a special case. If present, the spec depot tracks changes to user-edited forms such as client workspace specifications, jobs, branch mappings, and so on. There can be only one spec depot per server.

Naming depots

Depot names share the same namespace as branches, client workspaces, and labels. For example, //rel2 refers uniquely to one of the depot rel2, the workspace rel2, the branch rel2, or the label rel2; you can't simultaneously have both a depot and a label named rel2.

Defining new local depots

To define a new local depot (that is, to create a new depot in the current Perforce server namespace), call p4 depot with the new depot name, and edit only the Map: field in the resulting form.

For example, to create a new depot called book with the files stored in the local Perforce server namespace in a root subdirectory called book (that is, $P4ROOT/book), enter the command p4 depot book, and fill in the resulting form as follows:

Depot:       book
Type:        local
Address:     local
Suffix:      .p4s
Map:         book/...

The Address: and Suffix: fields do not apply to local depots and are ignored.

By default, the Map: field on a local depot points to a depot directory matching the depot name, relative to the server root (P4ROOT) setting for your server. To store a depot's versioned files on another volume or drive, specify an absolute path in the Map: field. This path need not be under P4ROOT. Absolute paths in the Map: field on Windows must be specified with forward slashes (for instance, d:/newdepot/) in the p4 depot form.

Enabling versioned specifications with the spec depot

In order for your users to retrieve change histories of user-edited forms, you must enable versioned specifications. The spec depot can have any name, but it must be of type spec, and there can only be one spec depot per server. (If you already have a spec depot, attempting to create another one results in an error message.)


As of Release 2011.1, the first line of every saved form stored in the spec depot is a comment line that identifies the user who most recently changed the form:

# The form data belowwas edited by username

After you have enabled versioned specs by creating the spec depot, all user-generated forms (such as client workspace specifications, jobs, branch mappings, and so on) are automatically archived as text files in the spec depot. Filenames within the spec depot are automatically generated by the server, and are represented in Perforce syntax as follows:


Some formtypes (for example, the protect, triggers, and typemap forms) are unique to the server, and do not have corresponding objectnames.

Creating the spec depot

To create a spec depot named //spec, enter p4 depot spec, and fill in the resulting form as follows:

Depot:       spec
Type:        spec
Address:     local
Map:         spec/...
SpecMap:     //spec/...
Suffix:      .p4s

The Address: field does not apply to spec depots and is ignored.

Using a Suffix: is optional, but specifying a file extension for objects in the spec depot simplifies usability for users of applications such as P4V, because users can associate the suffix used for Perforce specifications with their preferred text editor. The default suffix for these files is .p4s.

For example, if you create a spec depot named spec, and use the default suffix of .p4s, your users can see the history of changes to job000123 by using the command:

p4 filelog //spec/job/job000123.p4s

or by using P4V to review changes to job000123.p4s in whatever editor is associated with the .p4s file extension on their workstation.

The default SpecMap: of //spec/... indicates that all specs are to be versioned.

Populating the spec depot with current forms

After you create a spec depot, you can populate it with the p4 admin updatespecdepot command. This command causes the Perforce Server to archive stored forms (specifically, client, depot, branch, label, typemap, group, user, and job forms) into the spec depot.

To archive all current forms, use the -a flag:

p4 admin updatespecdepot -a

To populate the spec depot with only one type of form (for instance, extremely large sites might elect to update only one table at a time), use the -s flag and specify the form type on the command line. For example:

p4 admin updatespecdepot -s job

In either case, only those forms that have not yet been archived are added to the spec depot; after the spec depot is created, you only need to use p4 admin updatespecdepot once.

Controlling which specs are versioned

By default, all specs (//spec/...) are versioned. You can use the SpecMap: field to control which specs are versioned by adding lines in depot syntax that include (or exclude) paths in the spec depot.

For example, you can exclude the protections table from versioning by configuring your spec depot's SpecMap: field as follows:


In an environment such as a build farm, in which large numbers of temporary client workspaces and/or labels are created, you can configure the spec depot to exclude them, while keeping track of other changes to client workspaces and labels. For example, a spec depot configured with the following spec mapping:


will no longer track changes to client workspaces whose names begin with build_ws_, nor will it track changes to labels whose names begin with temp_label_.

Note that adding or changing the SpecMap: field only affects future updates to the spec depot; files already stored in the spec depot are unaffected.

Large sites and old filesystems: spec.hashbuckets

This configurable defines the number of buckets (subdirectories) into which files in the spec depot are hashed. By default, spec.hashbuckets is 99; for each type of object, directories associated with objects in the spec depot are allocated between 99 subdirectories.

To disable hashing, set spec.hashbuckets to 0, as follows:

p4 configure set spec.hashbuckets=0

With hashing disabled, for each subdirectory for each spec type, one sub-subdirectory is created for each object, and all of these sub-subdirectories are stored in one single subdirectory. Disabling hashing may subject your installation to filesystem-imposed limitations on the maximum number of subdirectories in any one directory (for example, the 32K limit imposed by older ext2, ext3, and ufs filesystems).

Listing depots

To list all depots known to the current Perforce server, use the p4 depots command.

Deleting depots

To delete a depot, use p4 depot -d depotname.

To delete a depot, it must be empty; you must first obliterate all files in the depot with p4 obliterate.

For local and spec depots, p4 obliterate deletes the versioned files as well as all their associated metadata. For remote depots, p4 obliterate erases only the locally held client and label records; the files and metadata still residing on the remote server remain intact.

Before you use p4 obliterate, and especially if you're about to use it to obliterate all files in a depot, read and understand the warnings in Reclaiming disk space by obliterating files.

In a distributed environment, the unload depot may have different contents on each edge server. Since the commit server does not verify that the unload depot is empty on every edge server, you must specify p4 depot -d -f in order to delete the unload depot from the commit server. For more information, see Perforce Server Administrator's Guide: Multi-site Deployment.

Remote depots and distributed development

Remote depots are designed to support shared code, not shared development. They enable independent organizations with separate Perforce installations to integrate changes between Perforce installations. Briefly:

  • A "remote depot" is a depot on your Perforce server of type remote. It acts as a pointer to a depot of type "local" that resides on a second Perforce server.

  • A user of a remote depot is typically a build engineer or handoff administrator responsible for integrating software between separate organizations.

  • Control over what files are available to a user of a remote depot resides with the administrator of the remote server, not the users of the local server.

  • See Restricting access to remote depots for security requirements.

When to use remote depots

Perforce is designed to cope with the latencies of large networks and inherently supports users with client workspaces at remote sites. A single Perforce installation is ready, out of the box, to support a shared development project, regardless of the geographic distribution of its contributors.

Partitioning joint development projects into separate Perforce installations does not improve throughput, and usually only complicates administration. If your site is engaged in distributed development (that is, developers in multiple sites working on the same body of code), it is better to set up a distributed Perforce installation. For information on setting up and monitoring a distributed Perforce configuration, see the Perforce Server Administrator's Guide: Multi-site Deployment manual.

If, however, your organization regularly imports or exports material from other organizations, you might want to consider using Perforce's remote depot functionality to streamline your code drop procedures.

How remote depots work

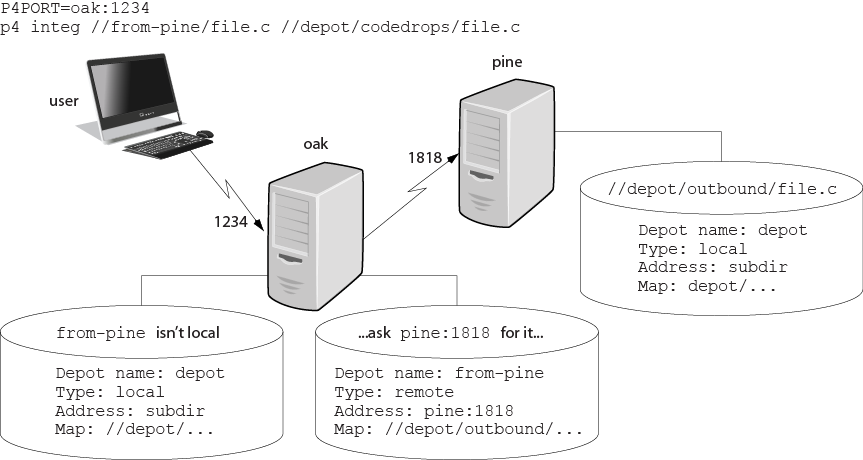

The following diagram illustrates how Perforce applications use a user's default Perforce server to access files in a depot hosted on another Perforce server.

In this example, an administrator of a Perforce server at oak:1234 is retrieving a file from a remote server at pine:1818.

Although it is possible to permit individual developers to sync files from remote depots into their client workspaces, this is generally an inefficient use of resources.

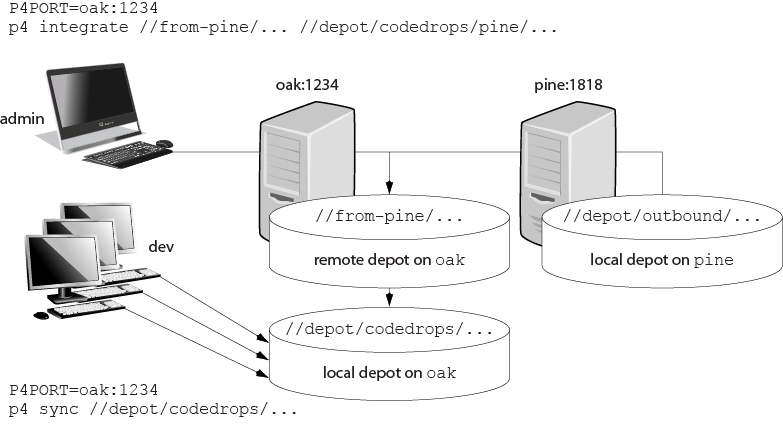

The preferred technique for using remote depots is for your organization's build or handoff administrator to integrate files from a remote depot into an area of your local depot. After the integration, your developers can access copies of the files from the local depot into which the files were integrated.

To accept a code drop from a remote depot, create a branch in a local depot from files in a remote depot, and then integrate changes from the remote depot into the local branch. This integration is a one-way operation; you cannot make changes in the local branch and integrate them back into the remote depot. The copies of the files integrated into your Perforce installation become the responsibility of your site's development team; the files on the depot remain under the control of the development team at the other Perforce installation.

Restrictions on remote depots

Remote depots facilitate the sharing of code between organizations (as opposed to the sharing of development within a single organization). Consequently, access to remote depots is restricted to read-only operations, and server metadata (information about client workspaces, changelists, labels, and so on) cannot be accessed using remote depots.

Using remote depots for code drops

Performing a code drop requires coordination between two organizations, namely the site receiving the code drop and the site providing the code drop. In most cases, the following three things must be configured:

  • The Perforce administrator at the site receiving the code drop must create a remote depot on his or her Perforce server that points to the site providing the code drop.

    This is described in Defining remote depots.

  • The Perforce administrator at the site providing the code drop should configure his or her Perforce server to allow the recipient site's remote depot to access the providing site's Perforce server.

    This is described in Restricting access to remote depots.

  • The configuration manager or integration manager at the receiving site must integrate the desired files from the remote depot into a local depot under his or her control.

    This is described in Receiving a code drop.

Defining remote depots

To define a new remote depot:

  1. Create the depot with p4 depot depotname.

  2. Set the Type: to remote.

  3. Direct your Perforce server to contact the remote Perforce server by providing the remote server's name and listening port in the Address: field.

    A remote server's host and port are specified in the Address: field just as though it were a P4PORT setting.

  4. Set the Map: field to map into the desired portion of the remote server's namespace.

    For remote depots, the mapping contains a subdirectory relative to the remote depot namespace. For example, //depot/outbound/... maps to the outbound subdirectory of the depot named depot hosted on the remote server.

    The Map: field must contain a single line pointing to this subdirectory, specified in depot syntax, and containing the "..." wildcard on its right side.

    If you are unfamiliar with client views and mappings, see the P4 User's Guide for general information about how Perforce mappings work.

  5. The Suffix: field does not apply to remote depots; ignore this field.

In order for anyone on your site to access files in the remote depot, the administrator of the remote server must grant read access to user remote to the depots and subdirectories within the depots specified in the Map: field.

Example 4. Defining a remote depot

Lisa is coordinating a project and wants to provide a set of libraries to her developers from a third-party development shop. The third-party development shop uses a Perforce server on host pine that listens on port 1818. Their policy is to place releases of their libraries on their server's single depot depot under the subdirectory outbound.

Lisa creates a new depot from which she can access the code drop; she'll call this depot from-pine; she'd type p4 depot from-pine and fill in the form as follows:

Depot:       from-pine
Type:        remote
Address:     pine:1818
Map:         //depot/outbound/...

This creates a remote depot called from-pine on Lisa's Perforce server; this depot (//from-pine) maps to the third party's depot's namespace under its outbound subdirectory.

Restricting access to remote depots

Remote depots are accessed either by a virtual user named remote, or (if configured) by the service user of the accessing server's p4d. Service users (including the virtual remote user) do not consume Perforce licenses.


Perforce Servers at release 2010.2 authenticate as remote to older Perforce servers, and either as remote (if no service user is configured), or as the service user (if configured) to Perforce Servers at release 2010.2 and above.

By default, all files on a Perforce server can be accessed remotely. To limit or eliminate remote access to a particular server, use p4 protect to set permissions for user remote (or the remote site's service user) on that server. Perforce recommends that administrators deny access to user remote across all files and all depots by adding the following permission line in the p4 protect table:

list user remote * -//...

Because remote depots can only be used for read access, it is not necessary to remove write or super access to user remote (or the service user).

As of Release 2010.2, it remains good practice to deny access to user remote. If the Perforce Servers at partner sites are configured to use service users, you can use their service users to further restrict which portions of your server are available for code drops.

Example security configuration

Using the two organizations described in Receiving a code drop, a basic set of security considerations for each site would include:

On the local (oak) site:

  • Deny access to //from-pine to all users. Developers at the oak site have no need to access files on the pine server by means of the remote depot mechanism.

  • Grant read access to //from-pine to your integration or build managers. The only user at the oak site who requires access the //from-pine remote depot is the user (in this example, adm) who performs the integration from the remote depot to the local depot.

    The oak administrator adds the following lines to the p4 protect table:

list user * * -//from-pine/...
read user adm * //from-pine/...

On the remote (pine) site, access to code residing on pine is entirely the responsibility of the pine server's administrator. At a minimum, this administrator should:

  • Preemptively deny access to user remote across all depots from all IP addresses:

    list user remote * -//...

    Adding these lines to the p4 protect table is sound practice for any Perforce installation whether its administrator intends to use remote depots or not.

  • If both servers are at Release 2010.2 or higher: contact the oak site's administrator and obtain the name of the oak site's service user.

    In this example, the oak site's service user is service-oak. When a user of the oak server accesses a remote depot hosted on pine, the oak server will authenticate with the pine server as a user named service-oak.

    As administrator of the pine site, you must:

  • Create a service user on your site named service-oak. (see Service users). This user's name must match the name of the receiving site's service user.

  • Assign this user a strong password.

  • Inform the oak administrator of this password.

    The administrator of the oak site must:

  • Use the password set by the pine administrator to obtain a ticket valid for pine for the user service-oak (that is, run p4 login service-oak against the pine server).

  • Place the ticket somewhere where the oak server's p4d process can access it. (For example, the .p4tickets file in the server's root directory, with P4TICKETS set to point to the location of the ticket file.)

  • Configure oak to work with the pine service user, either by starting oak's p4d process with the -u service-oak flag, or configure the server with p4 configure set serviceUser=service-oak.)

  • Grant read access to user remote (or the oak site's service user) to only those areas of the pine server into which code drops are to be placed. Further restrict access to requests originating from the IP address of the Perforce server that is authorized to receive the code drop.

    In this example, outgoing code drops reside in //depot/outbound/... on the pine server. If oak's IP address is, the pine site's protections table looks like:

list user remote * -//...
read user remote //depot/outbound/...
  • If both sites are at Release 2010.2 or higher, and the oak server is configured to use service-oak as its service user, the pine site's protections table looks like:

    list user remote * -//...
    list user service-oak * -//...
    read user service-oak //depot/outbound/...

    Only Perforce Servers at IP address that have valid tickets for the pine site's service-oak user, are permitted to access the pine server through remote depots, and only //depot/outbound/... is accessible.

Receiving a code drop

To perform a handoff or code drop between two Perforce installations:

  1. Developers on pine:1818 complete work on a body of code for delivery.

  2. The build or release manager on pine:1818 branches the deliverable code into an area of pine:1818 intended for outbound code drops. In this example, the released code is branched to //depot/outbound/...

  3. A Perforce administrator at oak:1234 configures a remote depot called //from-pine on the oak server. This remote depot contains a Map: field that directs the oak server to the //depot/outbound area of pine:1818.

  4. Upon notification of the release's availability, a build or release manager at oak:1234 performs the code drop by integrating files in the //from-pine/... remote depot into a suitable area of the local depot, such as //depot/codedrops/pine.

  5. Developers at oak:1234 can now use the pine organization's code, now hosted locally under //depot/codedrops/pine. Should patches be required to pine's code, oak developers can make such patches under //depot/codedrops/pine. The pine group retains control over its code.

Setting up and managing Unicode installations

The following sections describe the benefits of running the Perforce server in Unicode mode and explain how you enable this mode.


Converting a server to Unicode mode is a one-way operation! You cannot restore a Unicode server to its previous state.


The Perforce server can be run in Unicode mode to convert certain elements from their unicode representation on the server, to the particular character set used on clients connected to the server. The following elements are converted:

  • File names or directory names that contain Unicode characters

  • Perforce identifiers (for example, user names) and specifications (for example, changelist descriptions or jobs) that contain Unicode characters

    If you need to manage textual files that contain Unicode characters, but do not need the features listed above, you do not need to run your server in Unicode mode. For such installations, assign the Perforce utf16 file type to textual files that contain Unicode characters.

  • unicode files and metadata. These are converted to the character set configured on the user's machine.

    The Perforce server also verifies that the unicode files and metadata contain valid UTF-8 characters.

Normally, setting the server in Unicode mode should automatically configure the appropriate rendering for each client, independently of the platform where it runs. However, there are some cases in which you might also have to configure the client. The following subsections describe how you set up the server and the client if needed, and offer some troubleshooting tips.


All p4d error and info logs are in UTF8 for a server in unicode mode. You need an UTF8 console or editor to properly render this log information.

Setting up a server for Unicode

How you configure a Unicode-mode server and the workstations that access it, depends on whether you are starting a server for the first time or whether you are converting an existing non-unicode server to unicode mode. The following sections explain each use case.


The Perforce service limits the lengths of strings used to index job descriptions, to specify filenames and view mappings, and to identify client workspaces, labels, and other objects. The most common limit is 2,048 bytes. Because no basic Unicode character expands to more than three bytes, you can ensure that no name exceeds the Perforce limit by limiting the length of object names and view specifications to 682 characters for Unicode-mode servers.

Configuring a new server for Unicode

To configure a new server for Unicode, start the server using the following command:

p4d -xi -r server_root [other options]

This command verifies that all existing metadata is valid UTF8, and then sets the protected counter unicode to indicate that the server now runs in Unicode mode. If you stop and restart the server, it remains in Unicode mode. Once you have placed the server in this mode, you cannot change it to non-unicode mode.

When a client connects to the server, it attempts to discover what the server's setting is, and it sets the P4_port_CHARSET variable to reflect that setting. If the server is not in unicode mode, the variable is set to none. If the server is set to Unicode, the variable is set to auto. Likewise, the client sets the P4CHARSET variable to auto. The client then examines its environment to figure out what character set it needs to select.

The P4_port_CHARSET variable is stored in a file called .p4enviro. By default, this file is stored in the user's home directory. To change the file location, the user must set the P4ENVIRO variable to the desired path.

Configuring an existing server for Unicode

To convert an existing server to Unicode mode, perform the following steps:

  1. Stop the server by issuing the p4 admin stop command.

  2. Create a server checkpoint, as described in “Supporting Perforce: Backup and Recovery”.

  3. Convert the server to Unicode mode by invoking the server (p4d) and specifying the -xi flag, for example:

    p4d -xi -r server_root

    The server verifies that its existing metadata contains only valid UTF-8 characters, then creates and sets a protected configurable called unicode, which is used as a flag to ensure that the next time you start the server, it runs in Unicode mode. After validating metadata and setting the configurable, p4d exits and displays the following message:

    Server switched to Unicode mode.

    If the server detects invalid characters in its metadata, it displays error messages such as the following:

    Table db.job has 7 rows with invalid UTF8.

    In case of such errors, contact Perforce Technical Support for instructions on locating and correcting the invalid characters.

  4. Restart p4d, specifying server root and port as you normally do. The server now runs in Unicode mode.

When a client connects to the server, it attempts to discover what the server's setting is and it sets the P4_port_CHARSET variable to reflect that setting. If the server is not in unicode mode, the variable is set to none. If the server is set to Unicode, the variable is set to auto. Likewise, the client sets the P4CHARSET variable to auto. The client then examines its environment to figure out what character set it needs to select.

The P4_port_CHARSET variable is stored in a file called .p4enviro. By default, this file is stored in the user's home directory. To change the file location, the user must set the P4ENVIRO variable to the desired path.

Localizing server error messages

By default, the Perforce server informational and error messages are in English. You can localize server messages. To ensure best results, contact Perforce Technical Support. The following overview explains the localization process.

To localize Perforce server messages:

  1. Obtain the message file from Perforce Technical Support.

  2. Edit the message file, translating messages to the target language. Each message includes a two-character language code. Change the language code from en (English) to the code for the target language. Do not translate any of the key parameters or named parameters (which are specified between percent signs and single quotes, for example, %depot%). You can change the order in which the parameters appear in the message.

    Original English:

    @en@ 0 @db.message@ @en@ 822220833 @Depot '%depot%' unknown - use 'depot'
    to create it.@

    Correct translation to Portuguese (note reordered parameters):

    @pt@ 0 @db.message@ @pt@ 822220833 @Depot '%depot' inexistente - use o comando 'depot' para criar-lo.@

    Although you are free to use any two-letter language code to designate the target language (so long as it's not "en," you might want to use a standard convention, such as the one described here:

    Many messages use Perforce command names. It is important to distinguish the word as a command name from the word as a description. For example:

    @Depot '%depot%' unknown - use 'depot' to create it.@

    In this case, 'depot' and '%depot%' should not be translated.

  3. Load the translated messages into the server by issuing the following command:

    p4d -jr /fullpath/message.txt

    This command creates a db.message file in the server root. The Perforce service uses this database file when it displays error messages. The Perforce proxy can also use this db.message file; see the section on localizing P4P in Perforce Server Administrator's Guide: Multi-site Deployment

  4. The character set of the resulting translation needs to be UTF-8 for unicode mode servers. That file should not have a leading Byte-order-mark (BOM).

    If the target server is not in Unicode mode, the translation file does not need to be in UTF-8. In this case you might want multiple instances of the translated messages in multiple character sets. You can effect this by combining the language code field with a character set name. For example, @ru_koi8-r@ to indicate Russian with a koi8-r encoding versus @ru_iso8859-5@ to indicate Russian with an ISQ encoding.

  5. You can load translated message files into a p4d server by recovering them with the server's journal recovery command:

    p4d -r server_root -jr translated_message_file

To view localized messages, set the P4LANGUAGE environment variable on user workstations to the language code you assigned to the messages in the translated message file. For example, to have your messages returned in Portuguese, set P4LANGUAGE to pt.

To view localized messages using P4V, you must set the LANG environment variable to the language code that you use in the messages file.

Configuring clients for Unicode

When you set up a server to work in unicode mode, the client determines what character set to use by examining the current environment and, generally, you should have nothing more to do to get a correct translation. For example a UNIX client examines the LANG or LOCALE variables to determine the appropriate character set. However, there might be situations when you need to override the selection made by the client:

In each of these cases, you will need to explicitly set P4CHARSET to an appropriate value or take some other action. To get a list of the possible values for P4CHARSET, use the command:

p4 help P4CHARSET


Do not submit a file using a P4CHARSET that is different than the one you used to sync it; the file is translated in a way that is likely to be incorrect. That is to say, do not change the value of P4CHARSET while files are checked out.

UTF character sets and Byte Order Markers (BOMs)

Byte order markers (BOMs) are used in UTF files to specify the order in which multibyte characters are stored and to identify the file content as Unicode. Not all extended-character file formats use BOMs.

To ensure that such files are translated correctly by the Perforce server when the files are synced or submitted, you must set P4CHARSET to the character set that corresponds to the format used on your workstation by the applications that access them, such as text editors or IDEs. Typically the formats are listed when you save the file using the Save As... menu option.

The following table lists valid settings for P4CHARSET for specifying byte order properties of UTF files.

Client Unicode format


Big or Little-Endian







Suppresses Perforce server UTF-8 validation









Per client


Synced with a BOM according to the client platform byte order




Best choice for Windows Unicode files





Per client










Per client


Synced with a BOM according to the client platform byte order








Per client








If you set P4CHARSET to a UTF-8 setting, the Perforce server does not translate text files when you sync or submit them. Perforce does verify that such files contain valid UTF-8 data.

Controlling translation of server output

If you set P4CHARSET to any utf16 or utf32 setting, you must set the P4COMMANDCHARSET to a non-utf16 or non-utf32 character set in which you want server output displayed. "Server output" includes informational and error messages, diff output, and information returned by reporting commands.

To specify P4COMMANDCHARSET on a per-command basis, use the -Q flag. For example, to display all filenames in the depot, as translated using the winansi code page, issue the following command:

p4 -Q winansi files //...

Using other Perforce client applications

If you are using other Perforce client applications, note how they handle Unicode environments:

  • P4V (Perforce Visual Client): the first time you connect to a Unicode-mode server, you are prompted to choose the character encoding. Thereafter, P4V retains your selection in association with the connection. P4V also has a global default setting for Charset. If you set this, it will be used instead of asking you to provide a charset.

  • P4Eclipse will ask for a charset when connecting to a Unicode-mode server.

  • P4Web: when you invoke P4Web, you can specify the character encoding on the command line using the -C flag. P4Web uses this flag when it sends commands to a Unicode-mode server. This approach means that each instance of P4Web can handle a single character encoding and that browser machines must have compatible fonts installed.

  • P4Merge: To configure the character encoding used by P4Merge, choose P4Merge's File > Character Encoding... menu option. When launched from P4V, P4Merge uses P4V's P4CHARSET instead of the one defined in it's preferences.

  • IDE SCC plug-in: the first time you connect to a Unicode-mode server, you are prompted to choose the character encoding. Thereafter, the plug-in retains your selection in association with the connection.

  • P4GT and P4EXP use environmental settings and will fail with a Unicode-mode server.

Troubleshooting user workstations in Unicode installations

To prevent file corruption, it is essential that you configure your workstation correctly. The following section describes common problems and provides solutions.

  • "Cannot Translate" error message

    This message is displayed if your workstation is configured with a character set that does not include characters that are being sent to it by the Perforce server. Your workstation cannot display unmapped characters. For example, if P4CHARSET is set to shiftjis and your depot contains files named using characters from the Japanese EUC character set that do not have mappings in shift-JIS, you see the "Cannot translate" error message when you list the files by issuing the p4 files command.

    To ensure correct translation, do not use unmappable characters in Perforce user specifications, client specifications, jobs, or file names.

  • Strange display of file content

    If you attempt to display an extended-character text file and see odd-looking text, your workstation might lack the font required to display the characters in the file. Typical symptoms of this problem include the display of question marks or boxes in place of characters. To solve this problem, install the required font.

Configuring P4V settings

Not every site (nor every user at every site) requires the full suite of functionality in P4V, the Perforce Visual Client. By using the p4 property command, it is possible for an administrator to control, on a site-wide, per-group, or per-user basis, which features are available from within P4V. Properties relate to performance, features, or enabling the rich comparison of Microsoft .docx files. Performance and feature-related properties set at the server level override local P4V settings.

Configuring performance-related properties

If a user connects to a new Perforce service, performance-related properties are reloaded for the Perforce service to which the user has most recently connected.




Number of changelists, jobs, branch mappings, or labels to fetch at any one time.


Limits the number of files to check in the 'opened' call during a rollback operation. Default value is 1000. If the number of files to roll back exceeds the configured value, a popup informs the user that no opened check will be performed, and asks if the user wants to complete the operation.


Maximum number of files displayed per changelist.


Maximum number of files displayed per changelist.


Maximum size of files to preview, in kilobytes.


Number of time between display refreshes, in minutes.

Configuring feature-related properties

You can use the following properties to enable or disable P4V features. These properties are read once, upon P4V startup, from the first service to which the user connects. Features that are deactivated by setting these properties to Off are unavailable in P4V and do not display in P4V's Preferences page:




If Off, users cannot integrate.


If Off, the labels tab does not appear.


If Off, jobs support is disabled. Jobs do not appear in changelists, etc.


If Off, the Revision Graph is disabled.


If Off, Time-Lapse View is disabled.


If Off, the Manage Custom Tools dialog is disabled.


If Off, the Administration menu option is not displayed.


If Off, P4V does not attempt to use the New Connection Wizard.


If Off, users cannot edit or display their own (or other users') workspaces.


If Off, the Dashboard is not displayed.


If Off, Perforce applets are disabled in P4V, and the menu option to re-enable them is no longer accessible.


If Off, Perforce Sandbox functionality is disabled.


If Off, streams-related icons, menus, and the Stream Graph do not appear.

For example, the administrator of a site that does not use Perforce's built-in defect tracking can disable access to jobs from within P4V by running:

p4 property -a -n P4V.Features.Jobs -v Off

A new property is added/updated (-a), it is named (-n) P4V.Features.Jobs, and it is assigned the value (-v) of Off.

If one group of users within the organization has a need to use the jobs functionality of P4V, the feature can be selectively (and centrally) re-enabled for those users with:

p4 property -a -n P4V.Features.Jobs -v On -g jobusers

The jobs feature of P4V is re-enabled by setting its value to On, but only for users in the jobusers group.

Enabling .docx diffs

You can use the P4.Combine.URL property to enable the rich comparison of Microsoft Word .doxc files through P4Merge. You must deploy P4Combine as part of a Commons deployment to use this feature.

To enable the feature, set the P4.Combine.URL server property to the P4Combine Web Service URL. P4V will then display a rich compare of .docx files in the P4Merge window, using HTML5 to show differences for text, images, formats, styles, tables, headers, footers, and other objects.
