Add a project

On the Swarm Projects page, click the + Add Project button.

Note
The ability to add projects can be limited to administrators only, or limited to members of specific groups. When limited, users who are not administrators, or a member of the specified group, will not see the + Add Project button.

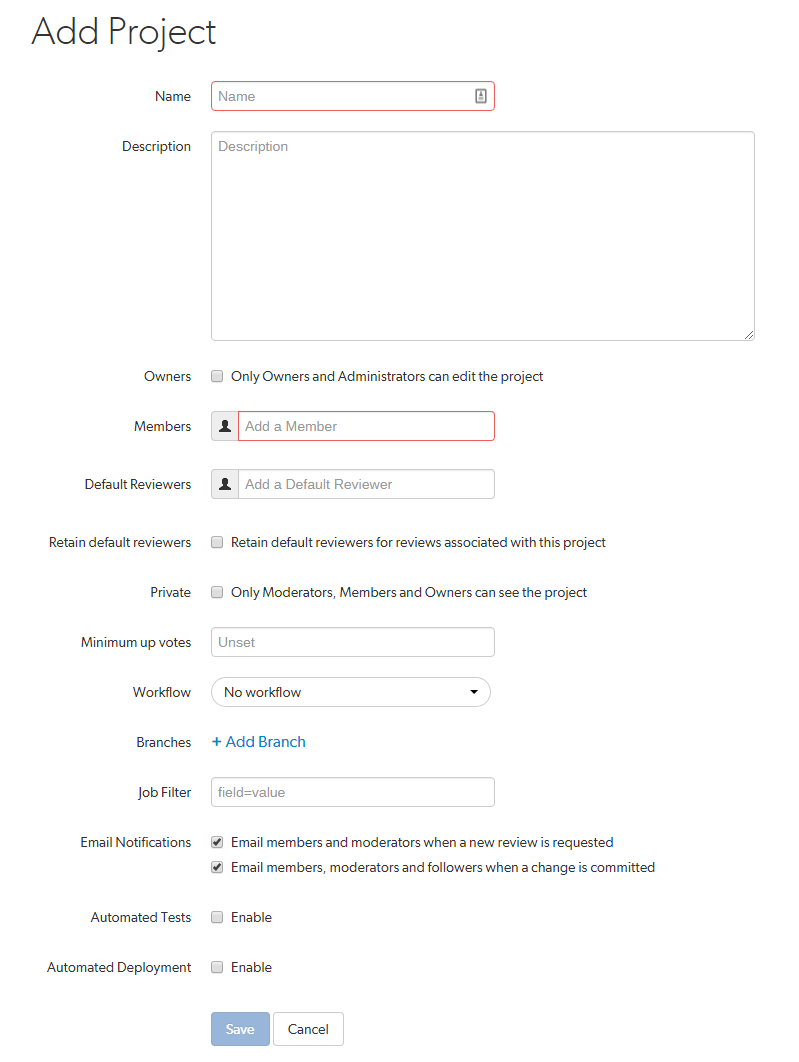

The Add Project page is displayed:
Provide a name for the project.
Optional: provide a description.
Optional: select the Only Owners and Administrators can edit the project checkbox. When checked, a field is displayed allowing you to add a new owner. The field auto-suggests users within Helix Server as you type.

Once specified, modifying the project's definition is restricted to project owners and administrators (users with admin-level or super-level privileges in Helix Server).

Note
You cannot specify a group as an owner.

Tip
By default, if the Only Owners and Administrators can edit the project check box is selected for a project, only the project owners and administrators can view the project Settings page.

This behavior can be changed by your Swarm administrator to allow project members that are not owners or administrators to view a read-only version of the project Settings page, see Allow project members to view project settings. The project Automated Tests and Automated Deployment details are hidden from project members unless they are an owner or an administrator. This enables project members to check the project settings but not change them.
Specify at least one team member. This field auto-suggests projects, groups, and users within Helix Server as you type (up to a combined limit of 20 entries).

Important
During project creation, if you do not have admin privileges and you do not add yourself as a member or as an owner, you cannot edit this project's configuration later.

See Membership for more details.
Default reviewers:
1. Optional: specify Default Reviewers for the project.
2. Optional: click the Retain default reviewers checkbox to prevent default reviewers being removed from reviews associated with this project.
Optional: click the Private checkbox to make this project private. Private projects and their associated reviews are only visible to project owners, moderators, and members, plus users with super privileges in Helix Server.

For more information, see Private projects.
Optional: set the Minimum up votes required for reviews associated with this project.

When Minimum up votes is set on a project, the project setting is used on the project branches unless Minimum up votes is set to 1 or higher on a branch. In this case the branch setting is used and the project setting is ignored.

A review cannot be approved until all of the Required reviewers have voted up the review and the Minimum up votes specified has been satisfied.
- If a review spans projects/branches, the Minimum up votes for each of the projects and branches must be satisfied before you can approve the review.
- Required reviewers are included when up votes are counted.
- When Count votes up from is set to Members for a workflow associated with a project/branch, only the up votes of members of the project contribute to satisfying the Minimum up votes for a project/branch. For more information about the Count votes up from rule, see Workflow rules.
Important
If the Minimum up votes required is set higher than the number of reviewers that exist for a review, approval will be blocked for that review. This is true even if all the reviewers on the review have voted up the review.
Optional (not displayed if the Workflow feature is disabled): associate a Workflow with the project.

To remove the existing workflow without replacing it with another workflow, select No Workflow from the Workflow dropdown list. This is the default when you create a new project.

To associate a workflow, select the workflow from the Workflow dropdown list, or enter the workflow name in the search field. The field auto-suggests workflows as you type. Only workflows that you own and shared workflows are shown in the dropdown list.
Tip
- When a workflow is associated with a project, the workflow is used for all of the branches in that project.
- When a project branch is associated with a workflow, the workflow of the parent project is ignored and the branch workflow is used.
For more information about workflows and how project workflows interact with branch workflows, see Workflow basics.

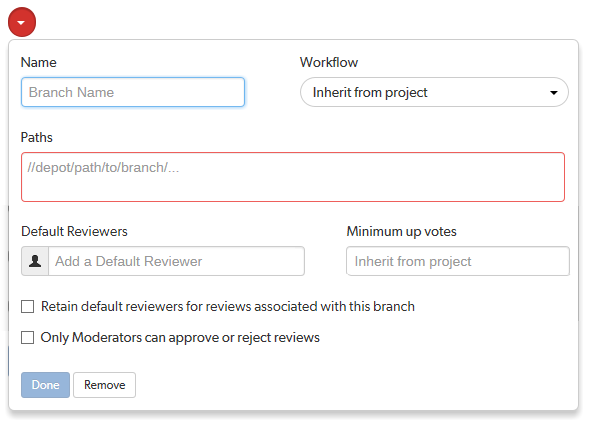

Optional: click + Add Branch to display the branch drop-down dialog.
1. Enter a short Name for your branch.
2. Optional (not displayed if the Workflow feature is disabled): associate a Workflow with the project branch.

  To use the parent project workflow, select Inherit from project from the Workflow dropdown list. This is the default when you create a new branch. If the parent project is set to No workflow, the branch will use the global workflow rules.

  To associate a workflow, select the workflow from the Workflow dropdown list, or enter the workflow name in the search field. The field auto-suggests workflows as you type. Only workflows that you own and shared workflows are shown in the dropdown list.
  Tip
  - When a workflow is associated with a project, the workflow is used for all of the branches in that project.
  - When a project branch is associated with a workflow, the workflow of the parent project is ignored and the branch workflow is used.
  For more information about workflows and how project workflows interact with branch workflows, see Workflow basics.
3. Enter one or more branch paths in the Paths field using depot syntax, one path per line.
  Tip
  - Branch paths, and files can be excluded by putting a minus symbol - at the start of the path.
  - Branch paths are processed in order, starting with the first file path in the list.
  For example:

  //depot/main/swarm/...

  -//depot/main/swarm/test/...

  //depot/main/swarm/test/ResultSummary.html

  The first path includes all of the directories and files under //depot/main/swarm/ in the project branch.

  The second path excludes all of the files in -//depot/main/swarm/test/ from the project branch.

  The third path includes the ResultSummary.html file from the previously excluded //depot/main/swarm/test/ directory.
  Note
  - Wildcards should not be used; the only exception is that the branch path can end with the Helix Server wildcard ...
  - Branch paths are case sensitive.
  - Branch paths, and files are not checked to see if they are valid when you save the branch:
    - If you enter an invalid path ending in the wildcard ..., the path will not be displayed in the project file browser until the path is created. This allows you to specify a path before it has been created.
    - If you enter a path that ends with a file that has not been committed, or a non-existent file, Swarm displays a 404 error when you navigate the path to the file with the project file browser.
  Note
  The Project Commits tab can fail to show some Helix Server commits in the top level view. Individual branch views display the commits correctly:

  The Project Commits tab top level client view is made up of all of the branches of the project.

  For example, Project Alpha:

  Branch: QA:

  //depot/alpha/dev/QA/...

  Branch: Dev :

  //depot/alpha/dev/...

  -//depot/alpha/dev/QA/...

  The project commits tab view is generated by processing the branches in the order that they were created in and from top to bottom for the paths in each of those branches.

  For the project Alpha example above:

  The first path includes all of the directories and files under //depot/alpha/dev/QA/ in the project commits tab top level view.

  The second path includes all of the directories and files under //depot/alpha/dev/ in the project commits tab top level view.

  The third path excludes all of the directories and files in //depot/alpha/dev/QA/ from the project commits tab top level view.

  Result: commits made to //depot/alpha/dev/QA/ that should be shown for the QA branch are not displayed in the Project Commits tab top level view.

  When you have a simple branch structure this can be avoided by considering this issue when you create your branches. In the example above, creating the Dev branch first and then creating the QA branch avoids the problem because//depot/alpha/dev/QA/ is not excluded from the Project Commits tab top level view.
4. Optional: specify Default Reviewers for the project branch.

  This field auto-suggests users, and groups within Helix Server as you type (up to a combined limit of 20 entries). Click on the user or group to add them as a default reviewer. Each time a new review is created, the default reviewers will be added to the review.
  - Users: click the star icon to the left of the userid to toggle whether their vote is required or not. A solid star means that their vote is required to approve a review, whereas the outlined star means that their vote is optional.
  - Groups: click the star icon to the left of the groupid , and select whether the group is a required reviewer (one vote), a required reviewer (all votes), or an optional reviewer. A solid star means that all group member votes are required to approve a review, a solid star with a 1 inside means at least one group member must vote up and no group members vote down to approve a review, and the outlined star means that the group vote is optional.
  Click the X icon to the right of the userid or groupid to remove that default reviewer from the default reviewers list.
  Important
  When a review is part of multiple projects/project branches:
  - The default reviewer lists for all of the projects and project branches the review is part of are combined and added to the review.
  - If a default reviewer has different reviewer options set on projects and project branches that the review is part of, the strictest reviewer option is used for the review.
  Example: A review is created and it is part of Project A, Project B, and Project Branch b.

  Project A: default reviewer X is an Optional reviewer

  Project B: default reviewer X is an Optional reviewer

  Project Branch b: default reviewer X is a Required reviewer

  Result: default reviewer X is added to the review as a Required reviewer
  Note
  If users or groups are @mentioned in a new changelist description that includes #review, they will be added to the review as reviewers. If any of these reviewers are already specified as default reviewers they will not be added to the review again, the reviewer's most restrictive reviewer option is used for the review.

  Note
  If a default reviewer is deleted from Helix Server they will not be added to new reviews.
5. Optional: click the Retain default reviewers for reviews associated with this branch checkbox to prevent default reviewers being removed from reviews associated with this branch.
6. Optional: set the Minimum up votes required for reviews associated with this branch.

  To inherit the parent project setting, leave Minimum up votes unset. This is the default when you create a new branch.

  To use the branch setting and ignore the parent project setting, set Minimum up votes to 1 or more on the branch.

  A review cannot be approved until all of the Required reviewers have voted up the review and the Minimum up votes specified has been satisfied.
  - If a review spans projects/branches, the Minimum up votes for each of the projects and branches must be satisfied before you can approve the review.
  - Required reviewers are included when up votes are counted.
  - When Count votes up from is set to Members for a workflow associated with a project/branch, only the up votes of members of the project contribute to satisfying the Minimum up votes for a project/branch. For more information about the Count votes up from rule, see Workflow rules.
  Important
  If the Minimum up votes required is set higher than the number of reviewers that exist for a review, approval will be blocked for that review. This is true even if all the reviewers on the review have voted up the review.
7. Optional: check the Only Moderators can approve or reject reviews checkbox. When checked, a field is displayed allowing you to add a new moderator. The field auto-suggests groups and users within Helix Server as you type.

  If a group is specified as a moderator, all of the members of that group have the same moderator privileges for that project branch as if they were added individually.

  Once the branch specification is complete and the project has been saved, changing the state of any review associated with this moderated branch is restricted as follows:
  - Only moderators can approve or reject the review. Moderators can also transition a review to any other state.
  - The review's author, when not a moderator, can change the review's state to Needs review, Needs revision, Archived, and can attach committed changelists.

    Normally, the review's author cannot change the review's state to Approved or Rejected on moderated branches. However, authors that are also moderators have moderator privileges, and may approve or reject their own review.

    When disable_self_approve is enabled, authors who are moderators (or even users with admin privileges) cannot approve their own reviews.
  - Project members can change the review's state to Needs review or Needs revision, and can attach committed changelists. Project members cannot change the review's state to Approved, Rejected, or Archived.
  - Users that are not project members, moderators, or the review's author cannot transition the review's state.
  - For the review's author and project members, if a review is not in one of their permitted states, for example if the review's state is Rejected, they cannot transition the review to another state.
  These restrictions have no effect on who can start a review.
8. Click the Done button to accept your branch specification.

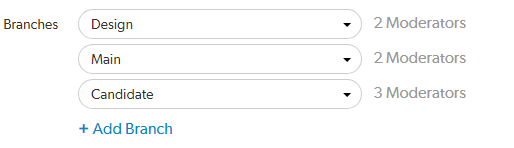

Once the branch definition has completed, if any moderators were specified, the number of moderators for that branch is displayed in the list of branches:

Tip
Hover over the X Moderators text of a branch to view the moderators on that branch.
Optional: specify a job filter. The job filter allows you to specify criteria that are used to associate jobs with projects. For example, entering Subsystem=ProjectA associates jobs whose subsystem field is set to ProjectA with the current project.

Note
This job filter is simpler than the filters available in other Helix Server clients. The filter must be expressed as field=value pairs; bare keywords are not permitted. The asterisk for wildcard matching is permitted, but no other filter expression syntax is permitted.
By default, project members and moderators are notified when a new review is started. Project members, moderators, and followers are notified when a change is committed.

Select which actions send a notification:
- Email members and moderators when a new review is requested: When a new review is requested for the project, all project members and moderators of the project are added to the email notification list.
- Email members, moderators and followers when a change is committed: When a change is committed for the project, all project members, project moderators and project followers of this project are added to the email notification list.
Note
- When a group is a project member or project moderator, all of the members of that group are notified using the same logic as for individual project members and moderators.
- Any Links in descriptions and comments users and groups, or users and groups who are explicitly added to a review or changelist, will receive notifications even if new review/committed review notifications are disabled.
Optional: click the Enable checkbox beside Automated Tests to display the automated tests configuration fields.

Specify a URL that triggers a test execution. Use the special arguments described in the dialog to help compose a URL that informs your test suite with important details. For more details, see Automated testing for reviews
Optional: click the Enable checkbox beside Automated Deployment to display the automated deployment configuration fields.

Specify a URL that triggers a deployment of the project's code. Use the special arguments described in the dialog to help compose a URL that informs your deployment program with important details. For more details, see Automatically deploy code within a review
Click Save.

Note
The Save button is disabled if any required fields are empty.

Important
It is possible to create a project that you cannot edit. This can happen if you have specified owners but not yourself as an owner, or if you have not specified yourself as a member. Swarm can detect some (but not all) such situations when you save a project; when it does detect such a situation, a warning dialog is displayed.

If you see this dialog, click Continue to save the project without your ownership/membership, or click Cancel within the dialog to continue editing the project. The project page's Save and Cancel buttons are disabled while this dialog is visible.
You can now use Swarm Workflow on reviews in this project.
