Perforce is built to handle distributed development in a wide range of network topologies. Where bandwidth to remote sites is limited, P4P, the Perforce Proxy, improves performance by mediating between Perforce applications and the versioning service to cache frequently transmitted file revisions. By intercepting requests for cached file revisions, P4P reduces demand on the Perforce service and the network over which it runs.
To improve performance obtained by multiple Perforce users accessing a shared Perforce repository across a WAN, configure P4P on the side of the network close to the users and configure the users to access the service through P4P; then configure P4P to access the master Perforce service. (On a LAN, you can also obtain performance improvements by setting up proxies to divert workload from the master server's CPU and disks.)

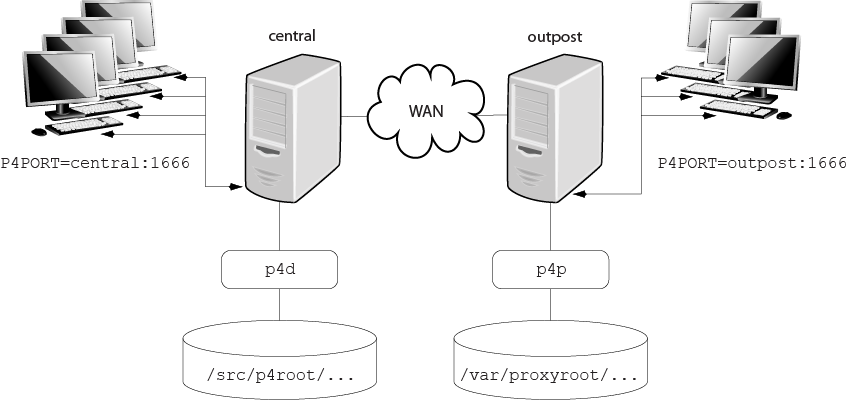

The following diagram illustrates a typical P4P configuration.
In this configuration, file revisions requested by users at a remote
development site are fetched first from a central Perforce server
(p4d running on
transferred over a relatively slow WAN. Subsequent requests for that same
revision, however, are delivered from the Perforce Proxy,
p4p running on
outpost), over the
remote development site's LAN, reducing both network traffic across the WAN
and CPU load on the central server.
To use Perforce Proxy, you must have:
A Perforce Server at Release 2002.2 or higher (2012.1 or higher to use SSL)
Sufficient disk space on the proxy host to store a cache of file revisions
To install P4P on UNIX or Linux, do the following:
Download the p4p executable to the machine on which you want to run the proxy.
Select a directory on this machine (
P4PCACHE) in which to cache file revisions.
Select a port (
P4PORT) on which p4p will listen for requests from Perforce applications.
Select the target Perforce server (
P4TARGET) for which this proxy will cache.
Install P4P from the Windows installer's custom/administrator installation dialog.
To run P4P, invoke the p4p executable, configuring it with environment variables or command-line options. Options you specify on the command line override environment variable settings.
For example, the following command line starts a proxy that communicates
with a central Perforce server located on a host named
central, listening on port 1666.
p4p -p tcp64:[::]:1999 -t central:1666 -r /var/proxyroot
To use the proxy, Perforce applications connect to P4P on port 1999 on the
machine where the proxy runs. The proxy listens on both the IPv6 and IPv4
transports. P4P file revisions are stored under a directory named
The Perforce proxy supports connectivity over IPv6 networks as well as IPv4. See the Perforce Server Administrator's Guide: Fundamentals for more information.
Running P4P as a Windows service
To run P4P as a Windows service, either install P4P from the Windows
installer, or specify the
-s option when you invoke
p4p.exe, or rename the P4P executable to
To pass parameters to the P4Proxy service, set the
P4POPTIONS registry variable using the p4
set command. For example, if you normally run the Proxy with
p4p -p 1999 -t ssl:mainserver:1666
you can set the
P4POPTIONS variable for a Windows service
Perforce Proxy by setting the service
parameters as follows:
p4 set -S "Perforce Proxy" P4POPTIONS="-p 1999 -t ssl:mainserver:1666"
"Perforce Proxy" service starts, P4P listens
for plaintext connections on port 1999 and communicates with the
Perforce Server via SSL at
The following command-line options specific to the proxy are supported.
Run as daemon - fork first, then run (UNIX only).
Do not fork - run as a single-threaded server (UNIX only).
Run for inetd (socket on
Run quietly; suppress startup messages.
Do not compress data stream between the Perforce server to P4P. (This option reduces CPU load on the central server at the expense of slightly higher bandwidth consumption.)
Run as a Windows service (Windows only).
Running p4p.exe -s is equivalent to invoking p4ps.exe.
Disable cache fault coordination.
The proxy maintains a table of concurrent sync operations,
Display a help message.
Display the version of the Perforce Proxy.
Specify the directory where revisions are cached. Default is
Specify the location of the log file. Default is
Specify the port on which P4P will listen for requests from
Perforce applications. Default is
Specify the port of the target Perforce server (that is, the
Perforce server for which P4P acts as a proxy). Default is
Cache only those files that are larger than
For proxy servers, authenticate as the specified
Specifies server trace level. Debug messages are stored in the
proxy server's log file. Debug messages from
p4p are not passed through to
p4d, and debug messages from
p4d are not passed through to instances of
p4p. Default is
Generate SSL credentials files for the proxy: create a private
Display the fingerprint of the proxy's public key, and exit.
Administrators can communicate this fingerprint to end users, who can then use the p4 trust command to determine whether or not the fingerprint (of the server to which they happen to be connecting) is accurate.
Proxy monitoring options:
List pending archive transfers
List pending archive transfers, summarized
Set the file status interval, in seconds. If not set, defaults to 10 seconds.
Proxy monitoring interval, in seconds. If not set, defaults to 10 seconds.
Show currently-active connections and their status.
Proxy archive cache options:
No backups required
You never need to back up the P4P cache directory.
If necessary, P4P reconstructs the cache based on Perforce server metadata.
P4P is effectively stateless; to stop P4P under UNIX,
kill the p4p process with
SIGKILL. Under Windows, click
in the .
After you have replaced the p4p executable with the
upgraded version, you must also remove the
pdb.monitor files (if they exist) from the
proxy root before you restart the upgraded proxy.
Enabling SSL support
To encrypt the connection between a Perforce Proxy and its end users,
your proxy must have a valid private key and certificate pair in the
directory specified by its
P4SSLDIR environment variable.
Certificate and key generation and management for the proxy works the
same as it does for the Perforce Server. See
Enabling SSL support. The users' Perforce
applications must be configured to trust the fingerprint of the proxy.
To encrypt the connection between a Perforce Proxy and its upstream
Perforce service, your proxy installation must be configured to trust
the fingerprint of the upstream Perforce service. That is, the user that
runs p4p (typically a service user) must create a
P4TRUST file (using p4 trust) that
recognizes the fingerprint of the upstream Perforce service.
If your Perforce server has localized error messages (see
"Localizing server error messages" in
Server Administrator's Guide: Fundamentals), you can
localize your proxy's error message output by shutting down the proxy,
copying the server's
db.message file into the proxy
root, and restarting the proxy.
Managing disk space consumption
P4P caches file revisions in its cache directory. These revisions accumulate until you delete them. P4P does not delete its cached files or otherwise manage its consumption of disk space.
If you do not delete cached files, you will eventually run out of disk space. To recover disk space, remove files under the proxy's root.
You do not need to stop the proxy to delete its cached files or the
If you delete files from the cache without stopping the proxy, you must
also delete the
pdb.lbr file at the proxy's root
directory. (The proxy uses the
pdb.lbr file to keep
track of which files are scheduled for transfer, so that if multiple
users simultaneously request the same file, only one copy of the file is
Determining if your Perforce applications are using the proxy
If your Perforce application is using the proxy, the proxy's version information appears in the output of p4 info.
For example, if a Perforce service is hosted at
ssl:central:1666 and you direct your Perforce
application to a Perforce Proxy hosted at
outpost:1999, the output of p4
info resembles the following:
$ export P4PORT=tcp:outpost:1999 $ p4 info User name: p4adm Client name: admin-temp Client host: remotesite22 Client root: /home/p4adm/tmp Current directory: /home/p4adm/tmp Client address: 192.168.0.123 Server address: central:1666 Server root: /usr/depot/p4d Server date: 2012/03/28 15:03:05 -0700 PDT Server uptime: 752:41:23 Server version: P4D/FREEBSD4/2012.1/406375 (2012/01/25) Server encryption: encrypted Proxy version: P4P/SOLARIS26/2012.1/406884 (2012/01/25) Server license: P4 Admin <p4adm> 20 users (expires 2013/01/01) Server license-ip: 10.0.0.2 Case handling: sensitive
P4P and protections
To apply the IP address of a Perforce Proxy user's workstation against
the protections table, prepend the string
the workstation's IP address.
For instance, consider an organization with a remote development site
with workstations on a subnet of
organization also has a central office where local development takes
place; the central office exists on the
subnet. A Perforce service resides in the
subnet, and a Perforce Proxy resides in the
192.168.10.0/24 subnet. Users at the remote site
belong to the group
remotedev, and occasionally visit
the central office. Each subnet also has a corresponding set of IPv6
To ensure that members of the
remotedev group use the
proxy while working at the remote site, but do not use the proxy when
visiting the local site, add the following lines to your protections
list group remotedev 192.168.10.0/24 -//... list group remotedev [2001:db8:16:81::]/48 -//... write group remotedev proxy-192.168.10.0/24 //... write group remotedev proxy-[2001:db8:16:81::]/48 //... list group remotedev proxy-10.0.0.0/8 -//... list group remotedev proxy-[2001:db8:1008::]/32 -//... write group remotedev 10.0.0.0/8 //... write group remotedev proxy-[2001:db8:1008::]/32 //...
The first line denies
list access to all users in the
remotedev group if they attempt to access Perforce
without using the proxy from their workstations in the
192.168.10.0/24 subnet. The second line denies access
in identical fashion when access is attempted from the IPV6
The third line grants
write access to all users in
remotedev group if they are using a Perforce
Proxy server and are working from the
subnet. Users of workstations at the remote site must use the proxy.
(The proxy server itself does not have to be in this subnet, for
example, it could be at
192.168.20.0.) The fourth
line denies access in identical fashion when access is attempted from
Similarly, the fifth and sixth lines deny
remotedev users when they attempt to use the proxy
from workstations on the central office's subnets
[2001:db8:1008::]/32). The seventh and eighth lines
grant write access to
remotedev users who access the
Perforce server directly from workstations on the central office's
subnets. When visiting the local site, users from the
remotedev group must access the Perforce server
When the Perforce service evaluates protections table entries, the
dm.proxy.protects configurable is also evaluated.
dm.proxy.protects defaults to
which causes the
proxy- prefix to be prepended to all
client host addresses that connect via an intermediary (proxy, broker,
replica, or edge server), indicating that the connection is not direct.
proxy- prefix and allows you to write a
single set of protection entries that apply both to directly-connected
clients as well as to those that connect via an intermediaty. This is
more convenient but less secure if it matters that a connection is made
using an intermediary. If you use this setting, all intermediaries must
be at release 2012.1 or higher.
Determining if specific files are being delivered from the proxy
-Zproxyverbose option with
p4 to display messages indicating whether file
revisions are coming from the proxy (p4p) or the
central server (p4d). For example:
$ p4 -Zproxyverbose sync noncached.txt //depot/main/noncached.txt - refreshing /home/p4adm/tmp/noncached.txt $ p4 -Zproxyverbose sync cached.txt //depot/main/cached.txt - refreshing /home/p4adm/tmp/cached.txt File /home/p4adm/tmp/cached.txt delivered from proxy server
Case-sensitivity issues and the proxy
If you are running the proxy on a case-sensitive platform such as UNIX,
and your users are submitting files from case-insensitive platforms
(such as Windows), the default behavior of the proxy is to fold case;
FILE.TXT can overwrite
In the case of text files and source code, the performance impact of
this behavior is negligible. If, however, you are dealing with large
binaries such as
.ISO images or
.VOB video objects, there can be performance issues
associated with this behavior.)
Proxy folds case; all files with the same name are assumed to be the same file, regardless of case.
Proxy folds case if, and only if, the upstream server is case-insensitive (that is, if the upstream server is on Windows)
Proxy never folds case.
After any change to
lbr.proxy.case, you must clear
the cache before restarting the proxy.
Maximizing performance improvement
Reducing server CPU usage by disabling file compression
By default, P4P compresses communication between itself and the Perforce
versioning service, imposing additional overhead on the service. To
disable compression, specify the
-c option when you
invoke p4p. This option is particularly effective if
you have excess network and disk capacity and are storing large numbers
of binary file revisions in the depot, because the proxy (rather than
the upstream versioning service) decompresses the binary files from its
cache before sending them to Perforce users.

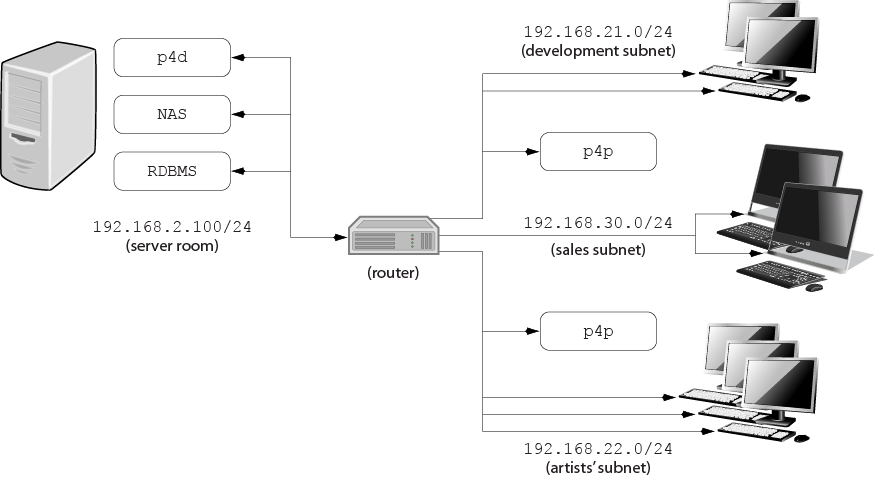

Network topologies versus P4P
If network bandwidth on the same subnet as the Perforce service is nearly saturated, deploying proxy servers on the same subnet will not likely result in a performance improvement. Instead, deploy the proxies on the other side of a router so that the traffic from end users to the proxy is isolated to a subnet separate from the subnet containing the Perforce service.
Deploying an additional proxy on a subnet when network bandwidth on the subnet is nearly saturated will not likely result in a performance improvement. Instead, split the subnet into multiple subnets and deploy a proxy in each resulting subnet.
In the illustrated configuration, a server room houses a company's Perforce service (p4d), a network storage device (NAS), and a database server (RDBMS). The server room's network segment is saturated by heavy loads placed on it by a sales force constantly querying a database for live updates, and by developers and graphic artists frequently accessing large files versioned by Perforce.
Deploying two instances of the Perforce proxy (one on the developers' subnet, and one on the graphic artists' subnet) enables all three groups to benefit from improved performance due to decreased use on the server room's network segment.
Preloading the cache directory for optimal initial performance
P4P stores file revisions only when one of its users submits a new revision to the depot or requests an existing revision from the depot. That is, file revisions are not prefetched. Performance gains from P4P occur only after file revisions are cached.
After starting P4P, you can effectively prefetch the cache directory by creating a dedicated client workspace and syncing it to the head revision. All other users who subsequently connect to the proxy immediately obtain the performance improvements provided by P4P. For example, a development site located in Asia with a P4P server targeting a Perforce server in North America can preload its cache directory by using an automated job that runs a p4 sync against the entire Perforce depot after most work at the North American site has been completed, but before its own developers arrive for work.
By default, p4 sync writes files to the client workspace. If you have a dedicated client workspace that you use to prefetch files for the proxy, however, this step is redundant. If this machine has slower I/O performance than the machine running the Perforce Proxy, it can also be time-consuming.
To preload the proxy's cache without the redundant step of also writing
the files to the client workspace, use the
option when syncing. For example:
$ export P4CLIENT=prefetch $ p4 sync //depot/main/written.txt //depot/main/written.txt - refreshing /home/prefetch/main/written.txt $ p4 -Zproxyload sync //depot/main/nonwritten.txt //depot/main/nonwritten.txt - file(s) up-to-date.
Both files are now cached, but
never written to the the
prefetch client workspace.
When prefetching the entire depot, the time savings can be considerable.
Distributing disk space consumption
P4P stores revisions as if there were only one depot tree. If this approach stores too much file data onto one filesystem, you can use symbolic links to spread the revisions across multiple filesystems.
For instance, if the P4P cache root is
/disk1/proxy, and the Perforce server it supports
has two depots named
//released, you can split data across disks, storing
disk2 as follows:
mkdir /disk2/proxy/released cd /disk1/proxy ln -s /disk2/proxy/released released
The symbolic link means that when P4P attempts to cache files in the
//released depot to
/disk1/proxy/released, the files are stored on
