Deploy and configure a Swarm VM from an OVA

Swarm is available as an OVA (Open Virtualization Appliance) that requires minimal configuration.

Use the Swarm OVA if you want to:

• Simplify the installation and configuration steps
• Experiment with Swarm without using additional hardware
• Install Swarm without having a Linux-based server available

Before you begin

You will need the following information to deploy the Swarm Virtual Machine (VM) from the OVA:

• The Helix Core Server port (P4PORT).
• Important

  If your Helix Core Server is deployed using the commit-edge architecture, ensure that the Swarm port value points to the commit server.

  For more information, see the Commit-edge chapter in the Helix Core Server Administrator Guide: Multi-Site Deployment.

• The Userid of a normal user in the Helix Server with admin privileges.
• The Ticket, or password of the admin-level Perforce user.
• The Mail relay host address.

Deploy the Swarm OVA

To deploy the Swarm OVA, follow the instructions on this page.

1. Download the Swarm OVA.
2. Import the OVA into your virtualization environment, see VMWare OVA import or Oracle VirtualBox import for details.

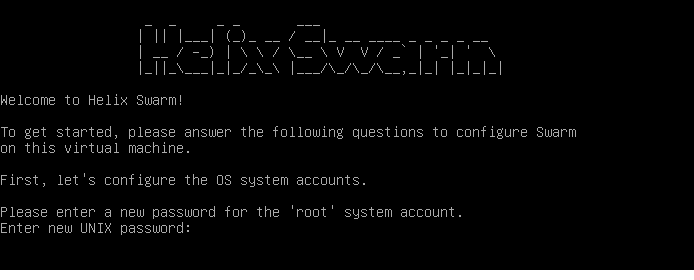

3. Start the VM, diagnostic and boot information is displayed as the VM starts. The configuration welcome screen is displayed when the boot is complete:


4. Follow the configuration script prompts to configure the Swarm VM passwords and hostname:

   1. Set a password for the root user.
   2. Set a password for the system swarm user.
   3. Set a hostname for the Swarm VM.

5. The configuration script displays the following prompt:

   Do you want to proceed with Swarm configuration (Y/n)?

   You now have two choices:

   • Proceed with VM configuration, see Proceed with the Swarm VM configuration script for details.
   • or
   • Exit the Swarm VM configuration script to make changes from the VM operating system and then return to the Swarm configuration script. For example, you may need to edit the VM network configuration or install P4D on the same VM. See Exit the Swarm VM configuration script for details.

   Proceed with the Swarm VM configuration script

   1. To proceed with the Swarm VM configuration script, press the Enter key.
   2. Press the Enter key again to restart the Swarm VM configuration script.
   3. Finalize Swarm VM configuration, see Finalize Swarm configuration for details.

   Exit the Swarm VM configuration script

   1. To exit the Swarm VM configuration script, type n and press the Enter key
   2. The Swarm configuration script exits and the welcome screen is displayed:

   3. Select Login and press the Enter key. Login to the VM as the root user.
   4. Make changes to the VM as required.

   5. When you have finished making changes to the VM, rerun the configure-swarm.sh script from the /opt/perforce/swarm/sbin directory:

      root@swarm:~# /opt/perforce/swarm/sbin/configure-swarm.sh

   6. Finalize Swarm VM configuration, see Finalize Swarm configuration for details.

Finalize Swarm configuration

Follow the Swarm configuration script prompts to finalize Swarm VM configuration:

1. Enter the Helix Core Server port (P4PORT) number.

   Important

   If your Helix Core Server is deployed using the commit-edge architecture, ensure that the Swarm port value points to the commit server.

   For more information, see the Commit-edge chapter in the Helix Core Server Administrator Guide: Multi-Site Deployment.

2. Enter the Userid of a normal user with admin privileges in the Helix Server.
3. Enter the Ticket, or password, of the admin-level Perforce user.
4. Enter the Mail relay host address.

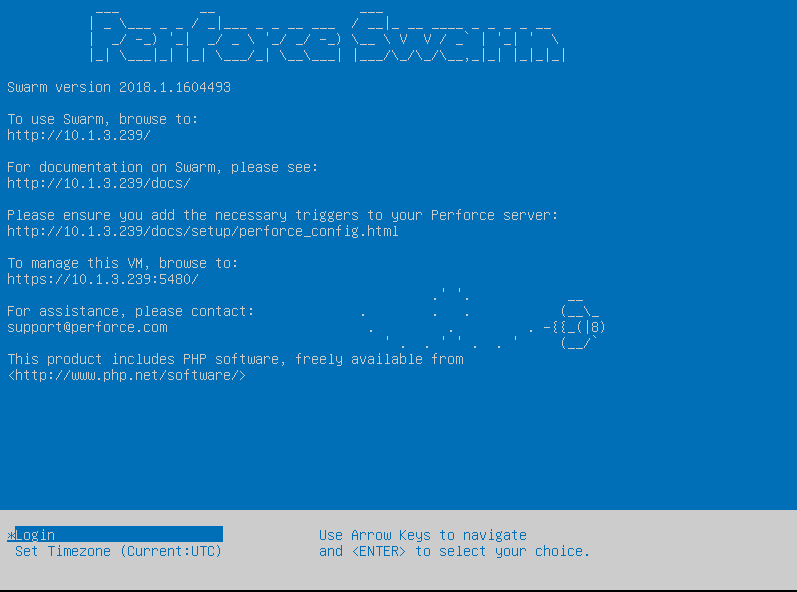

5. The Swarm configuration script completes the configuration and the welcome screen is displayed.

   The welcome screen lists the links to access Swarm, its documentation, trigger configuration information, the VM management console, Perforce support, and the PHP website:



6. Update the VM with security updates and bug fixes:

   1. Use ssh to log into the VM as the root user.

   2. Enter the following commands to update the VM packages list and to apply any available upgrades.

      $ apt-get update
      $ apt-get upgrade

      See OVA Management for more details.

Note

Now that the Swarm VM is configured and running, you can edit the configuration by using ssh to connect to the VM as the system swarm user and editing the Swarm configuration file /opt/perforce/swarm/data/config.php. The Swarm installation folder is /opt/perforce/swarm/.

7. The basic Swarm configuration is now complete.

8. Configure the Swarm triggers on the Helix Server, see Helix Core Server configuration for Swarm.

VMWare OVA import

The Swarm OVA works with several VMWare virtualization products, such as Player, Workstation, and Fusion.

1. In the VMWare product, select File > Open.
2. Browse to the swarm.ova file and click Open.
3. Type a name for the virtual machine, such as Swarm, and click Import.

Oracle VirtualBox import

The Swarm OVA works with Oracle VirtualBox, version 4.x+.

1. In VirtualBox, select File > Import Appliance.
2. Browse to the swarm.ova file and click Open.
3. Click Next (this might be Continue for some versions of VirtualBox)
4. Click Import.
