Projects

A Swarm project is a group of Helix Core users who are working together on one or more codelines within the Helix server. A project's definition includes one or more branchesA branch in Perforce is a set of related files that exist at a specific location in the Perforce depot as a result of being copied to that location, as opposed to being added at that location. of code, and optionally a jobA job is a component of the Helix Versioning Engine's defect tracking system and describes work to be done, such as a bug fix or improvement request. Associating a job with a changelist records which changes fixed the reported problem or added the requested improvement. filter, automated test integration, or automated deployment. This section provides an introduction to the interactions users have with projects. See the Projects chapter for details on managing projects.

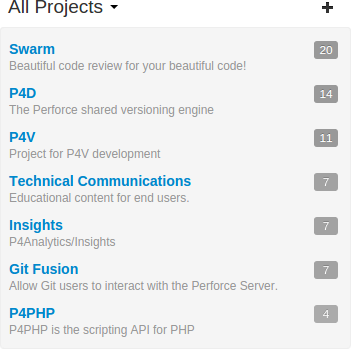

Projects are listed on the Swarm home page. Anonymous users see a list of all public projects:

Logged-in users can choose to display all projects or just the projects they are a member of by clicking on the dropdown above the projects list:

All Projects: lists all of the available projects.
My Projects: list all the projects that you are a member of.
Note
If you are an owner of a project but not a member of that project, the project will not appear in your My Projects list. This allows you to administer a large number of projects but only be a member of the projects you want to see in your My Projects list.

The number in the icon to the right of the project name displays the total number of members and followers for the project. Hover your mouse over the icon to display a tooltip with the number of members and the number of followers for the project.

Viewing a project

View a project by clicking on its project name or branch identifier in an activity stream, or by visiting the URL: https://myswarm.url/projects/project-name

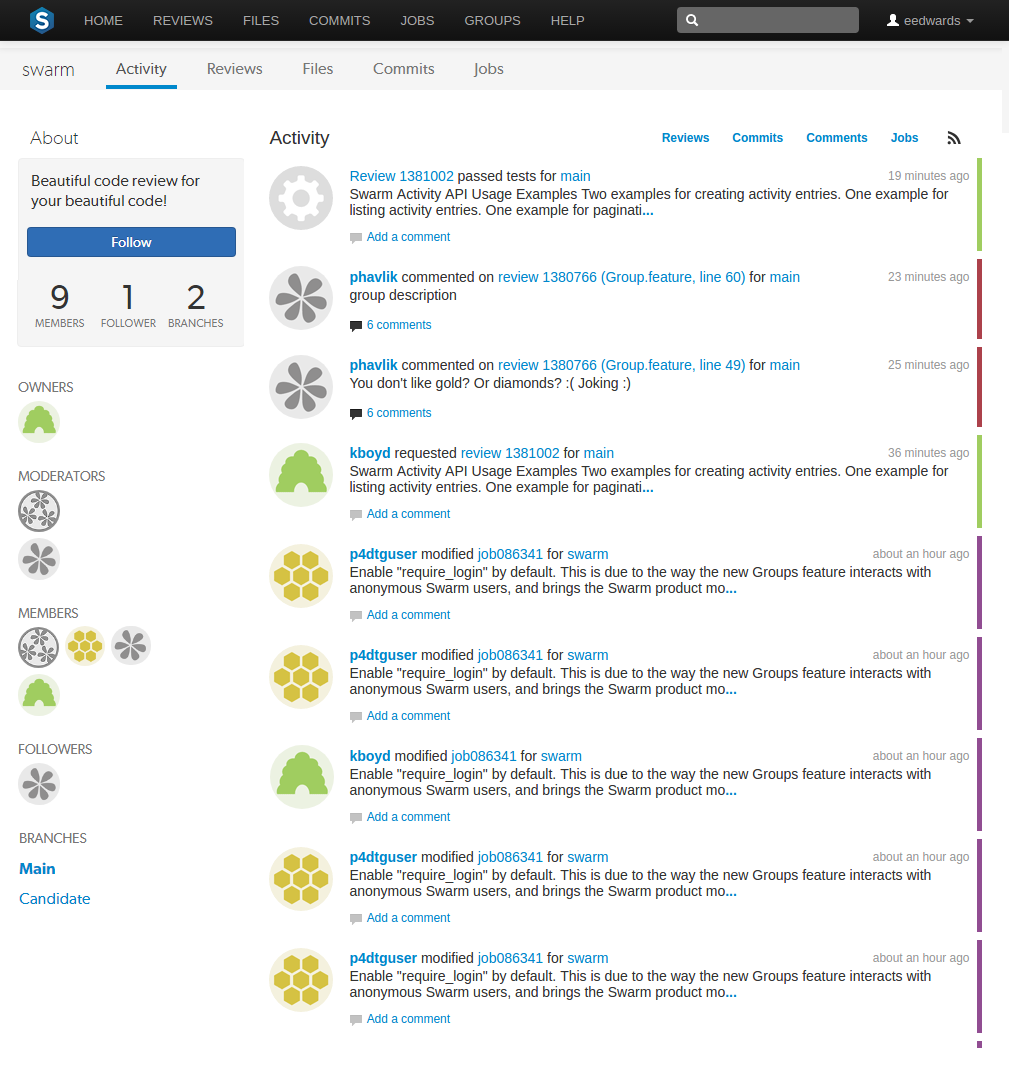

The project's Activity tab provides the following information:

A short description of the project
The project's activity stream
A Follow button, click to follow the project. This button is not available if you are a member of the project.
A list of project owners
A list of project moderators
A list of project members
A list of project followers
A list of the branches defined for the project

If there is a README.md in the project's mainline, then this will be displayed in an Overview tab before the Activity tab. This file can contain Markdown text, allowing a formatted description of the project to be provided. See Markdown in projects for a description of the type of formatting that is supported.

See Mainline branch identification for details on how to configure the mainline of a project.

Reviews

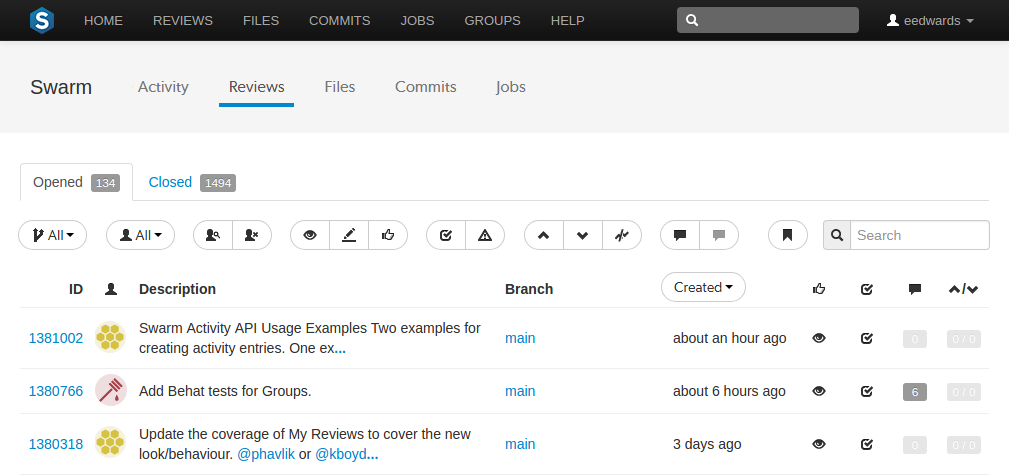

The project's Reviews tab shows a list of code reviews specific to the project.

For more details on browsing, filtering, and searching reviews, see Review queues.

Files

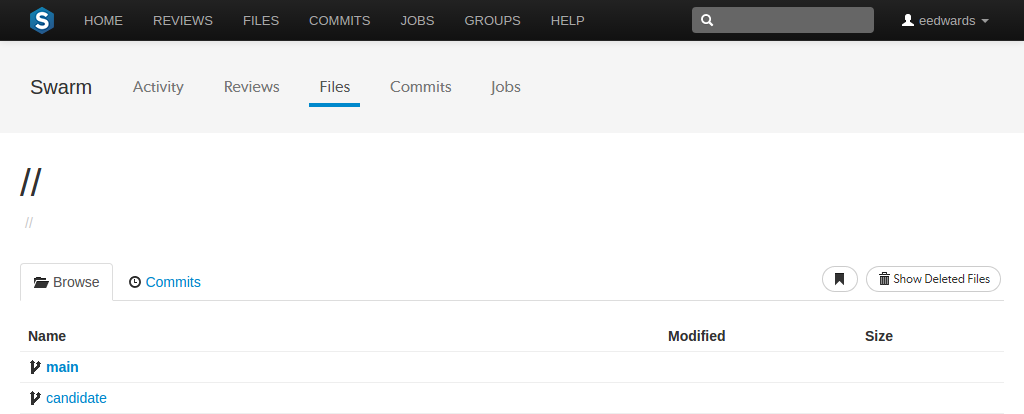

The project's Files tab shows a list of the project's files, starting with a folder view representing each branch. Branches are designated with the branch icon .

The project's main branch, identified by using a name such as main, mainline, master, trunk, is sorted to the top of the list of branches and appears in bold. The list of names can be configured; see Mainline branch identification for details.

For more information on browsing files, see Files.

Commits

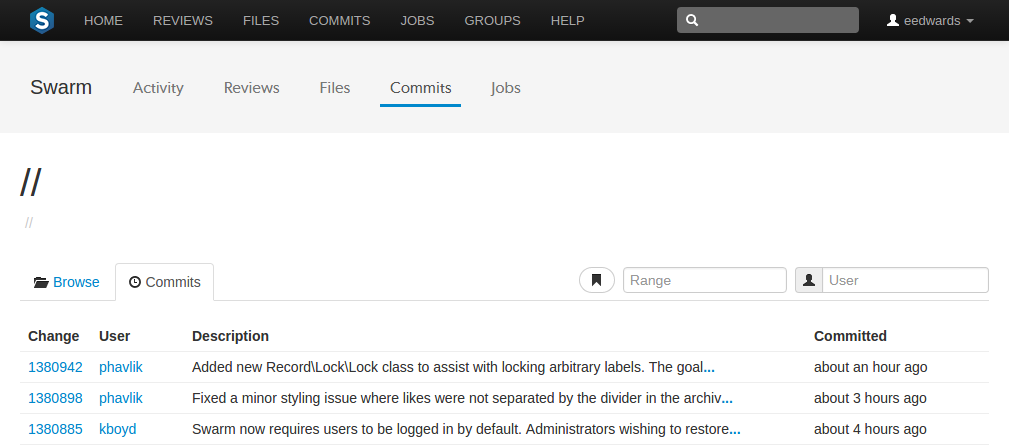

The project's Commits tab shows a list of changes made to the project.

For more details on history browsing, see Commits.

Jobs

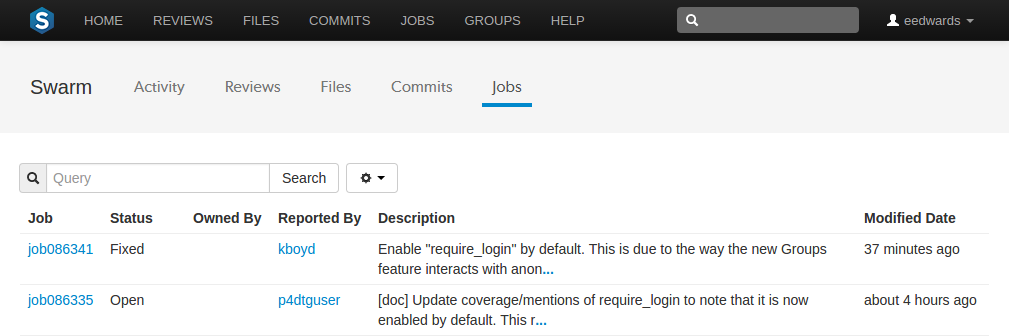

The project's Jobs tab shows a list of jobs associated with the project. This only works properly when the project configuration includes a job filter. See Add a project for details.

For more details on browsing and searching jobs, see Jobs.

Private projects

Private projects, introduced in Swarm 2016.2, provide a way to make specific projects and their activity less visible to Swarm users. When a project is made private, only the projects owners, moderators, and members, plus users with super privileges in the Helix server, can see the project, its activity streams, and ongoing reviews.

If you are logged in as an owner, moderator, or member of a private Swarm project, that project appears on the Swarm home page with an eye icon to indicate that it is private and has limited visibility:

Similarly, the eye icon appears beside the project's title when viewing the project. When you hover your mouse over the eye icon, a tooltip appears indicating that this project is indeed private.

Caveats

The following are important caveats regarding private projects:

While Swarm can mask the existence of projects, their activity, and reviews, Swarm honors each user's access to files within the Helix server. This means that have access to the files in a private project's branches can browse to those branch paths within the depot and see the files and any committed changes.
If you need to prevent access to important files, your Helix server administrator is required to manage the protections table accordingly. For more information, see the section "Authorizing Access" in the Helix Versioning Engine Administrator Guide: Fundamentals.
It is possible for a user to start a review that touches files that belong to a private project. If the user is not a member, owner, or moderator of the private project, or does not have super privileges in the Helix server, they cannot participate in the review.
If a user is not a member, owner, or moderator of a private project, or does not have super privileges in the Helix server, and they are added as a review participant (via an @mention or by editing a review's participants) to a review containing files within the private project's branches, that user cannot participate in the review: the user cannot see the review, its files, or comments. Due to limitations in how Swarm sends email notifications, such users could still receive notifications for reviews they cannot participate in.
Notifications usually include links and mentions of the associated projects. Notifications involving private projects are filtered to remove any references to those private projects.
