How to Implement Prometheus Monitoring + Grafana Dashboards

Version Control

Enterprises looking to decrease downtime and optimize resources can implement server monitoring using tools like Prometheus and Grafana.

First, What Is Server Monitoring?

Server monitoring is a way to look into what your servers are doing in real time. It can provide you with actionable data, and is most often used for troubleshooting and capacity planning. It’s typically done at three levels:

  • Network (e.g., traffic, bandwidth, latency).
  • Machine (e.g., CPU and memory utilization and storage).
  • Application (e.g., rate of user commands, locks, large syncs, commits/submits, etc.).

Why Monitor Your Servers?

Server monitoring has a lot of benefits. The biggest benefit is avoiding reactive panics. You can get a head start on issues occurring in your servers or applications before your users are impacted. Along with this benefit, you can also use monitoring to figure out how to:

  • Increase uptime.
  • Improve hardware and software performance.
  • Plan for the future by making the best use of your resources.

Implementing monitoring can give you an almost immediate return on investment. You can observe trends, spikes, and anomalies that may indicate a problem. And then you can drill down to discover the root cause of the issue.

What Is Prometheus?

Prometheus is an open source system that collects and manages server and application metrics. It can also be configured to notify your team when an issue arises.

What Is Grafana?

Grafana is an open source tool that allows you to easily visualize information in dashboards captured from a server monitoring tool like Prometheus.

Choose Tools That Support Your Goals

Version control is a fundamental building block. It is the foundation for all forms of development. This includes software, chip design, embedded software, virtual reality, game development, and more.

Helix Core is the go-to version control system to manage teams at a massive scale. It allows developers to move faster by handling thousands of users, millions of daily transactions, and terabytes of data. It can easily be deployed in the cloud, or managed on-premises.

See Helix Core it in action >>

But to get the most out of Helix Core, you need to implement monitoring. This helps you achieve appropriate service level agreements (SLAs ). It can help determine how and where you might need additional resources. And for your admin team, it reduces stress and can even improve sleep. Well, maybe the last part might be an exaggeration!

Server Monitoring Combo

Monitoring requires continuously collecting metrics and logs (server and application logs). Metrics come from analyzing these logs and from examining application and operating system counters and attributes on a regular basis. These can be analyzed and graphed to show real time trends in your system.

For this blog, we are going to show you how to implement a combination of Prometheus monitoring and Grafana dashboards for monitoring Helix Core.

Why Prometheus Monitoring and Grafana Dashboards?

Of course there are several other tools on the market. Plus many have integrations for Helix Core. We choose this combo because both of these tools are widely adopted and are open source. They can be easily deployed with little effort for basic installations. They also have enterprise level support, if required. This is a critical differentiator for our customers that need to scale.

How Helix Core Works With Prometheus + Grafana

null

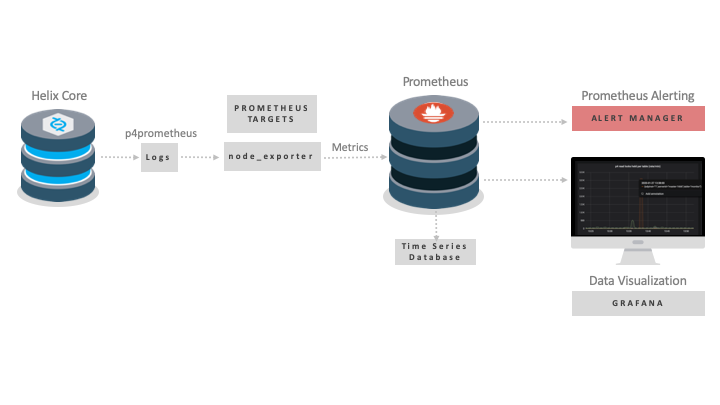

Prometheus pulls metrics from targets such as node_exporter (distributed as part of Prometheus). It stores the data in its internal time series database. These metrics are generated by p4prometheus and node_exporter by querying the operating system directly.

How to Implement Prometheus For Helix Core

We have two custom components which interface with Prometheus to export metrics on a regular basis. These are contained in the P4Prometheus repository, available on GitHub.

One component performs real-time analysis of Helix Core server logs, writing updated metrics typically every 30 seconds. The other component runs regular p4 reporting commands. It analyzes the results and creates metrics on a regular basis.

They both feed data into Prometheus via its node_exporter component, which can then be made visible on Grafana dashboards. As shown in the diagram, you can also set up custom alerts to your team via Slack, email, or even phone/text notifications.

How to Set Up Prometheus and Grafana on Helix Core

  1. Install Prometheus and Grafana on a separate VM/machine to your Helix Core server. This is a best practice for security and high-availability reasons.
  2. The GitHub repo shows an easy way to install using Ansible with a Galaxy module. Review example files for more information.
    • On your commit and any replica/edge servers, you need to install node_exporter and p4prometheus to gather metrics.
    • On your monitoring server, you can install Prometheus, Grafana, and configure Prometheus to gather the metrics from your other servers.
  3. Once installed you can set up your Grafana dashboards. Examples include:
    • Commands summary.
    • Command durations and counts.
    • Active commands.
    • Replication status. ​​​​​​
  4. Learn more about configuring Grafana >>

Example Grafana Dashboards

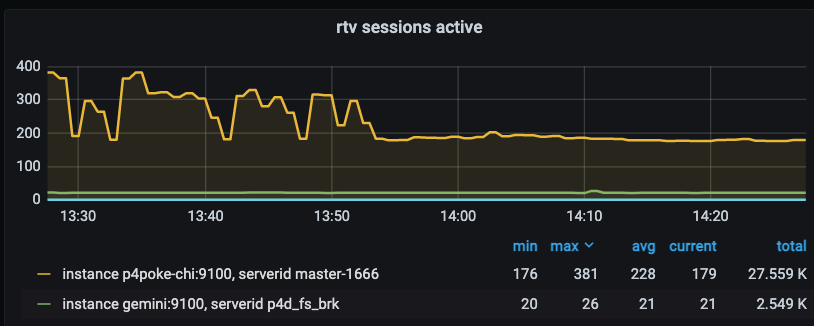

Here are some example Grafana dashboards that indicate normal usage.

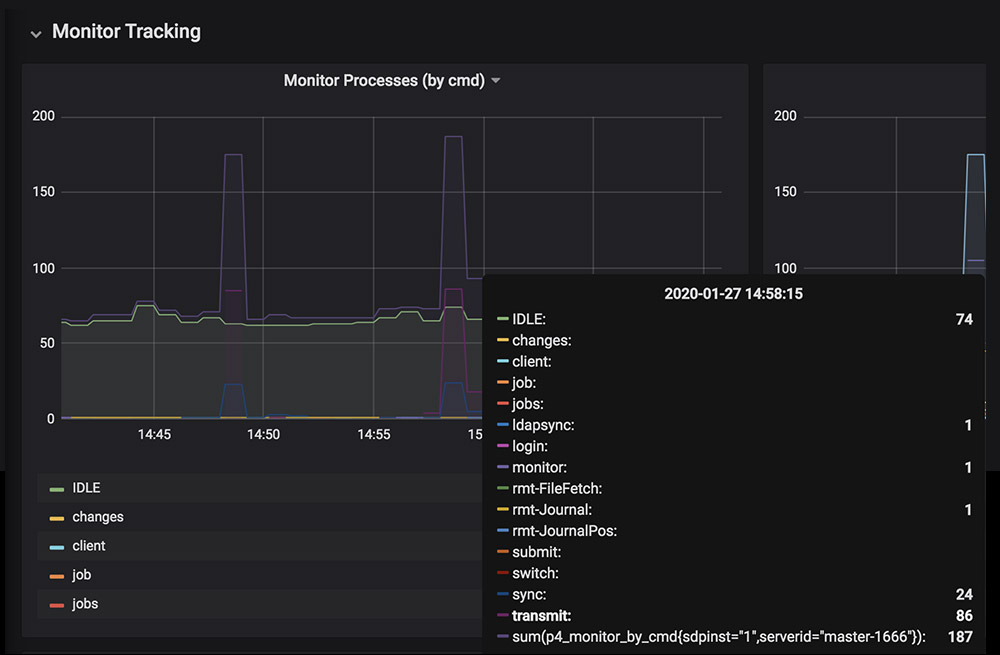

This Grafana dashboard displays usage by command.

In this example, there are a couple of minor spikes that are due to sync commands. When parallel syncs are in use, you can see “transmit” commands. It is common to have regular small spikes in many organizations, particularly when automated build farms kick off.

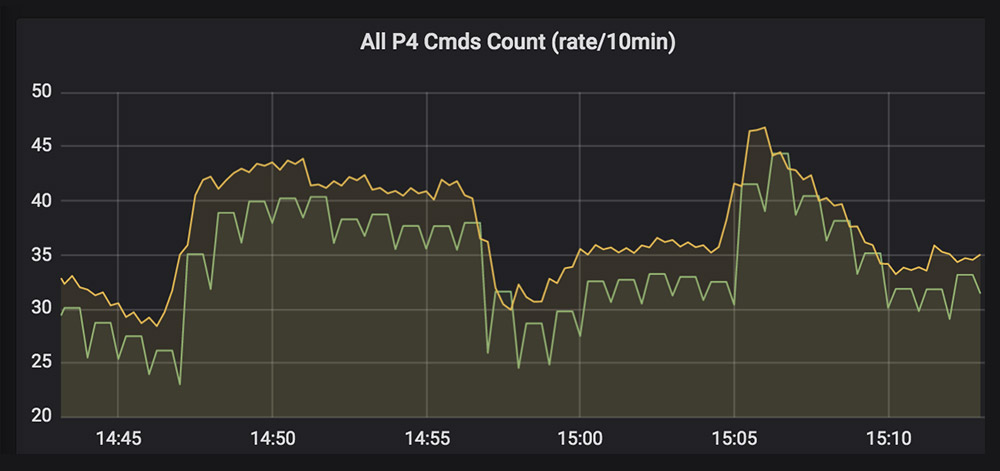

This Grafana dashboard displays the rate of commands being executed against the server.

In this example, you can see the rate of commands being executed against the server every ten minutes.

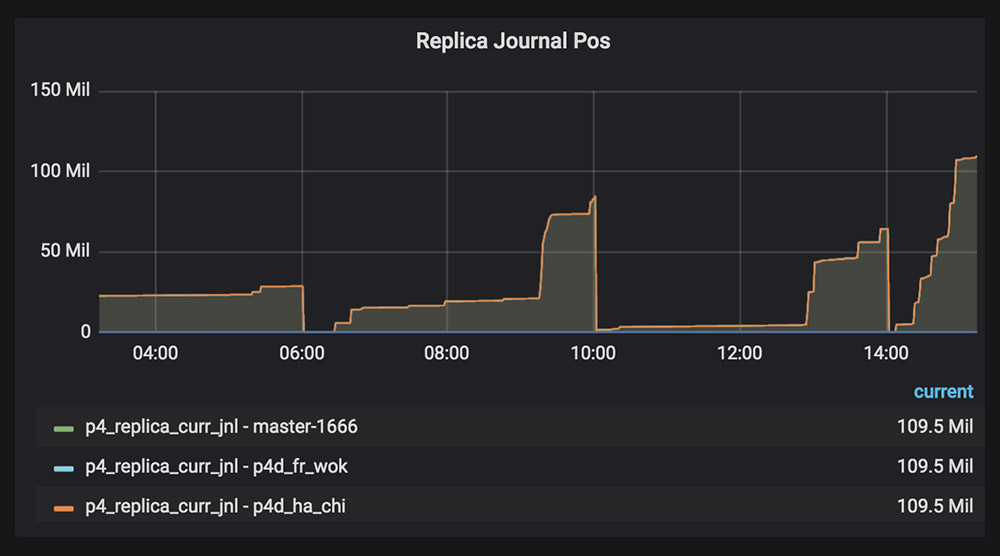

This Grafana dashboard displays replica server's statuses.

In this example, we see the replication status. The master and two replicas are continuously in sync, and the replication is not lagging behind.

Using Grafana Dashboards to Investigate Possible Problems

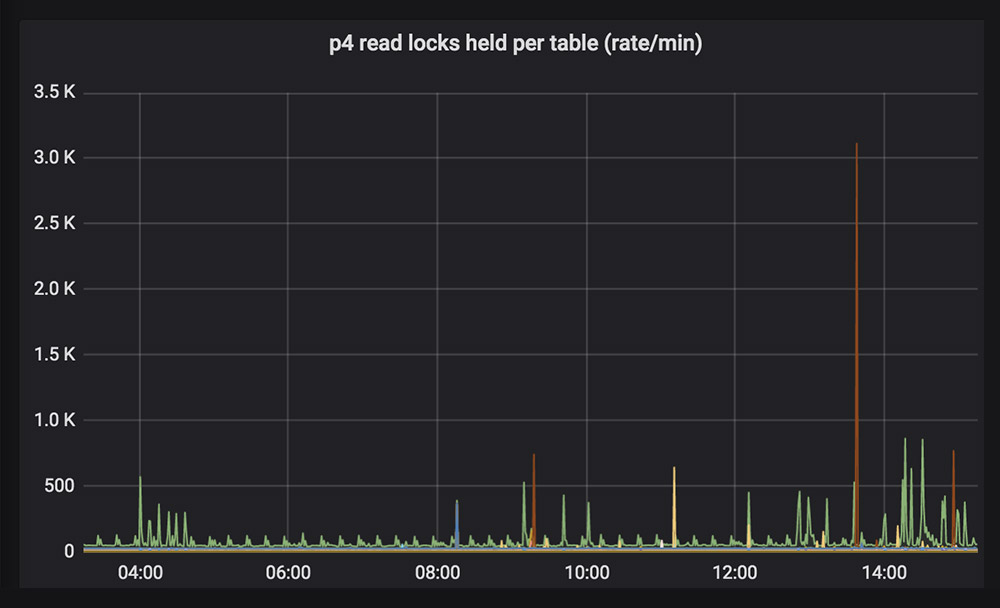

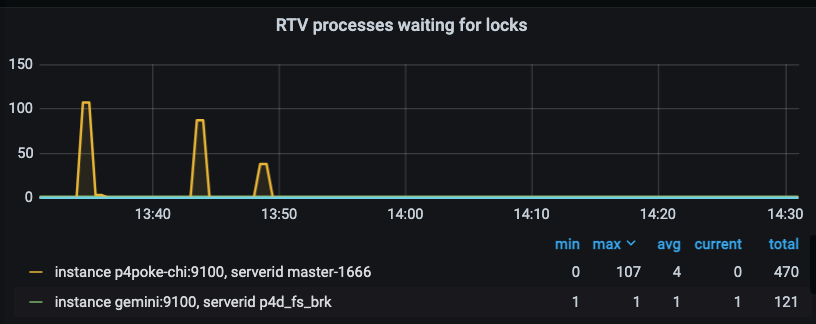

When you see a spike or dip in usage, it may indicate a larger issue. When we look at the command usage, we can see a dramatic spike that it is out of the ordinary.

This Grafana dashboard displays locks held per table.

To zoom in on the spike, simply click and drag over a small time period to see which table is involved.

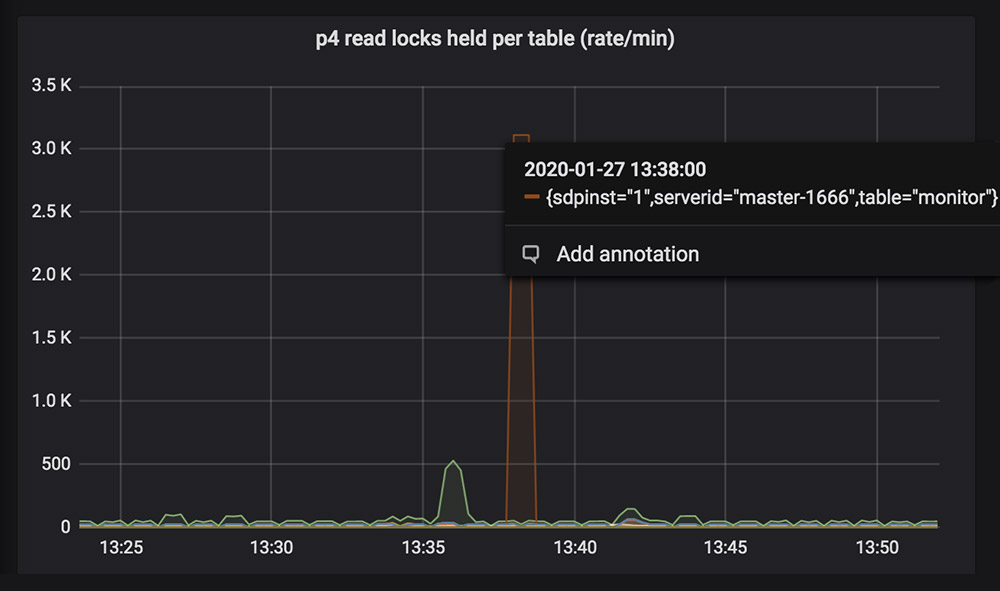

This Grafana dashboard displays locks held per table, but is zoomed in on a specific time period.

In this instance, it is not concerning because it involves the monitor table over a short period of time . If it was a different table or if it the spike continued over a longer time, it might indicate that something should be investigated further.

Understanding Root Causes

Monitoring can show you a spike or a trend. But what it doesn’t tell you is why something is occurring. To find out, you would typically look in the logs to see what commands are being executed and by whom. Or you might examine the server load or network status using standard operating system commands.

You can search through Helix Core logs on the server. They are either in text file format, CSV, or both. Or there are several applications that can be used to aid in this investigation. For example, applications such as Elastic Stack, Splunk, Greylog, Datadog, and more, can fully index your logs and make them faster to search through. They provide powerful query and analysis options. Some even come with their own dashboards.

Challenges Managing Helix Core Logs

Logs contain a lot of information that helps analyze problems. The downside is that logs can be quite large. You need to prune logs and determine how long to keep them around. If you are not careful, this can create another, potentially expensive, problem. You do not want to spend resources storing logs that no one looks at!

In the future, we plan to look at more details for integrating Helix Core with Elastic Stack for real time log analysis.

Server Monitoring For Future Development

Implementing server monitoring is a vital step towards scaling your infrastructure. You can quickly determine where you need to add more resources, and it gives you what every business decision needs more of –– time.

Set up your teams for success with Helix Core + Prometheus monitoring + Grafana dashboards.
